Voice-Control Light Demo - Quick Start Guide#

This guide provides instructions for quickly demonstrating the Voice-Control Light application using pre-built binaries. This demo allows you to control an LED on an EFR32xG24 Dev Kit (BRD2601B Rev A01) by speaking "on" or "off" into a microphone.

• Hardware: EFR32xG24 Dev Kit Board (BRD2601B Rev A01)

• Software: Simplicity Studio (SiSDK 2024.12 or later)

Steps#

1. Open Simplicity Studio: Launch Simplicity Studio (using the rocket button in the top right corner).

2. Connect your Device: Connect your EFR32xG24 Dev Kit to your computer. Wait 5-10 seconds for the device to be recognized by Simplicity Studio.

   • Troubleshooting: If your device isn't recognized, click the "refresh" button in the Debug Adapters sub-window (usually located at the bottom left).



3. Select your Device: Choose your connected device from the Connected Devices dropdown and click Start.

4. Navigate to the Demo: Go to Example Projects & Demos. In the left-hand context menu, scroll down to Capability and select Machine Learning.

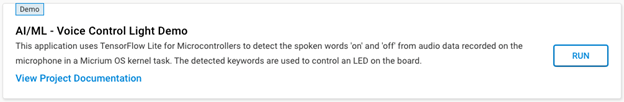

5. Run the Demo: Find the Voice Control Light demo and click Run. This will flash the pre-built binary onto your board.
