Z-Wave Device Configuration Basics#

NOTE: This section replaces APL13298: Z-Wave Device Configuration Basics. Further updates to this application note will be provided here.

Best practice guidelines for supporting configuration parameters.

Z-Wave enables a variety of monitoring and control applications such as sensors can send data to a gateway and Wall controllers reporting button presses to a scene controller.

There may be certain needs in a specific customer deployment which necessitates configuration of parameters, e.g. how often a sensor sends updated information.

It is a firm requirement that any device operates in a meaningful way in its factory default state. For interoperability purposes it is further a requirement that all functionality that can be controlled via standardized Z-Wave application command classes also support such command classes.

The Configuration Command Class, version 3 (and later) allows an installer tool to request relevant information for configuration parameters of a given device.

A device may advertise the complete list of supported configuration parameters and for each parameter, it is possible to advertise:

  • Parameter name (Configuration Name Report)

  • Intended use (Configuration Info Report)

  • Parameter type (Configuration Properties Report)

  • Parameter ranges (Configuration Properties Report)

The information allows a device to provide information electronically which would otherwise only be available in the product documentation.

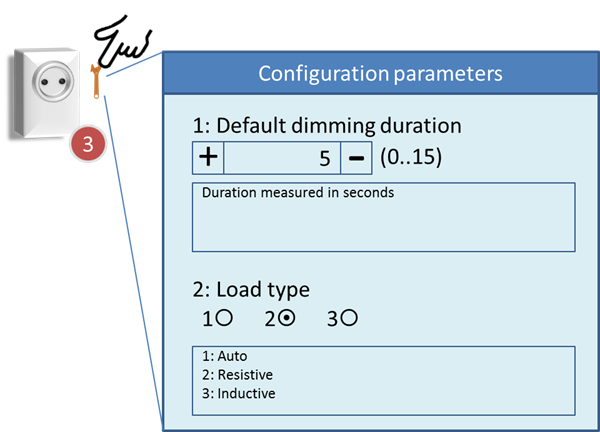

This example shows how the gateway may show configuration parameters in the properties page for a light dimmer.


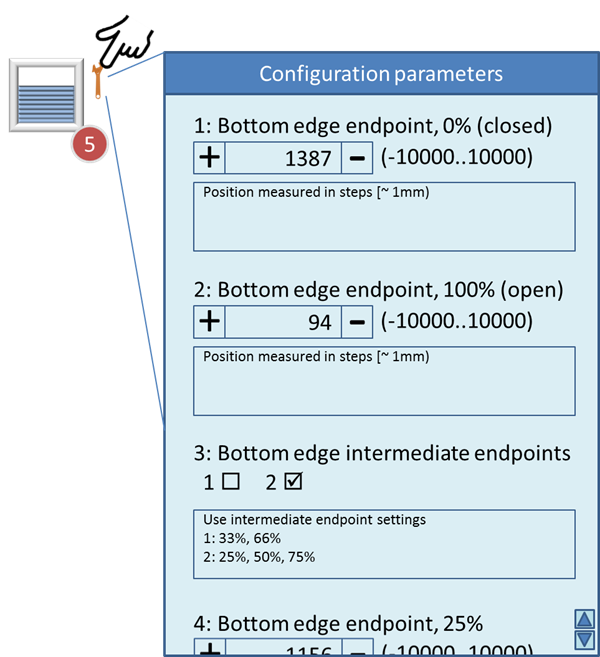

This example shows how the gateway may show configuration parameters in the properties page for a window covering device.

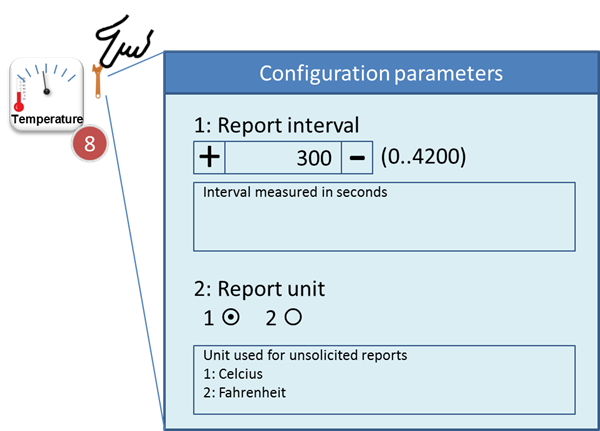

This example shows how the gateway may show configuration parameters in the properties page for a temperature sensor.
