Flash Initialization and Configuration#

Flash initialization on the SiWx917 platform is performed entirely by the Network Wireless Processor (NWP) Bootloader. Unlike peripherals such as Inter-Integrated Circuit (I²C), flash cannot be configured dynamically at runtime through application programming interfaces (APIs). Instead, the Bootloader reads configuration data from one-time programmable (OTP) memory or from a Master Boot Record (MBR) stored in external flash memory.

This guide describes the initialization sequence, MBR configuration, flash selection, and validation requirements.

Startup Sequence#

Step 1: OTP Memory Check#

  • The Bootloader reads OTP fields.

  • If OTP is empty, the Bootloader attempts to detect external flash by reading the MBR in serial peripheral interface (SPI) mode.

Step 2: Flash Detection#

The Bootloader:

  1. Attempts to read the first byte in SPI mode by iterating through each Quad Serial Peripheral Interface (QSPI) pinset.

  2. Reads the first byte from the flash device.

  3. Confirms flash presence if the magic value matches.

Step 3: Primary MBR#

The Bootloader reads the primary MBR in SPI mode. This part of the MBR provides the following information:

  • Flash size

  • Flash type

  • Read, write, and erase command opcodes, as defined in the flash vendor data sheet

  • Dummy cycles

  • QSPI mode configuration

Step 4: Configure the QSPI Interface#

The Bootloader applies the following QSPI settings using the values from the MBR:

  • Instruction mode

  • Address mode

  • Data mode

  • Dummy cycles

  • Continuous read

Step 5: Apply System Configuration#

The Bootloader:

  • Applies QSPI settings

  • Sets up the memory layout

  • Loads the firmware updater or application image

Flash Configuration via MBR#

There is no runtime API to configure flash memory.

Flash configuration must be defined in the MBR binary before boot. Silicon Labs provides MBRs for supported devices (Macronix, GigaDevice, XMC). For unsupported devices, you must extend the MBR.

Flash Selection#

When you select a flash device, ensure that:

  • Data sheet commands match MBR fields

  • The pinset used on hardware matches the MBR

  • The flash size value is correct

  • Memory protection features are compatible

Parameters to Validate#

Basic Commands#

Field

Description

Example

read_cmd

QSPI read

0x0B

wr_cmd

Page program

0x02

block_erase_cmd

64 KB erase

0xD8

chip_erase_cmd

Full erase

0xC7

sector_erase_cmd

4 KB erase

0x20

status_reg_write_cmd

Status register write

0x01

status_reg_read_cmd

Status register read

0x05

QSPI Configuration Fields#

Key fields include:

  • inst_mode

  • addr_mode

  • data_mode

  • dummy_mode

  • prefetch_en

  • continuous

  • no_of_dummy_bytes

  • flash_type

Control Flags and Memory Protection#

Required protection support includes:

  • 4 KB

  • 64 KB

  • 1 MB

Additional MBR Parameters#

Flash Type#

Vendor

Value

XMC

0xD

GigaDevice

0x8

Macronix

0x5

Flash Pinset#

Value

Mapping

Supported

0

GPIO_0_TO_5

Yes (Stacked flash)

1

GPIO_46_TO_51

Yes (External flash)

2

GPIO_52_TO_57

Yes (External flash)

Flash Size#

Size

Value

4 MB

0x20

8 MB

0x40

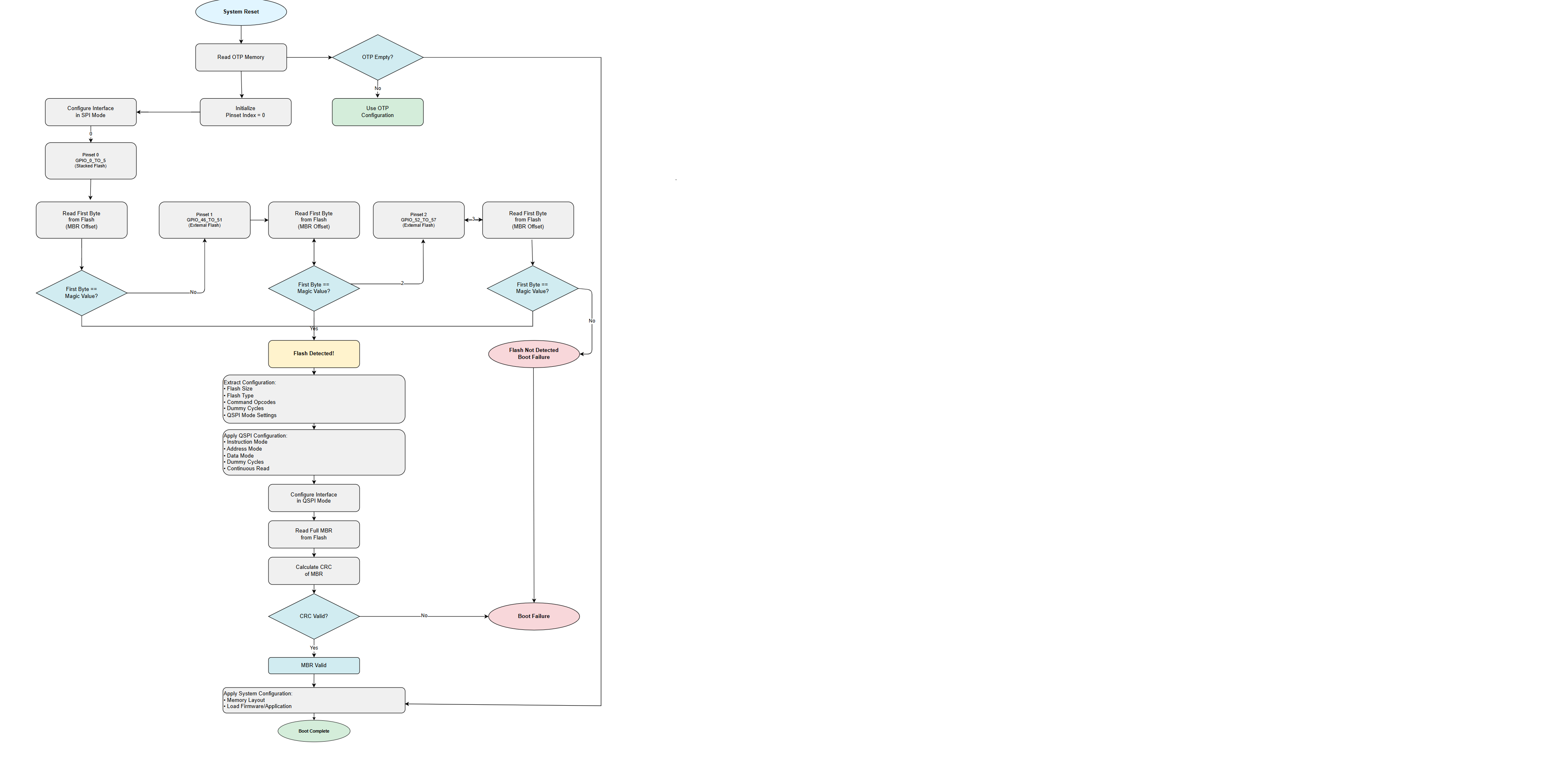

Flash Detection Flow Diagram#

Diagram of the Bootloader flash detection and MBR read sequenceDiagram of the Bootloader flash detection and MBR read sequence

User Checklist#

  1. Verify opcode compatibility.

  2. Confirm the flash vendor ID.

  3. Validate pinset mapping.

  4. Confirm flash size support.

  5. Validate QSPI mode and dummy cycle configuration.

  6. Confirm memory protection compatibility.

  7. Program the updated MBR.

  8. Power-cycle the hardware to load the updated MBR.
