Test Plan Strategy#

This test plan is focused on the performance of the Multiprotocol RCP using mixed protocol traffic streams. The tests are run with both protocols on the same channel, and with both protocols on different channels to test Concurrent Listening.

Scenario	Devices	Notes	Illustrated Topology

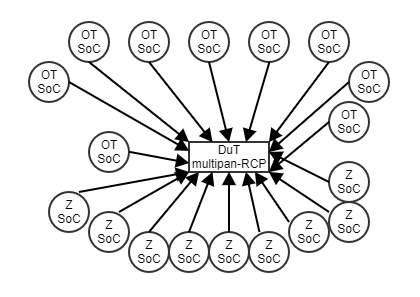

9x9 single channel	9 SoC Devices OT 9 Soc Devices Zigbee	Zigbee and OpenThread networks on the same channel.
9x9 dual channel	9 SoC Devices OT 9 Soc Devices Zigbee	Zigbee and OpenThread on different channels to test Concurrent Listening on the RCP.
Greater sizes (y)x(z)	(y) SoC Devices OT (z) Soc Devices Zigbee		The same setup as above but with more devices.

Scenario

Devices

Notes

Illustrated Topology

9x9 single channel

9 SoC Devices OT

9 Soc Devices Zigbee

Zigbee and OpenThread networks on the same channel.

9x9 dual channel

9 SoC Devices OT

9 Soc Devices Zigbee

Zigbee and OpenThread on different channels to test Concurrent Listening on the RCP.

Greater sizes

(y)x(z)

(y) SoC Devices OT

(z) Soc Devices Zigbee

The same setup as above but with more devices.

The SOC devices send periodic unicast traffic to the DuT (Device under Test) with staggered start times. We measure the reliability and latency for various packet sizes.
