Modifying an Endpoint#

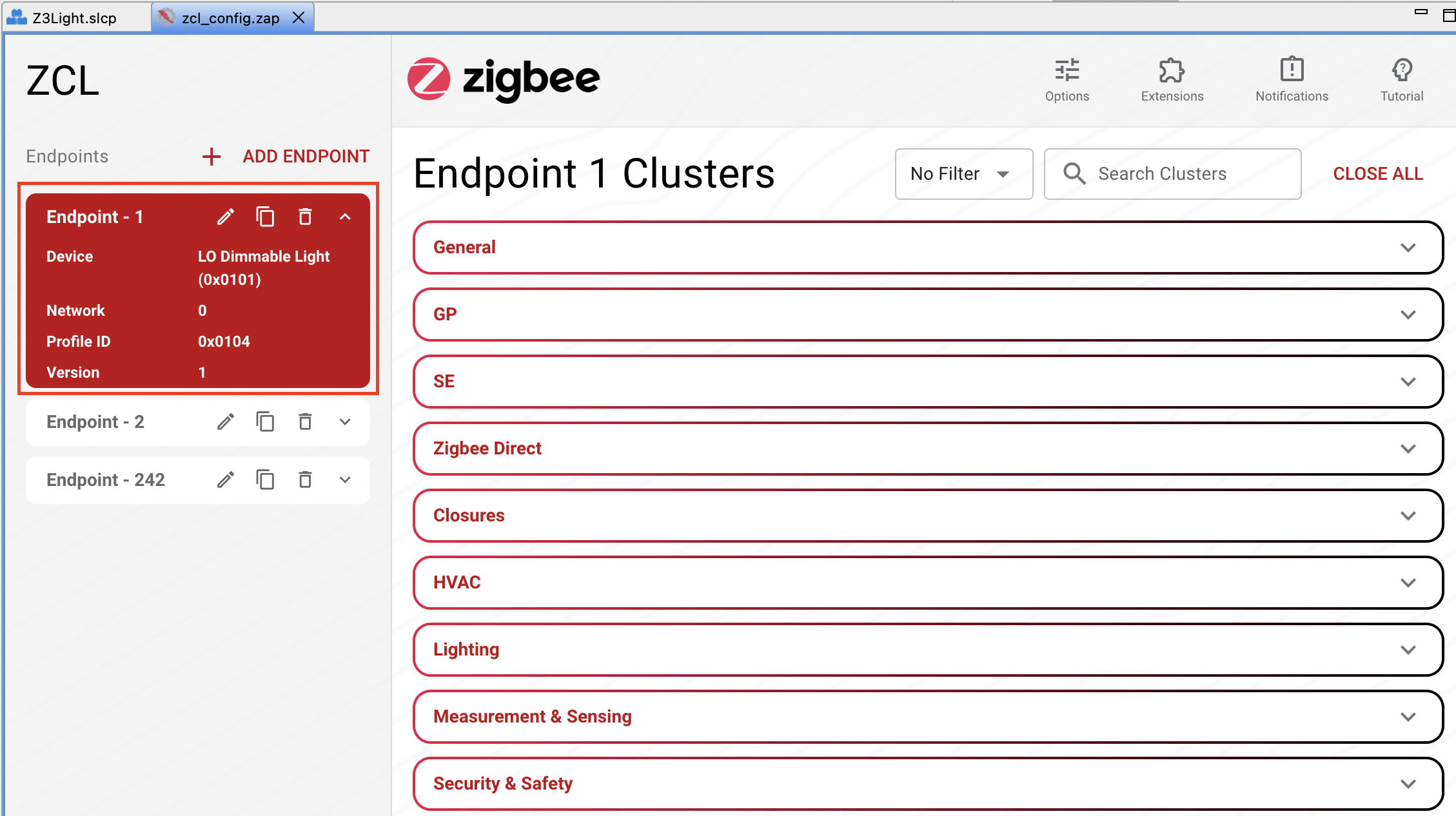

Select an endpoint to modify by clicking on the endpoint configuration on the left side of ZCL. The Endpoint highlighted with a blue border is the endpoint that you are in the process of modifying.

Select endpointSelect endpoint

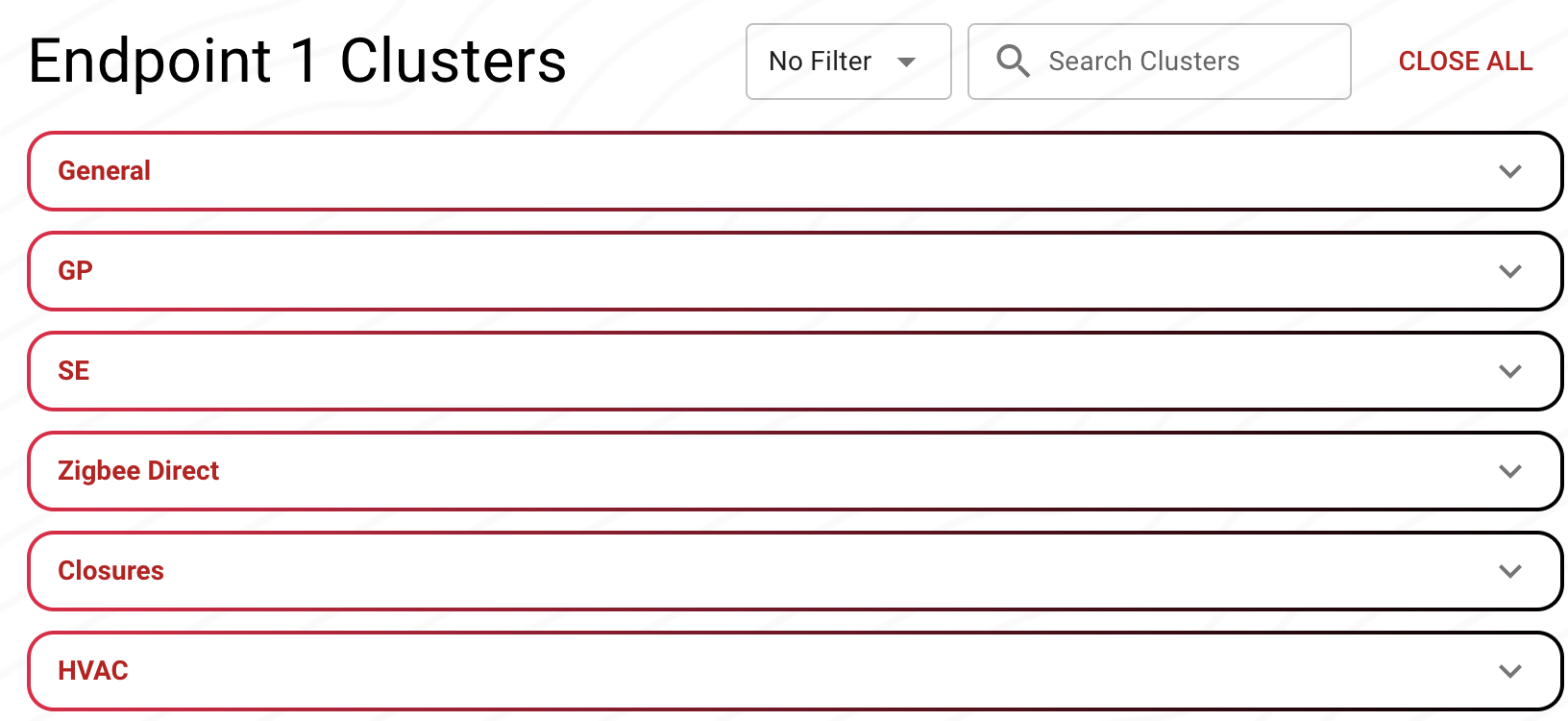

When the endpoint is highlighted, you can modify the clusters enabled on that endpoint in the cluster configuration editor on the right- side of ZCL.

Cluster configurationCluster configuration

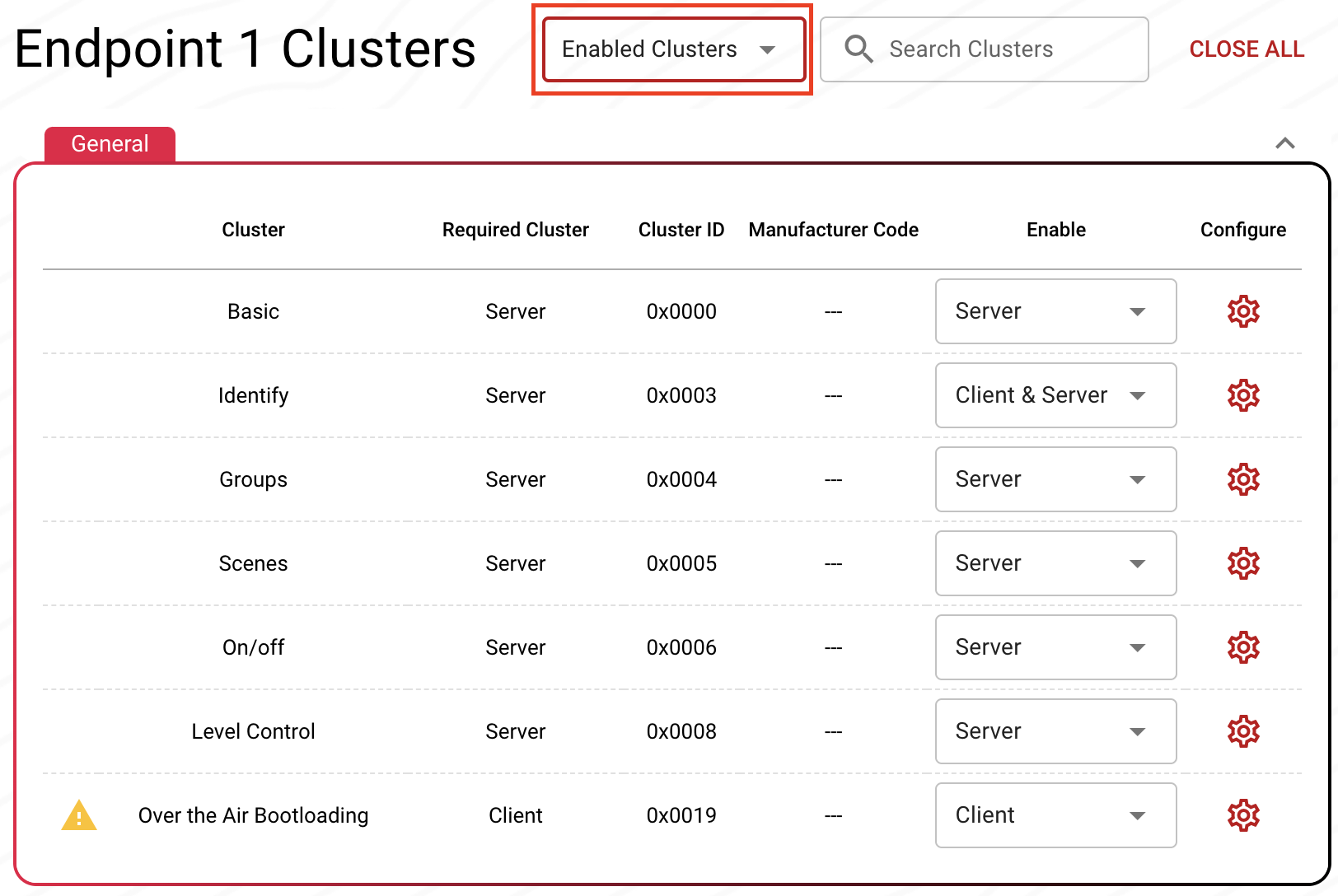

The dropdown tab highlighted below gives you options by which to view the clusters that are available or enabled on your endpoint. To see only clusters that are enabled on the endpoint, select the Enabled Clusters option.

Enabled Clusters viewEnabled Clusters view

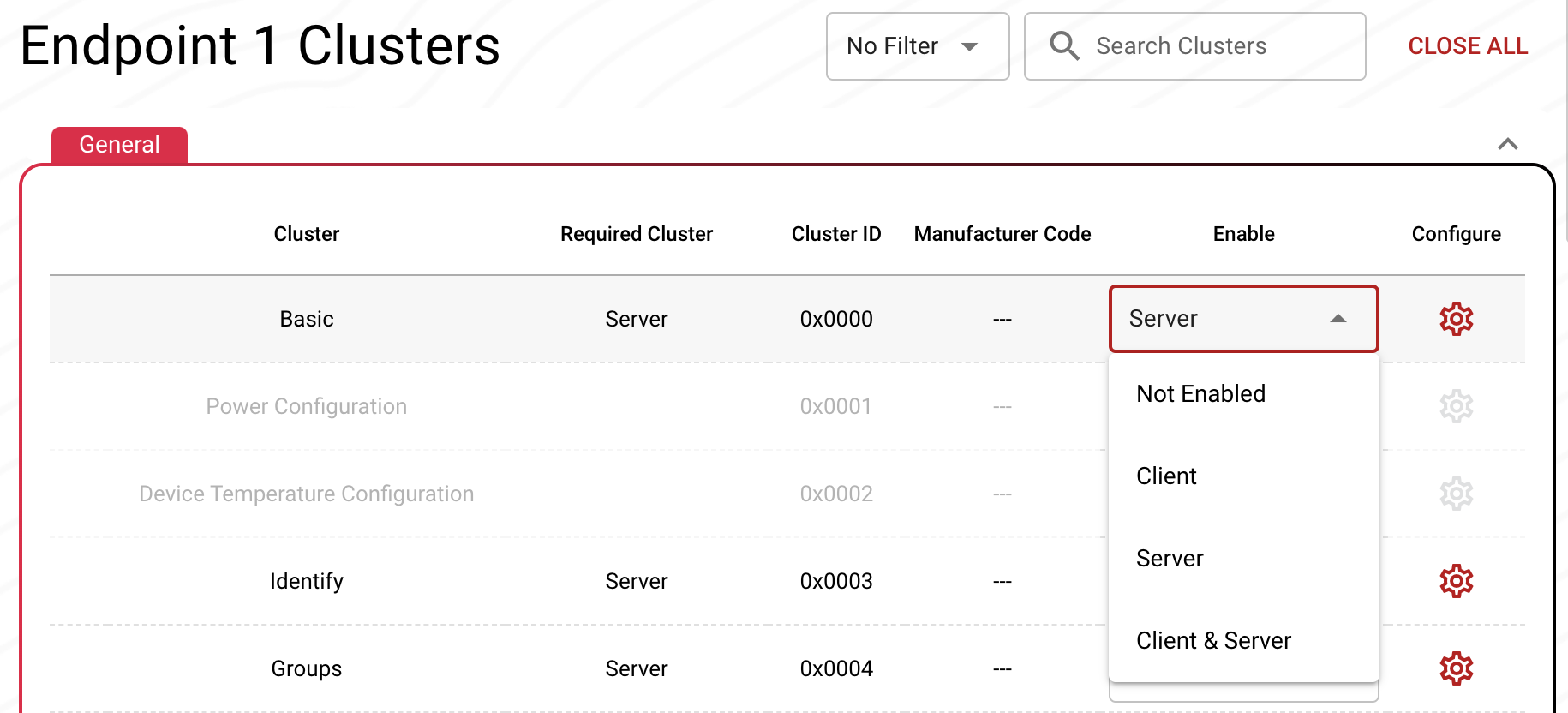

You can enable either the Client or Server (or both) sides of a cluster, by changing the Client and Server settings in the Enable column. If these settings are changed, you may be notified that components have been added to your project.

Enable Client & ServerEnable Client & Server

To remove the cluster entirely from the configuration, select Not Enabled in the Enable menu.
