Hardware and Setup#

This page describes the supported Silicon Labs boards, reference hardware for Aliro reader development, and how to install the Aliro extension in Simplicity Studio 6.

Supported Boards#

Aliro example projects target EFR32MG24 and EFR32MG26 Series 2 wireless MCUs. The Aliro extension templates are compatible with the development boards listed in this section. To build for a board that is not listed here, create the project in Simplicity Studio and select your target board during project configuration.

Note: BRD4187C on the Wireless Starter Kit (WSTK) is the primary reference board used in the Getting Started demos and pin-map examples on this page.

MG24 Boards#

• BRD4186C / SLWSTK6006A / Wireless Starter Kit / 2.4 GHz @ 10 dBm

  • XG24-RB4186C

• BRD4187C / SLWSTK6006A / Wireless Starter Kit / 2.4 GHz @ 20 dBm

  • XG24-RB4187C

• BRD2601B / MG24 Explorer Kit

  • XG24-DK2601B

MG26 Boards#

• BRD4116A / 2.4 GHz @ 10 dBm

• BRD4117A / 2.4 GHz @ 20 dBm

• BRD4118A / 2.4 GHz @ 20 dBm

• BRD4120A

• BRD4121A

Reference Kit (Demos)#

The Getting Started walkthroughs use BRD4187C on a WSTK mainboard (BRD4002):

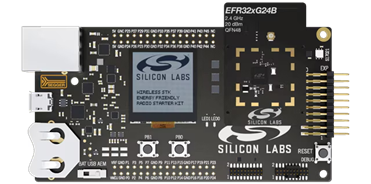

• EFR32xG24 Pro Kit (BRD4187C)

Reader Hardware#

ST Near Field Communication (NFC) Evaluation Boards#

The NFC-based examples and demos are designed to work with the ST Nucleo NFC boards from STMicroelectronics and a Silicon Labs custom-built header adapter for these boards. An example project can be modified to work with other NFC hardware.

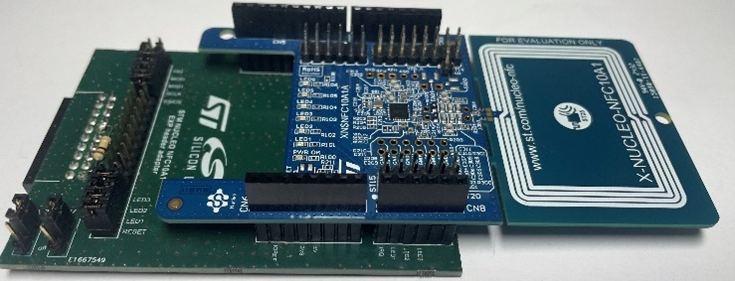

Connect one of these boards through the expansion (EXP) header adapter:

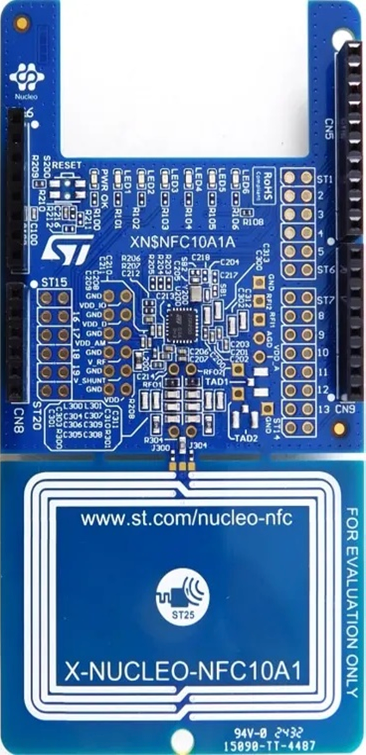

X-NUCLEO-NFC10A1 (ST25R200):

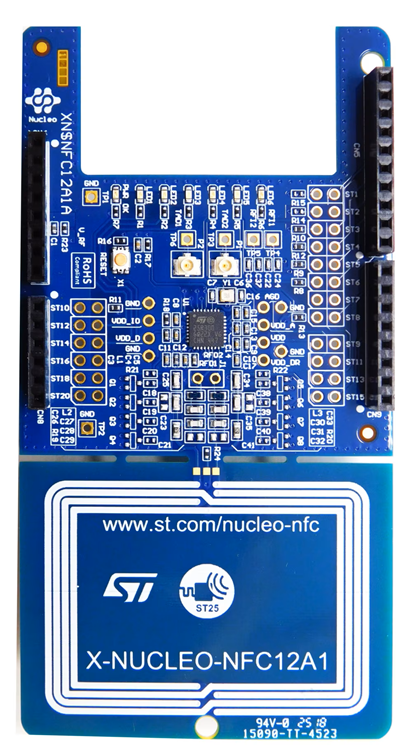

X-NUCLEO-NFC12A1 (ST25R300):

Aliro Minimal Reader and AliroMatterLock NFC projects include the st25r200 component by default. Switch to st25r300 if your hardware uses ST25R300.

Expansion (EXP) Header Adapter#

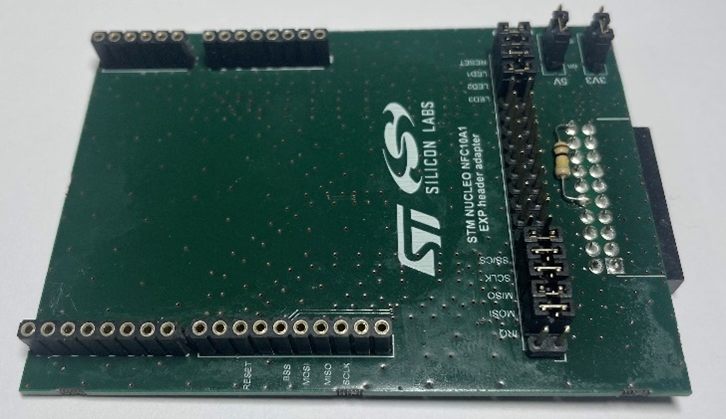

A custom adapter connects the ST Nucleo NFC board to the Silicon Labs expansion port. Contact the Sales team to obtain the adapter.

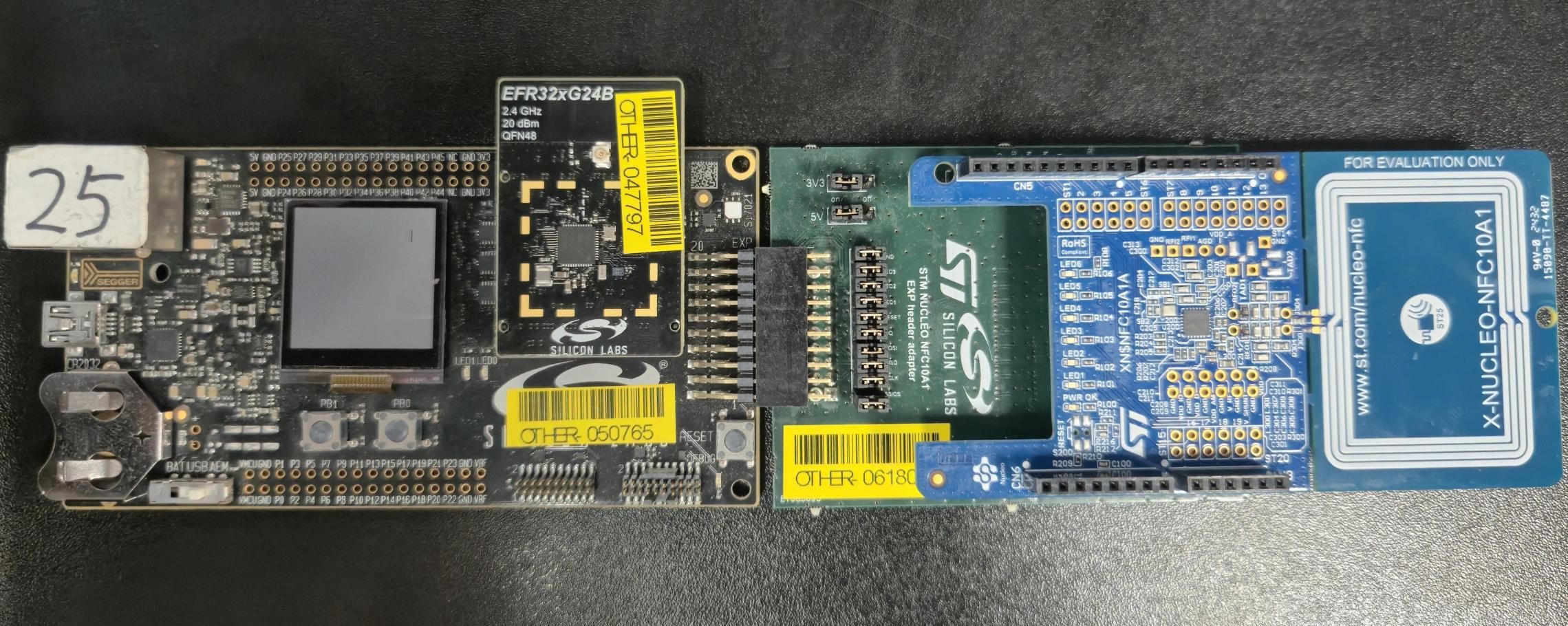

Assembled Reader#

Serial Peripheral Interface (SPI) Pin Map (EFR32MG24 ↔ ST25R)#

The following pin map applies to the BRD4187C MG24 reference board. Verify pin assignments when using a different supported board.

Optional Liquid Crystal Display (LCD) and NFC Pin Reroute#

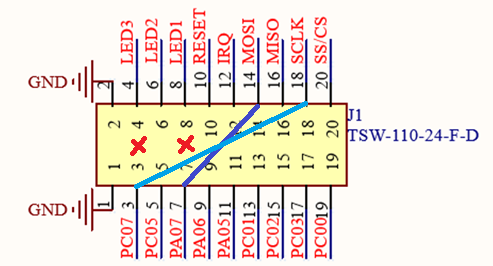

If the expansion (EXP) adapter routes pins that conflict with the WSTK LCD, reroute as shown:
