App Demos#

This release supports the following demos under Matter:

1. Light

2. Window covering

3. Lock

4. On Off Plug

5. Thermostat

6. Occupancy sensor

7. Contact sensor

8. Temperature sensor

9. Air Quality

10. Switch

11. EVSE

12. Oven

13. Range Hood

Light Demo#

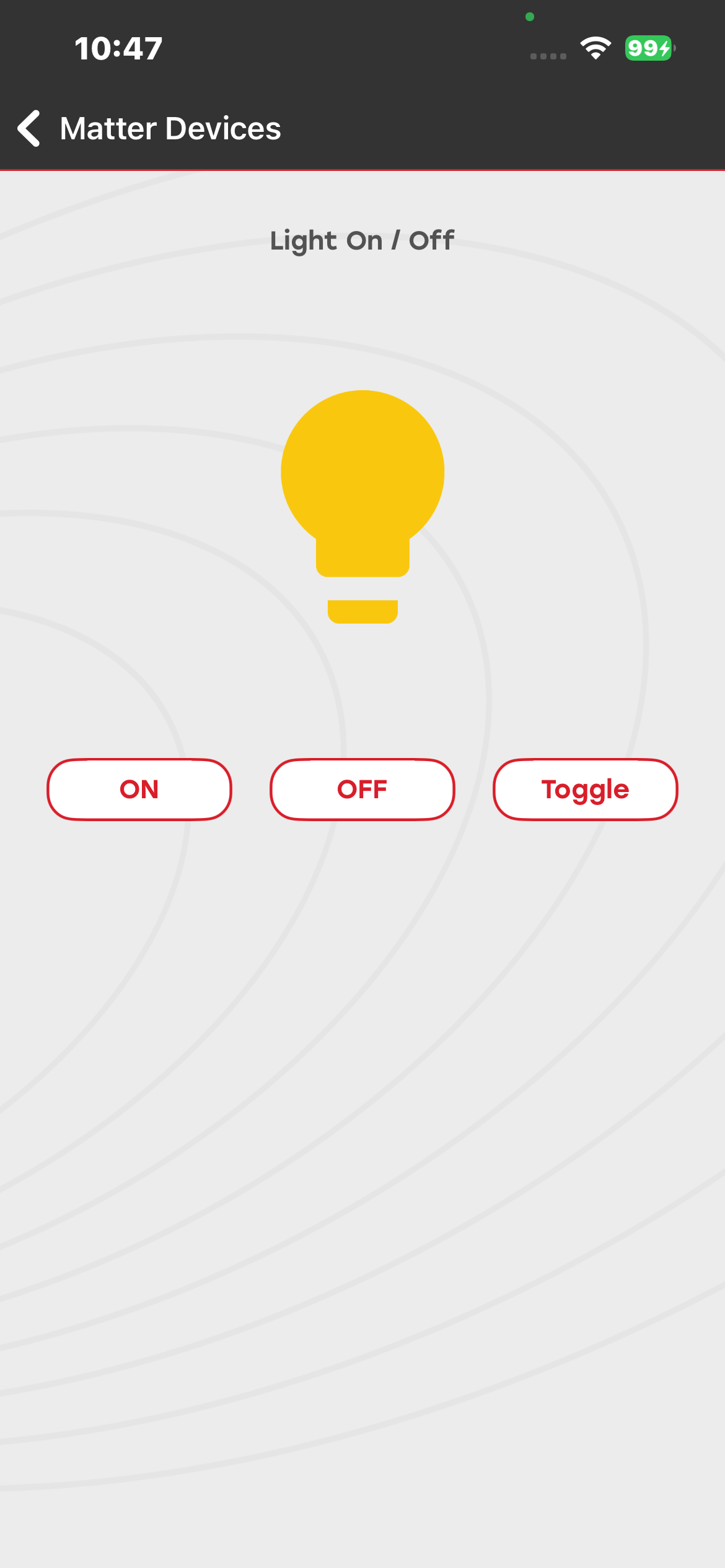

You can commission and control the Light Matter device by using the ON, OFF, or Toggle buttons. You can view the device status both on the dev board, as well as in the mobile application.

Firmware and Bootloader Details#

Thread:#

• Bootloader: Bootloader - SoC Internal Storage

• Firmware: Matter Thread - SoC Lighting FreeRTOS

Wi-Fi:#

• Firmware: Matter WiFi - SoC Lighting FreeRTOS

Window Covering Demo#

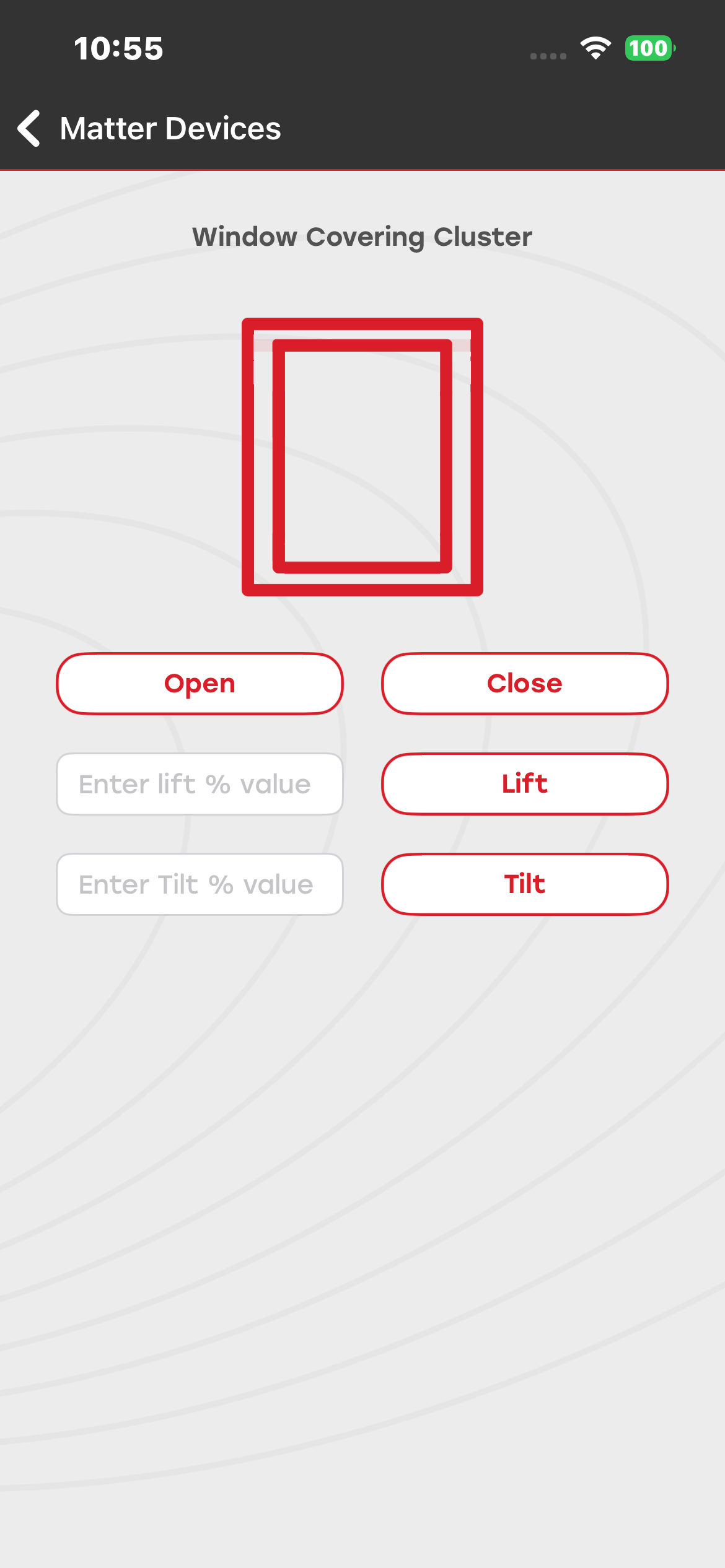

You can commission and control the Window Cover Matter device. By pressing the Open and Close button in the mobile application, you can operate and control the curtain. The device status is visible both on the physical device and in the mobile application.

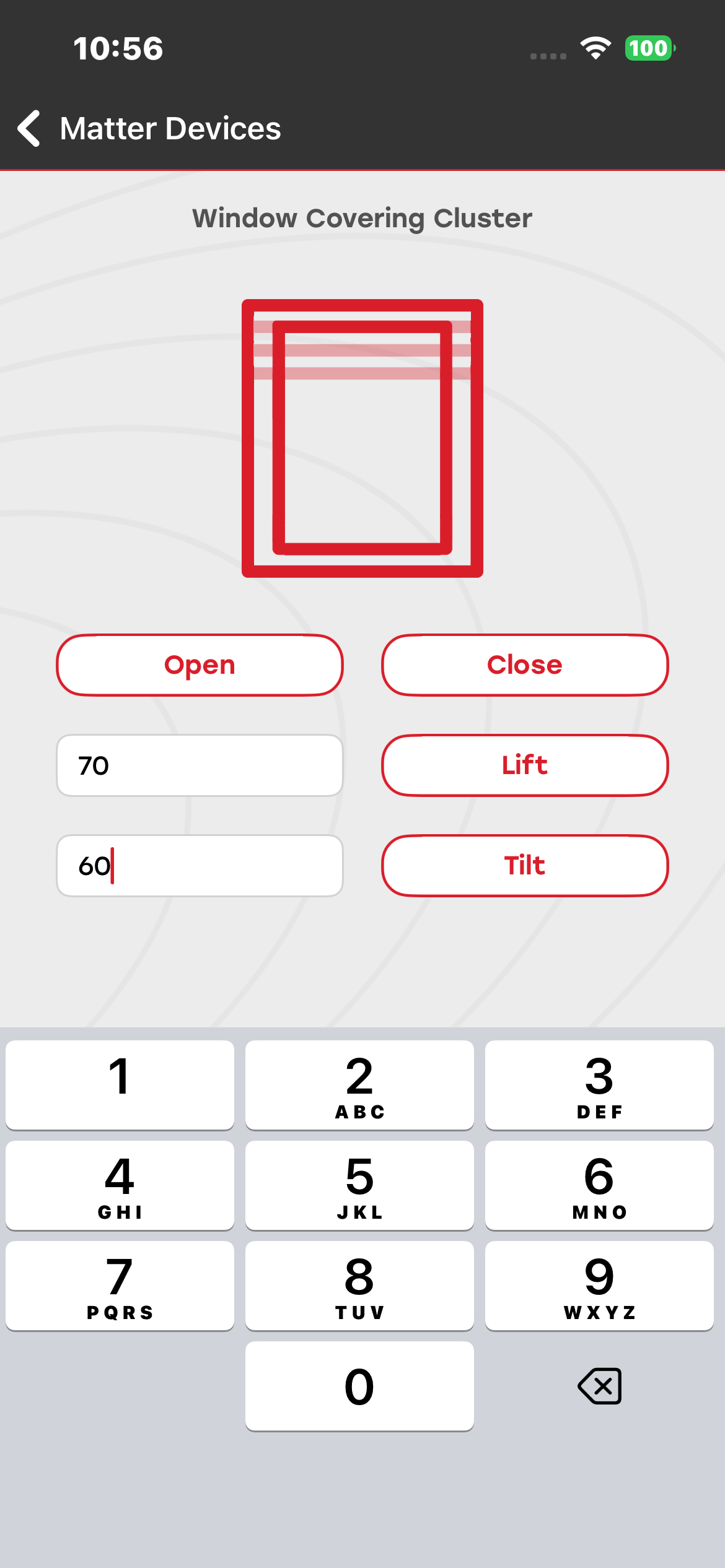

You can adjust the lift and tilt window covering using the percentage value measured from the bottom of the window.

Firmware and Bootloader Details#

Thread:#

• Bootloader: Bootloader - SoC Internal Storage

• Firmware: Matter Thread - SoC Window App FreeRTOS

Wi-Fi:#

• Firmware: Matter WiFi - SoC Window App FreeRTOS

Lock Demo#

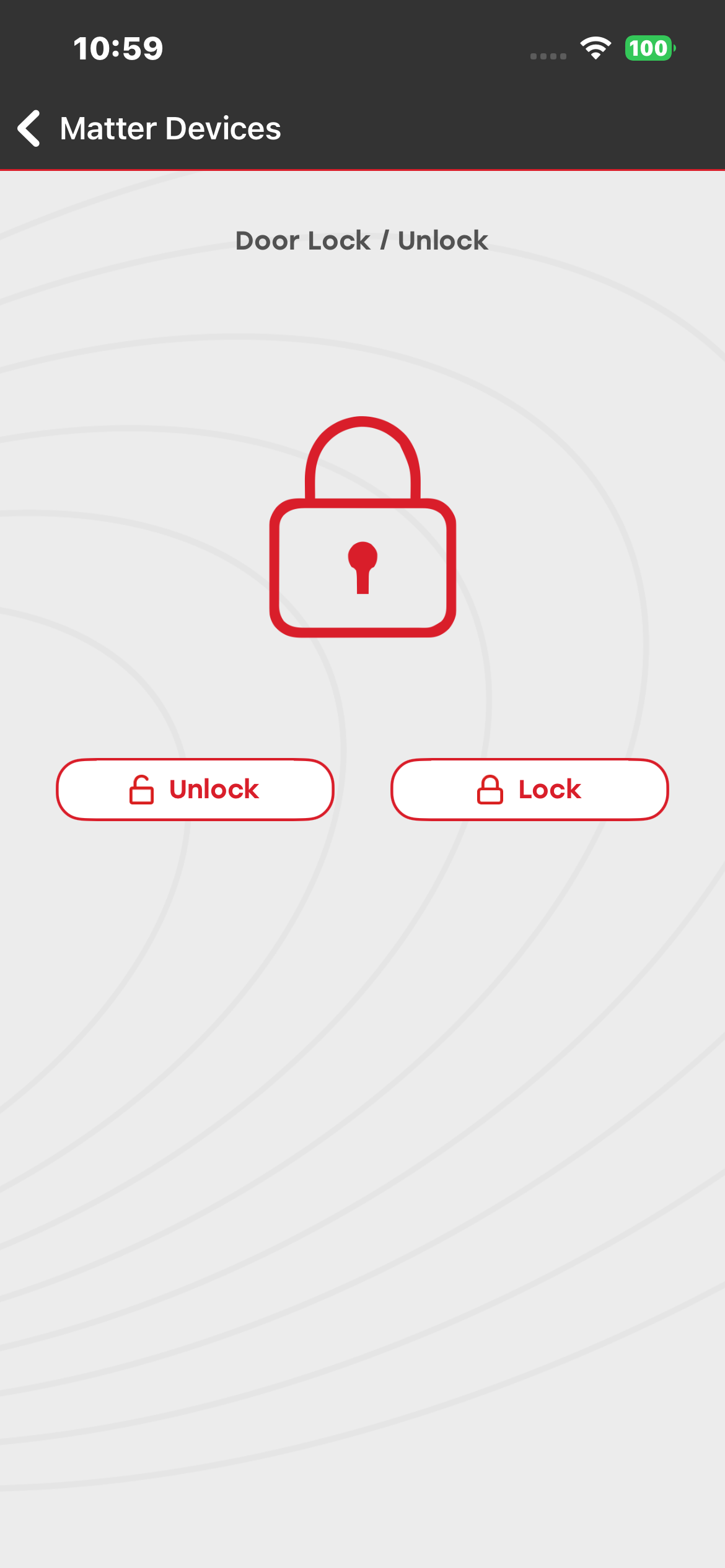

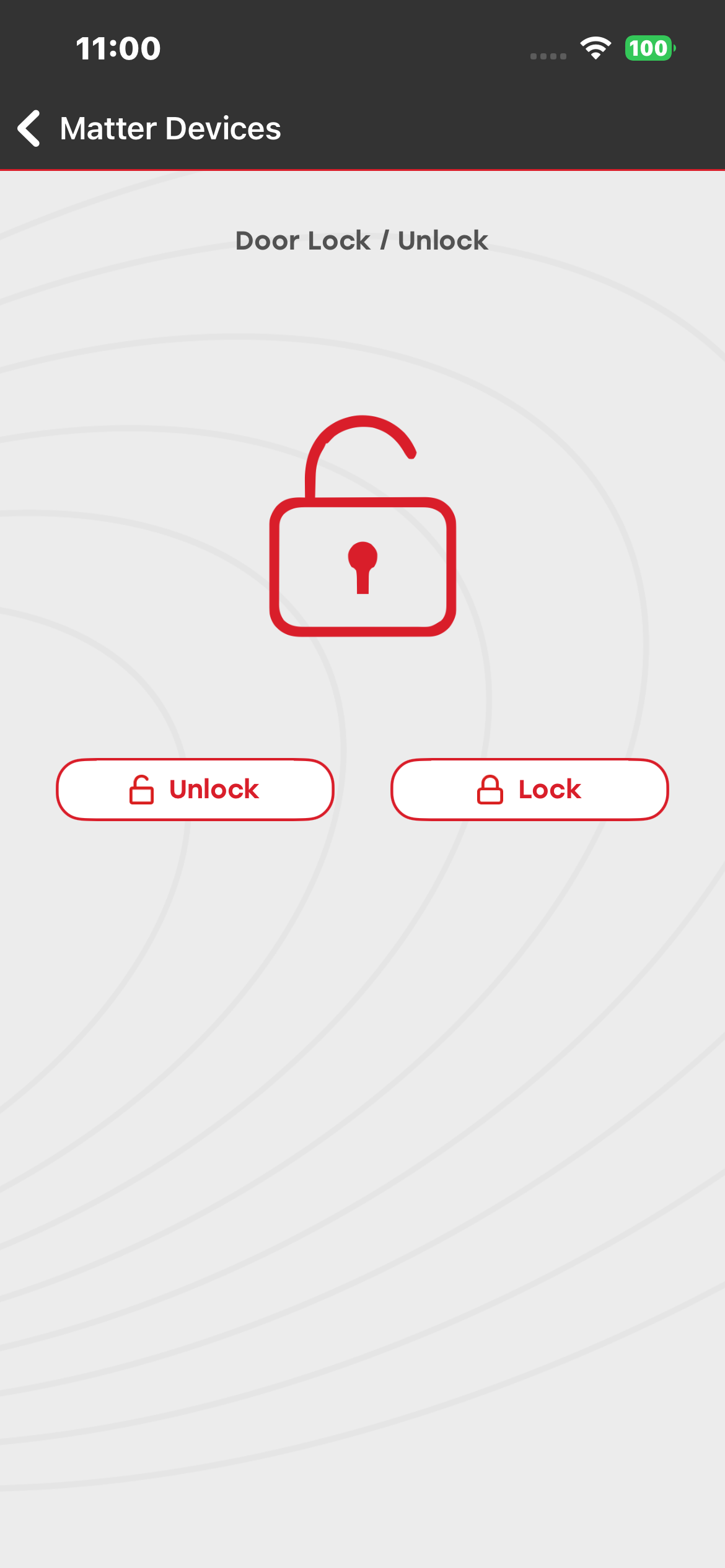

You can commission and control the Lock Matter device. You can Lock and Unlock the device using the mobile application and read the status of the lock from both the dev board and on the mobile application.

Firmware and Bootloader Details#

Thread:#

• Bootloader: Bootloader - SoC Internal Storage

• Firmware: Matter Thread - SoC Lock FreeRTOS

Wi-Fi:#

• Firmware: Matter WiFi - SoC Lock FreeRTOS

Onoff Plug Demo#

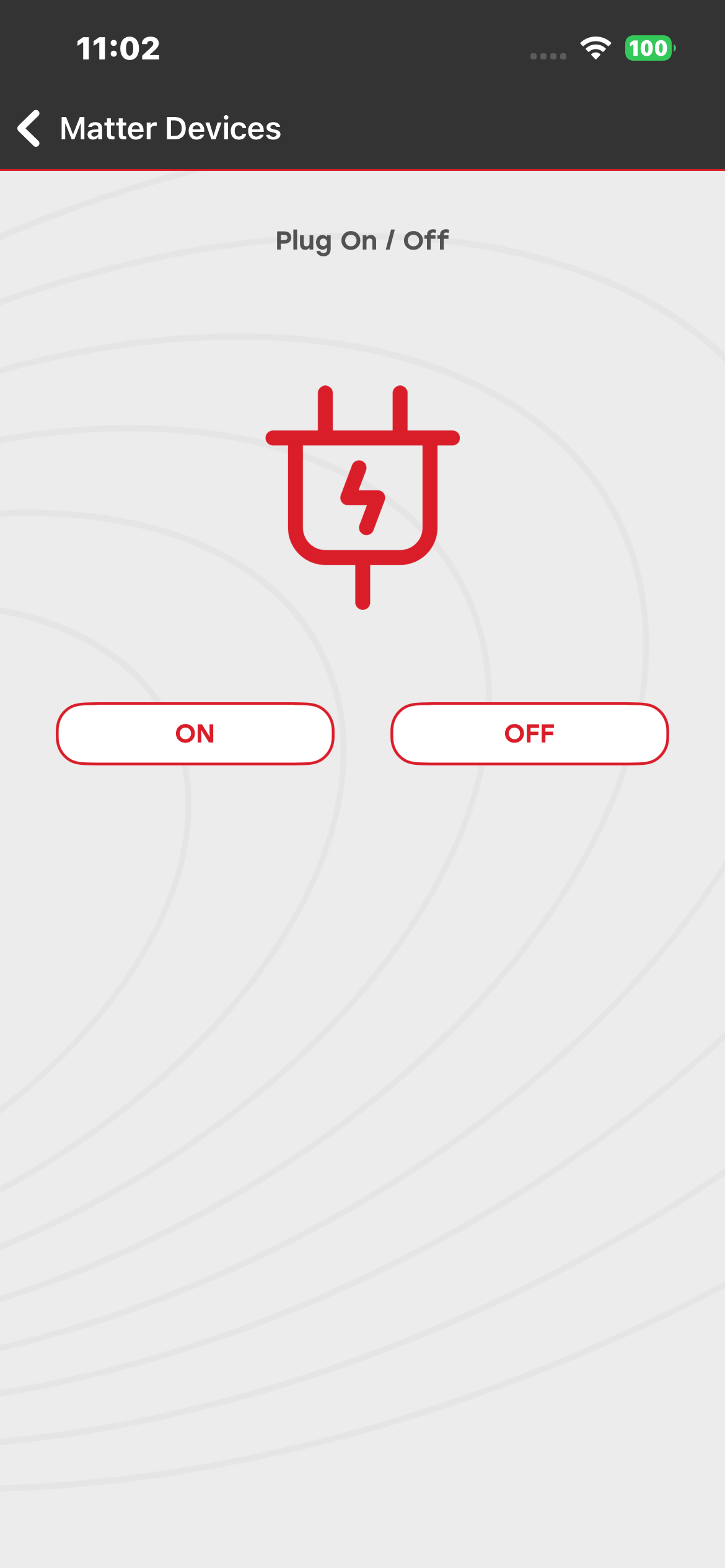

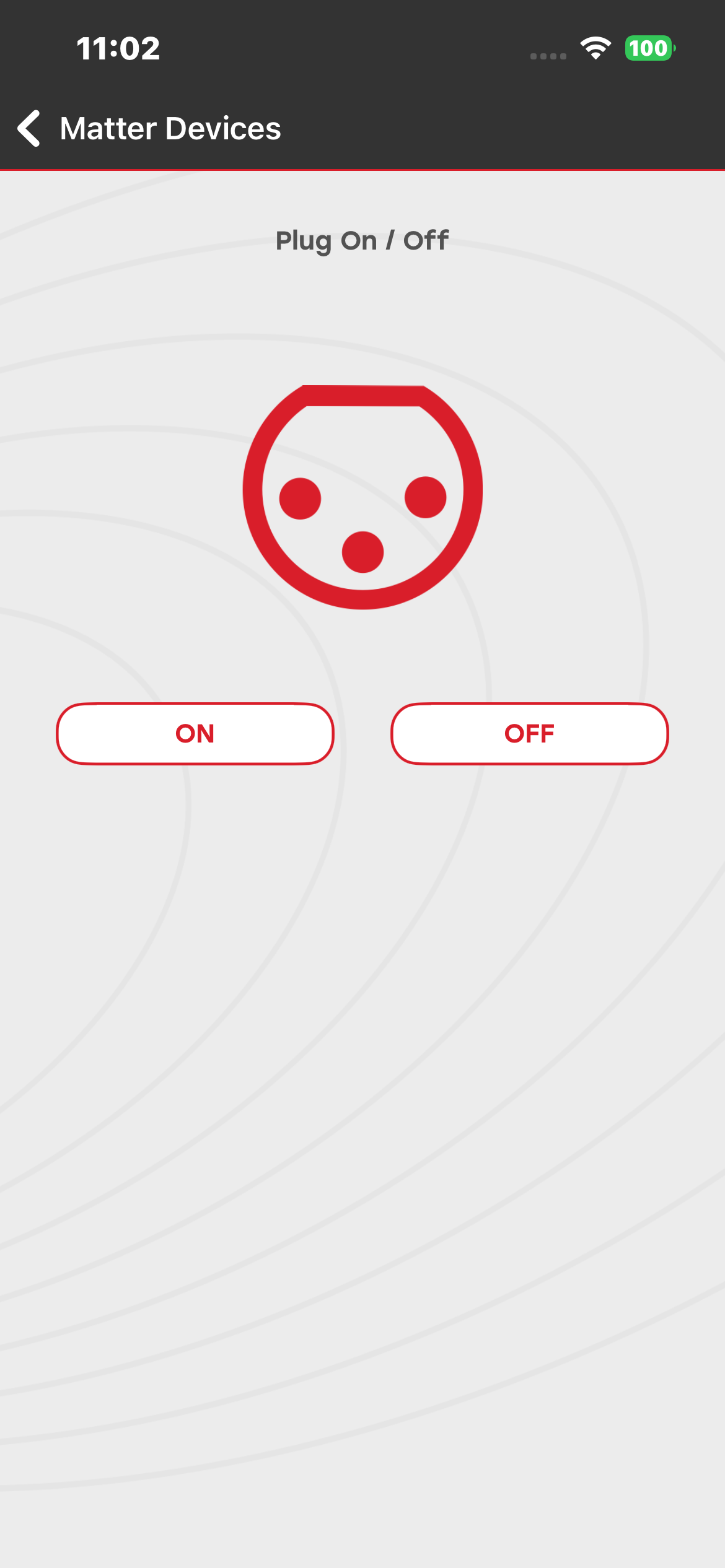

You can commission and control the Plug Matter device. You can turn it On and Off using the mobile application. The status of the Plug will be visible on both the dev board and on the mobile application.

Firmware and Bootloader Details#

Thread:#

• Bootloader: Bootloader - SoC Internal Storage

• Firmware: Matter Thread - SoC Onoff Plug FreeRTOS

Wi-Fi:#

• Firmware: Matter WiFi - SoC Onoff Plug FreeRTOS

Thermostat Demo#

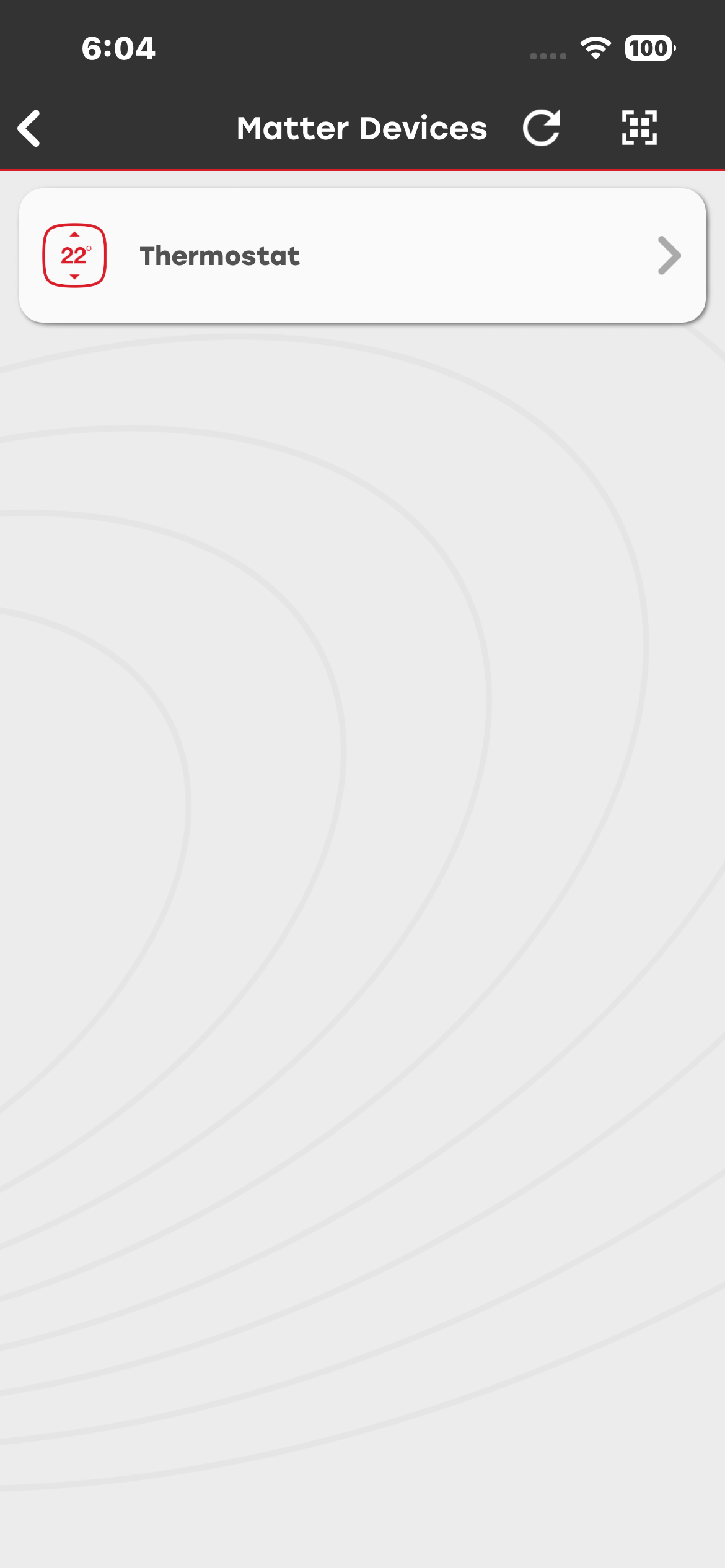

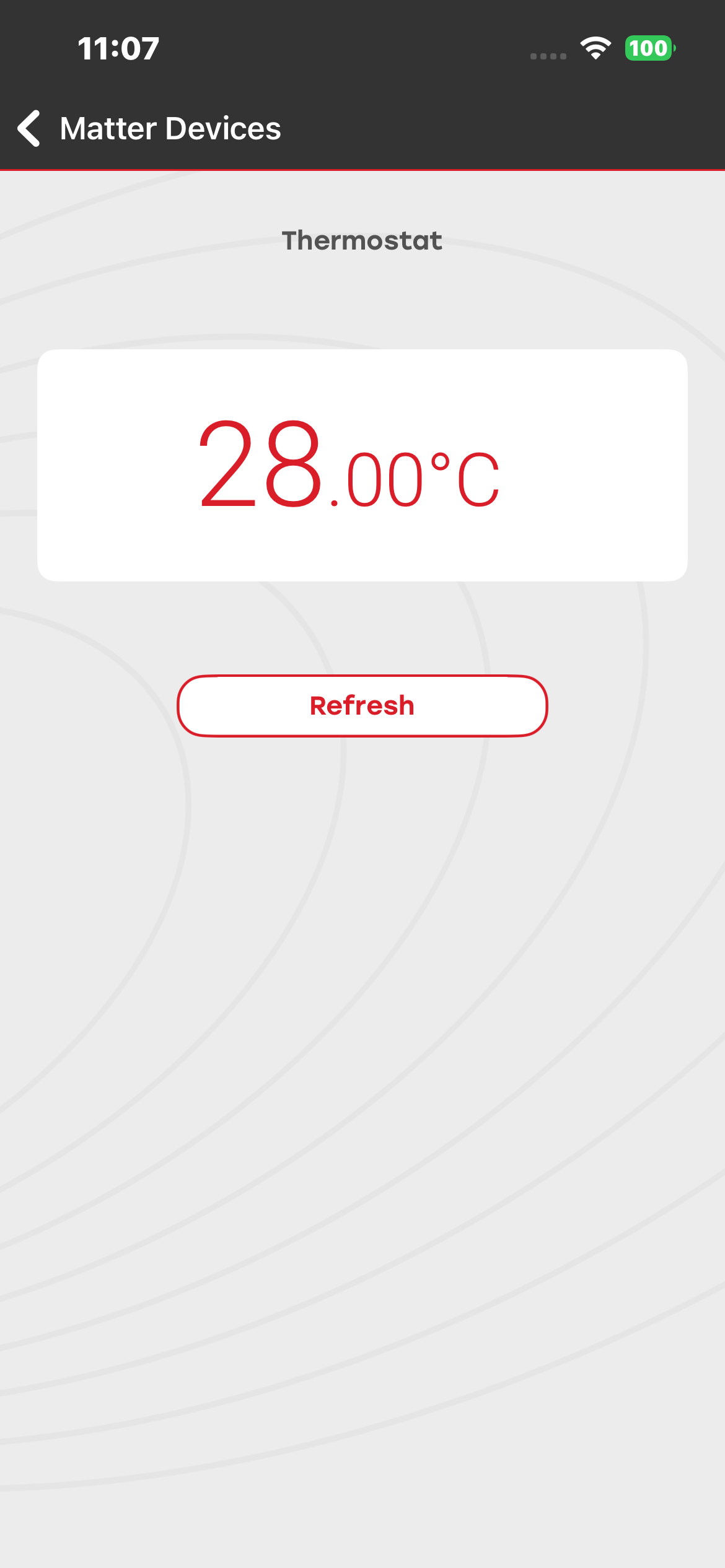

You can commission the Thermostat Matter device. You can read the current temperature on both the dev board and on the mobile application.

Firmware and Bootloader Details#

Thread:#

• Bootloader: Bootloader - SoC Internal Storage

• Firmware: Matter Thread - SoC Thermostat FreeRTOS

Wi-Fi:#

• Firmware: Matter WiFI- SoC Thermostat FreeRTOS

Occupancy Sensor#

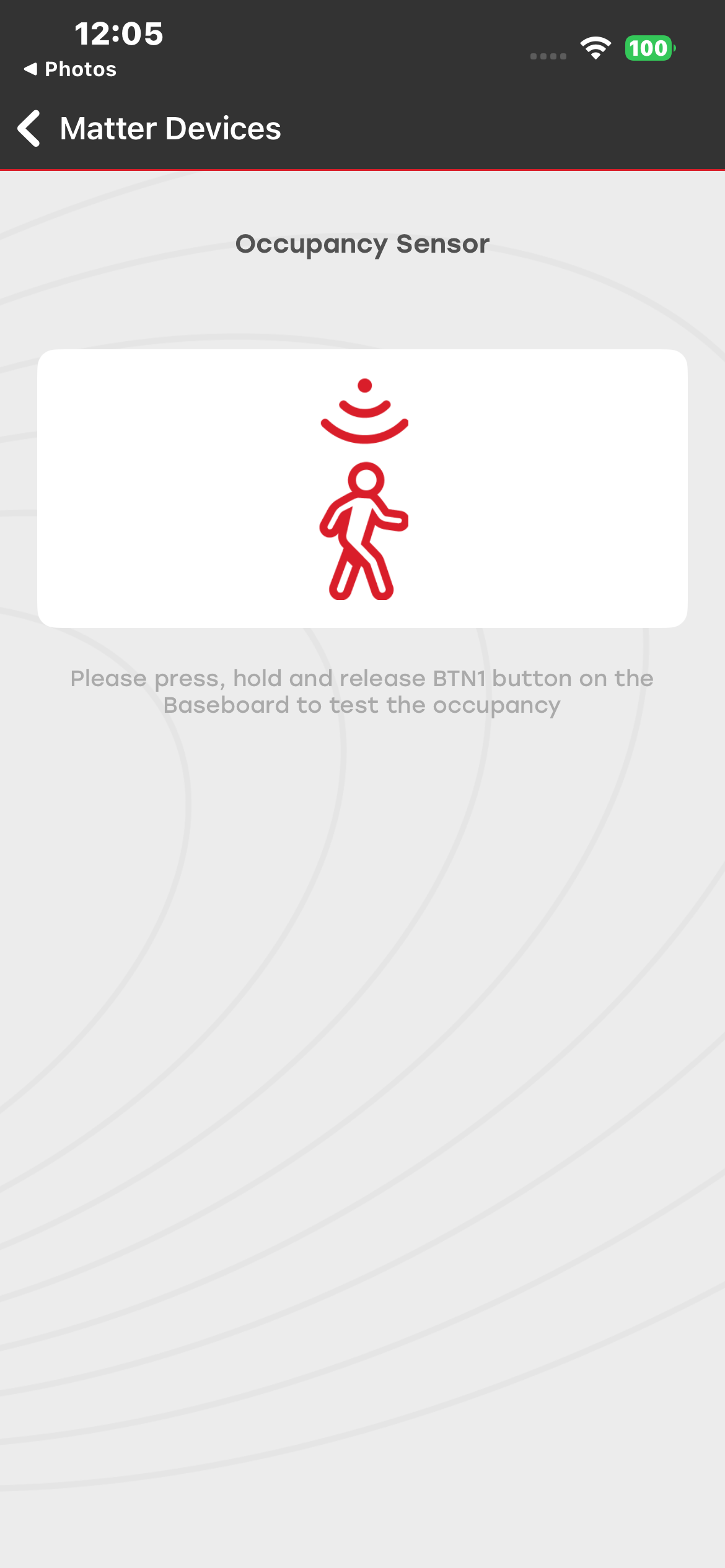

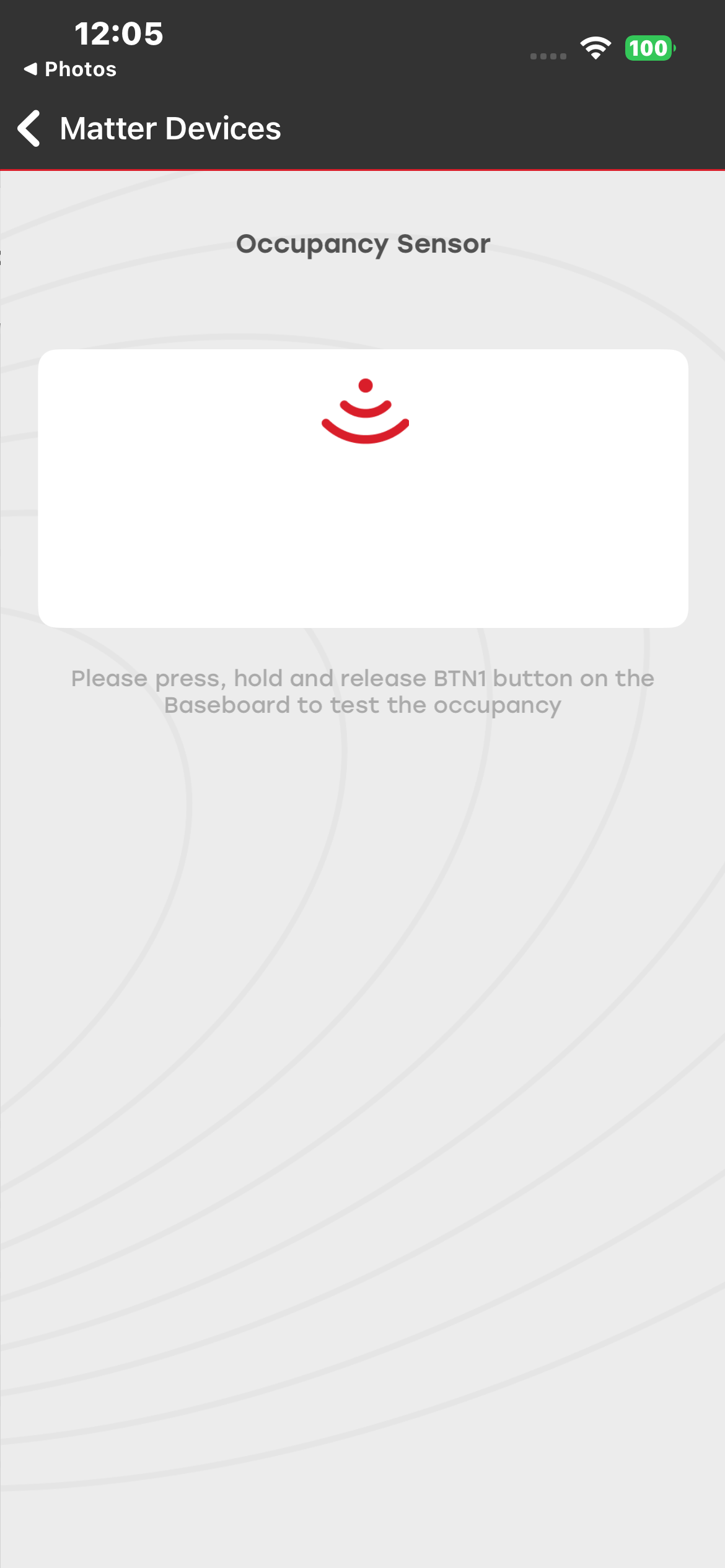

You can commission the Occupancy sensor Matter device and control it. You can long press the user button BTN1 on the dev board to change the status of the sensor. You can observe the device status on both the dev board and mobile application.

Firmware and Bootloader Details#

Thread:#

• Bootloader: Bootloader - SoC Internal Storage

• Firmware: Matter Thread - SoC Multi Sensor FreeRTOS

Wi-Fi:#

• Firmware: Matter WiFi - SoC Multi Sensor FreeRTOS

Contact Sensor#

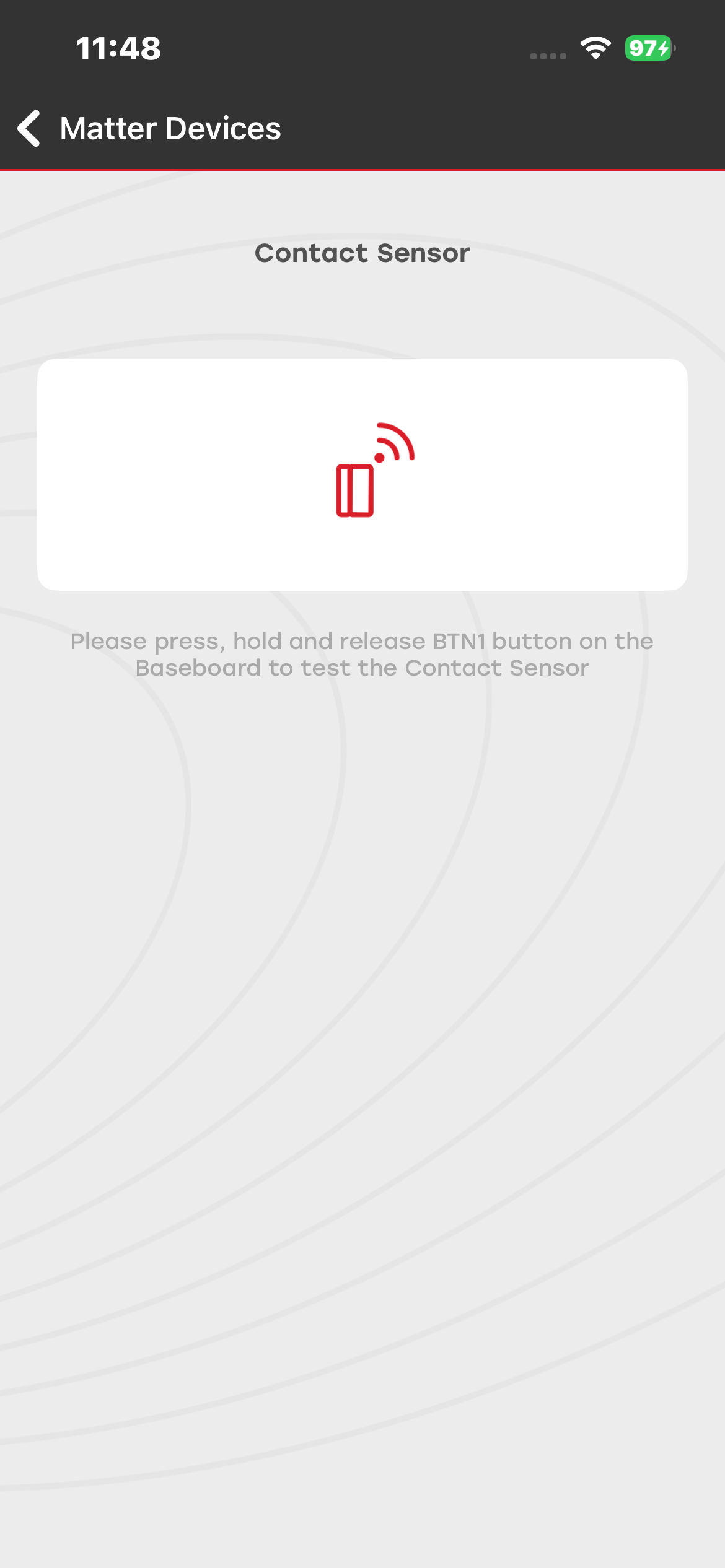

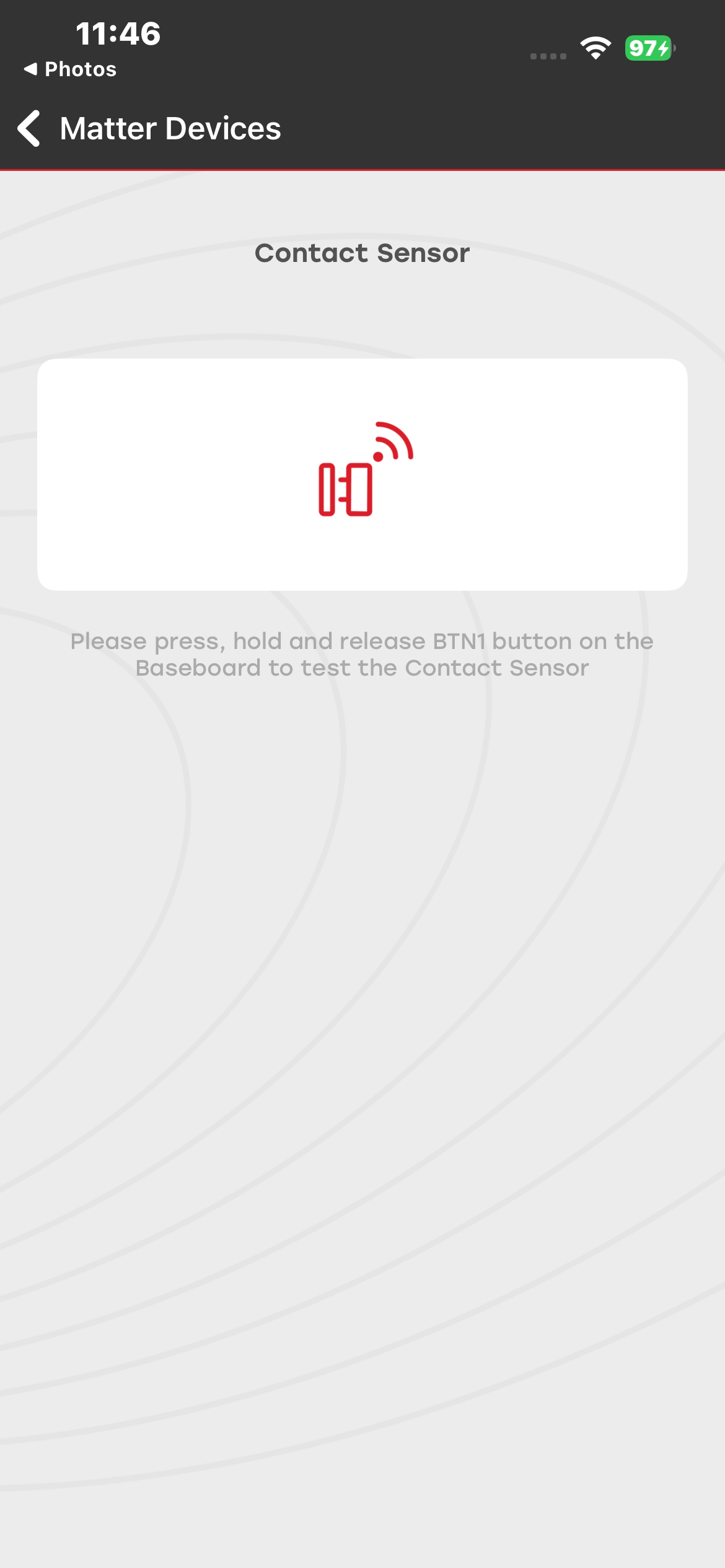

You can commission the Contact sensor matter device and control it. You can long press the user button BTN1 on the dev board to change the status of the sensor. You can observe the device status on both the dev board and mobile application.

The “Matter Sensor” sample app needs to be configured as a Contact Sensor device, as described below, rebuilt, and flashed on the dev board.

To configure the contact sensor:

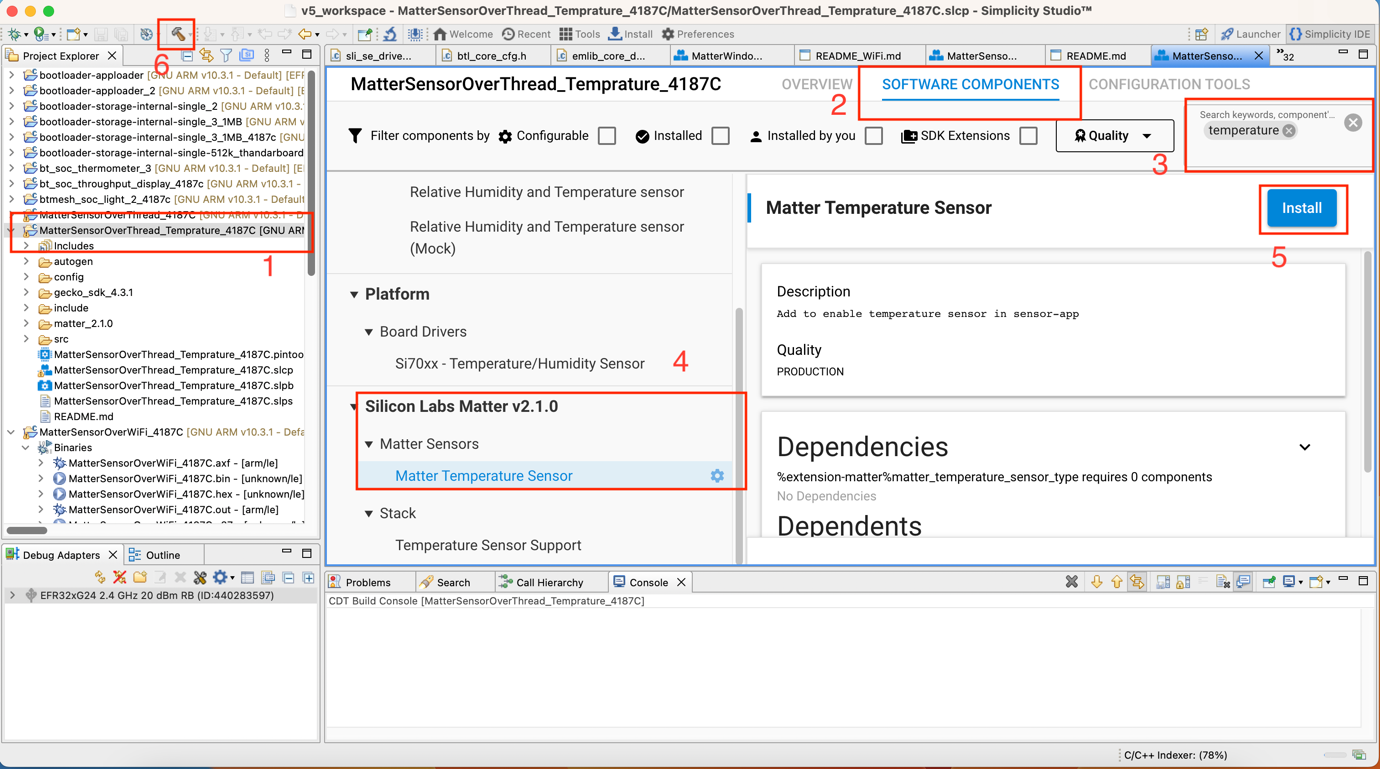

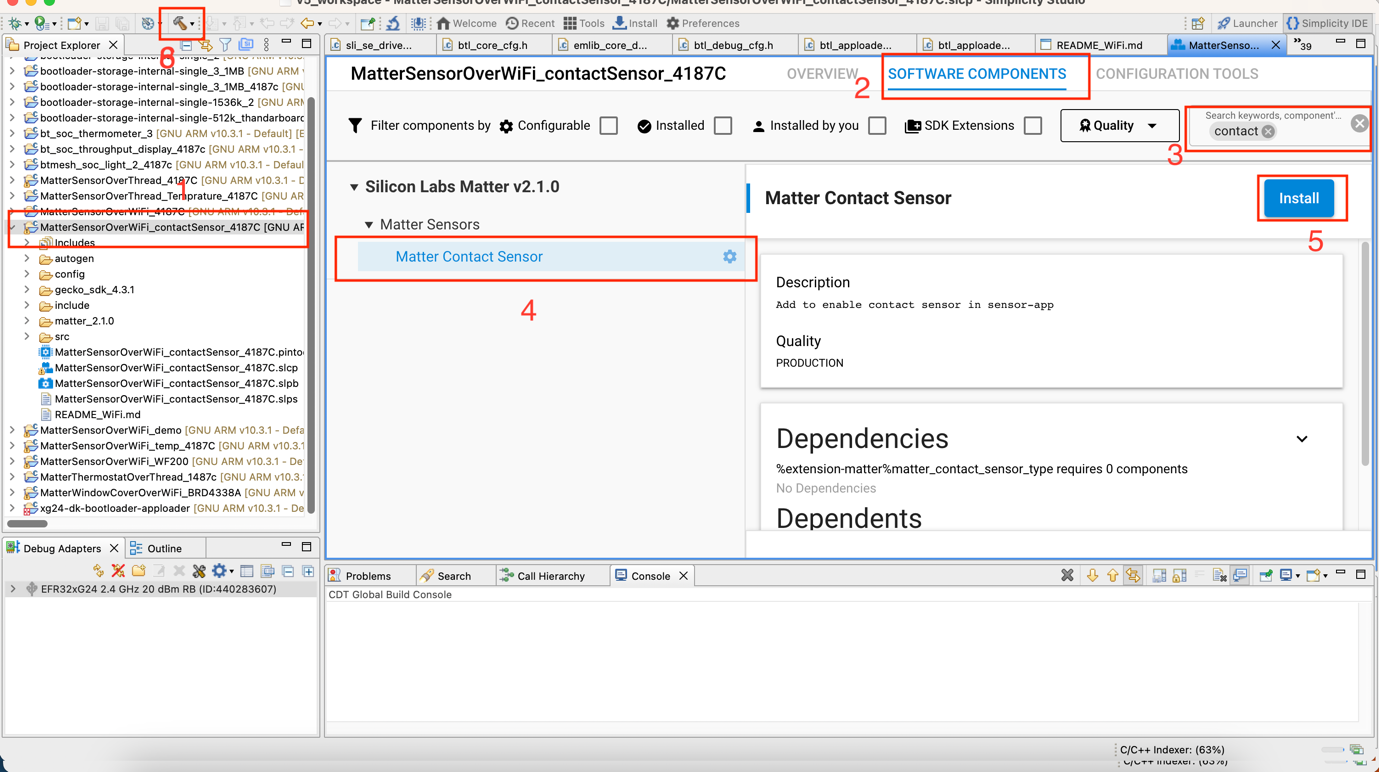

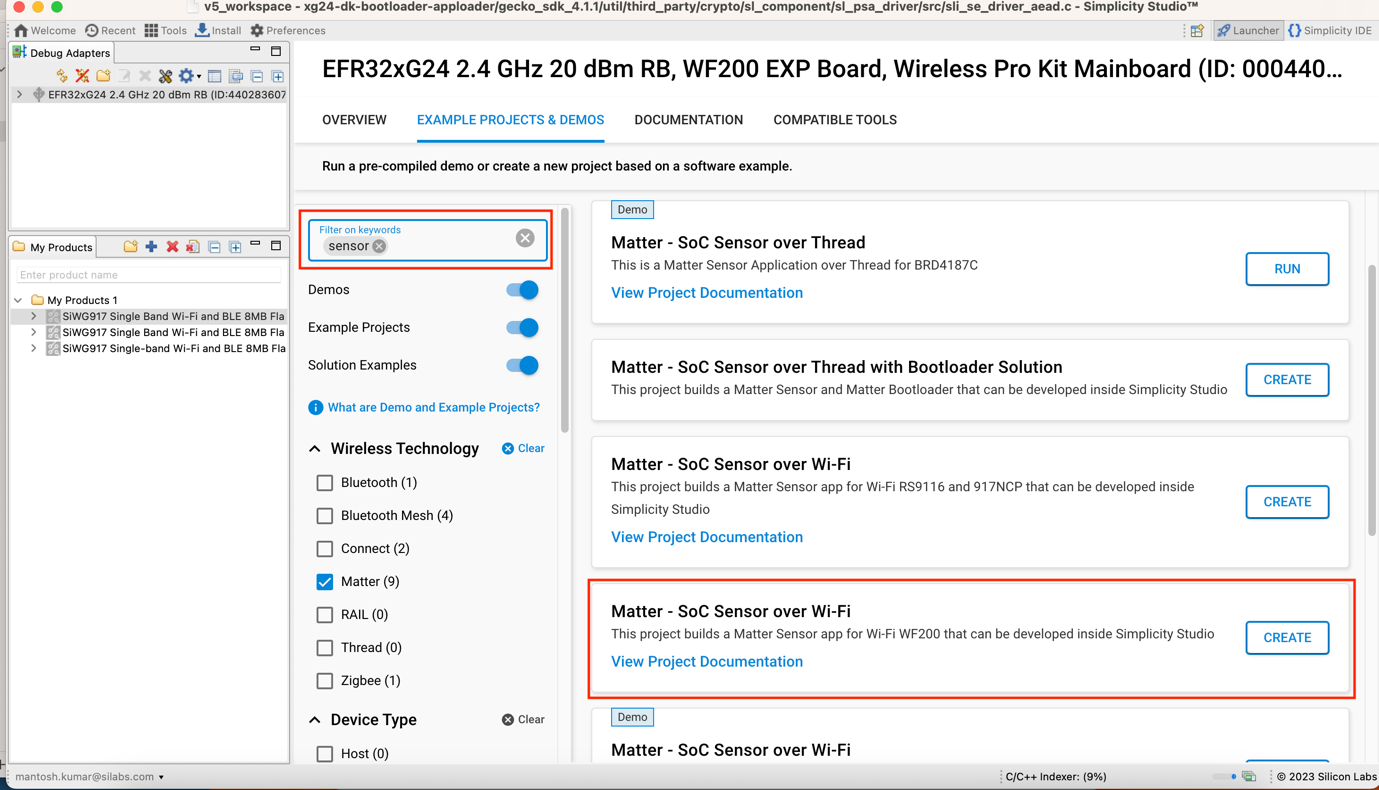

1. Search sensor in Simplicity Studio.

2. Select Matter – SoC Sensor over Wi-Fi.

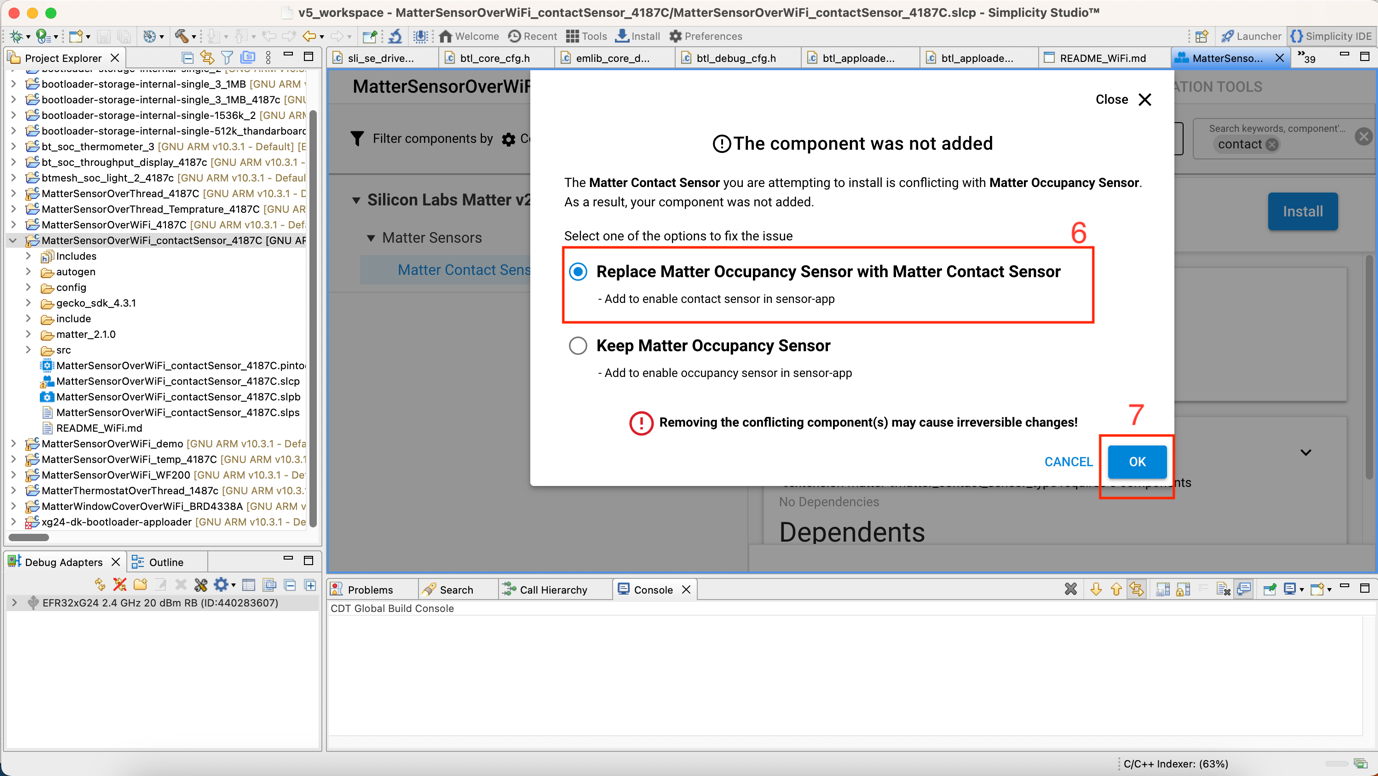

3. Create firmware and build as in the following screens.

Temperature Sensor Demo#

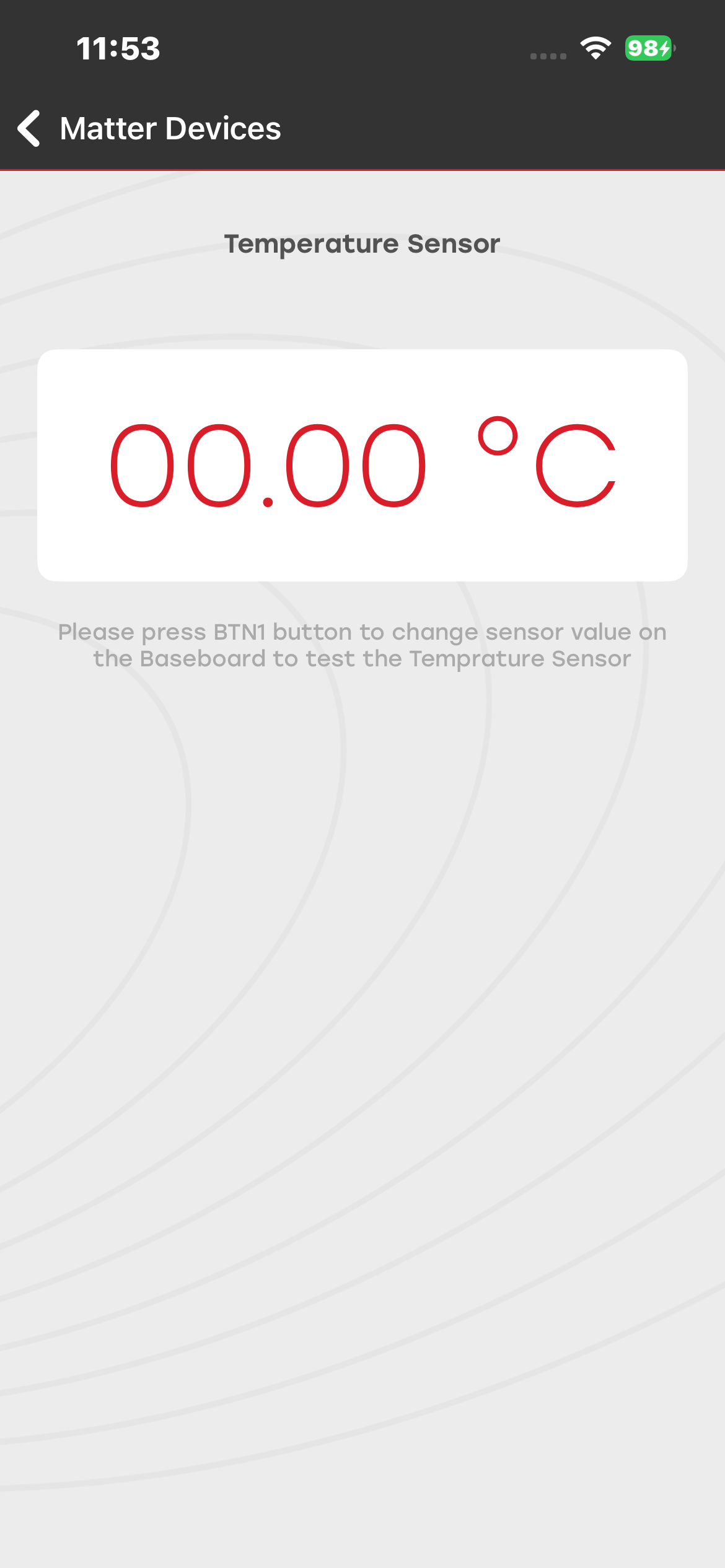

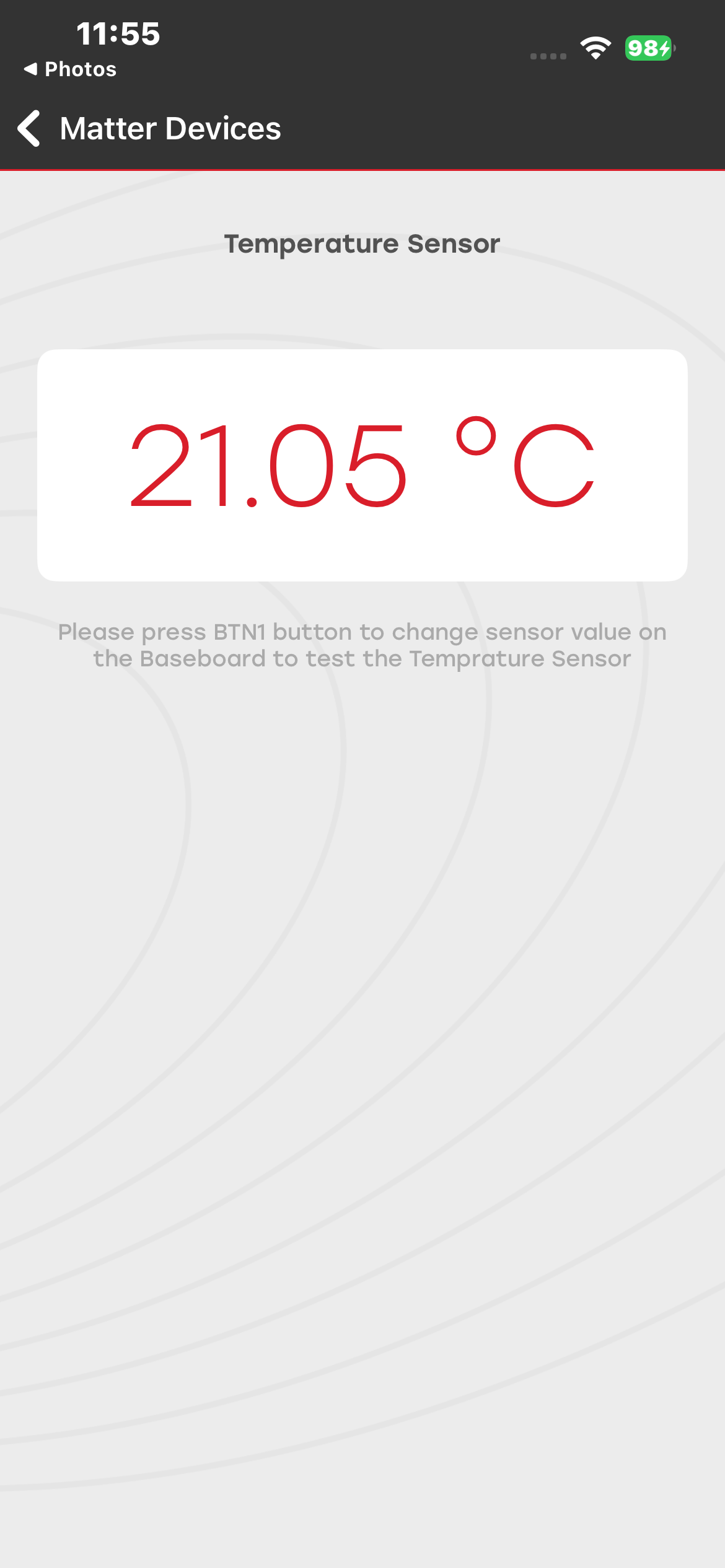

You can commission the Temperature Sensor Matter device and control it. You can long press the user button BTN1 on the dev board to change the status of the sensor. You can observe the device status on both the dev board and mobile application.

The “Matter Sensor” sample app needs to be configured as a Temperature Sensor device, as described below, rebuilt, and flashed on the dev board.

Air Quality#

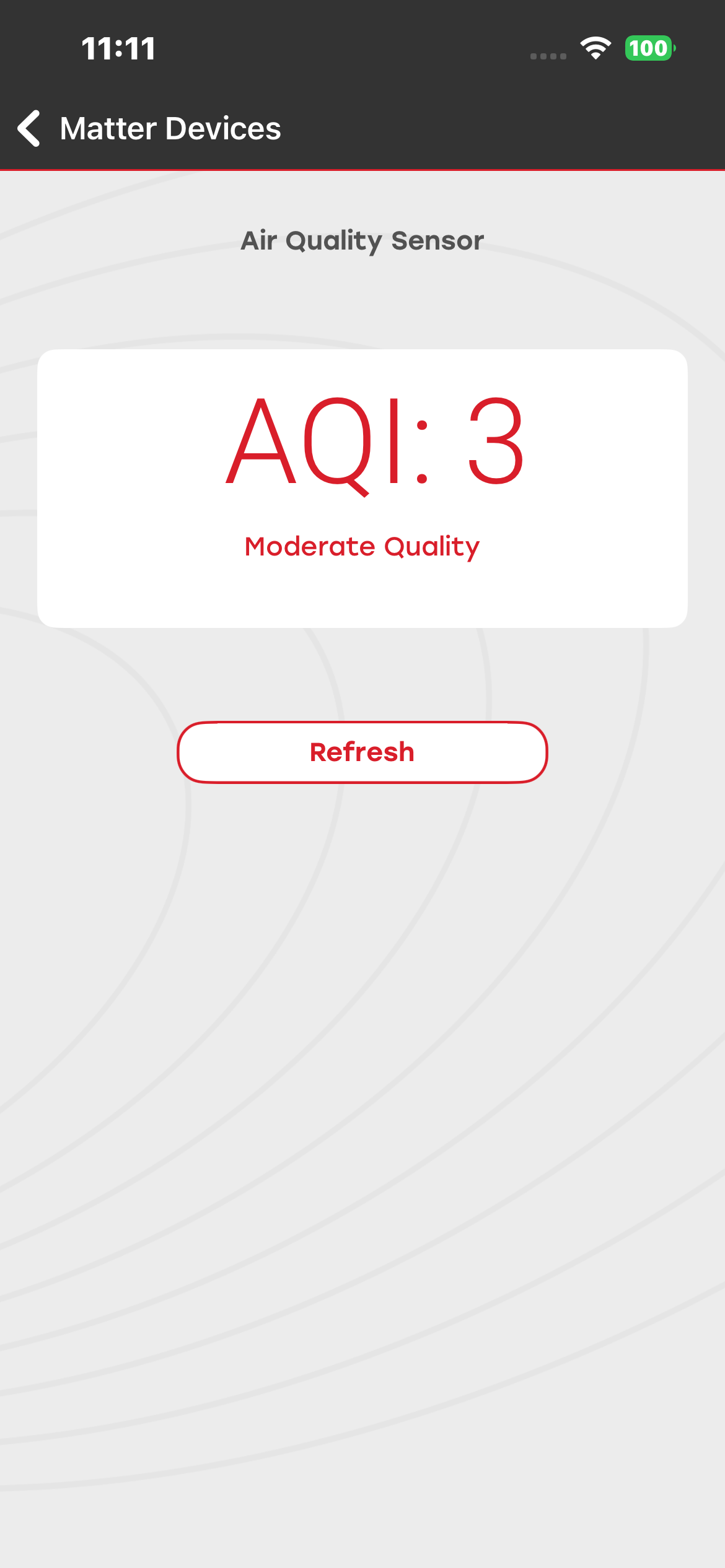

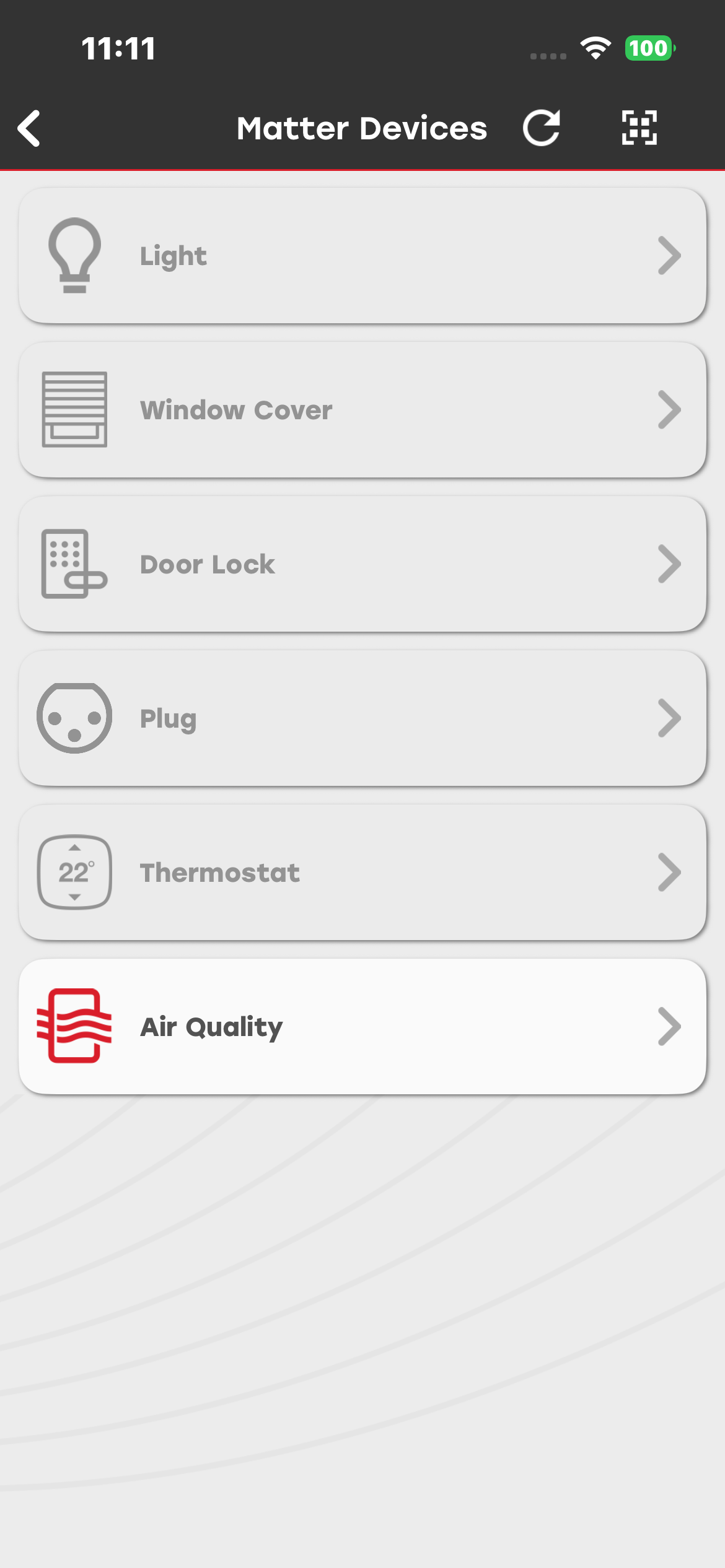

You can commission the Air Quality Matter device. You can observe the device status on both the dev board and mobile application.

Firmware and Bootloader Details#

Thread:#

• Bootloader: Bootloader - SoC Internal Storage

• Firmware: Matter Thread - SoC Air Quality Sensor FreeRTOS

Wi-Fi:#

• Firmware: Matter WiFi - SoC Air Quality Sensor FreeRTOS

Matter Switch Demo#

You can commission the Switch and Light Matter devices and control them using the Switch Matter device. You can view the device status both on the development board and in the mobile application.

Firmware and Bootloader Details#

For light device:#

Thread:#

• Bootloader: Bootloader - SoC Internal Storage

• Firmware: Matter Thread - SoC Lighting FreeRTOS

Wi-Fi:#

• Firmware: Matter WiFi - SoC Lighting FreeRTOS

For Switch device:#

Thread:#

• Bootloader: Bootloader - SoC Internal Storage

• Firmware: Matter Thread - SoC Light Switch FreeRTOS

Wi-Fi:#

• Firmware: Matter WiFi - SoC Light Switch FreeRTOS

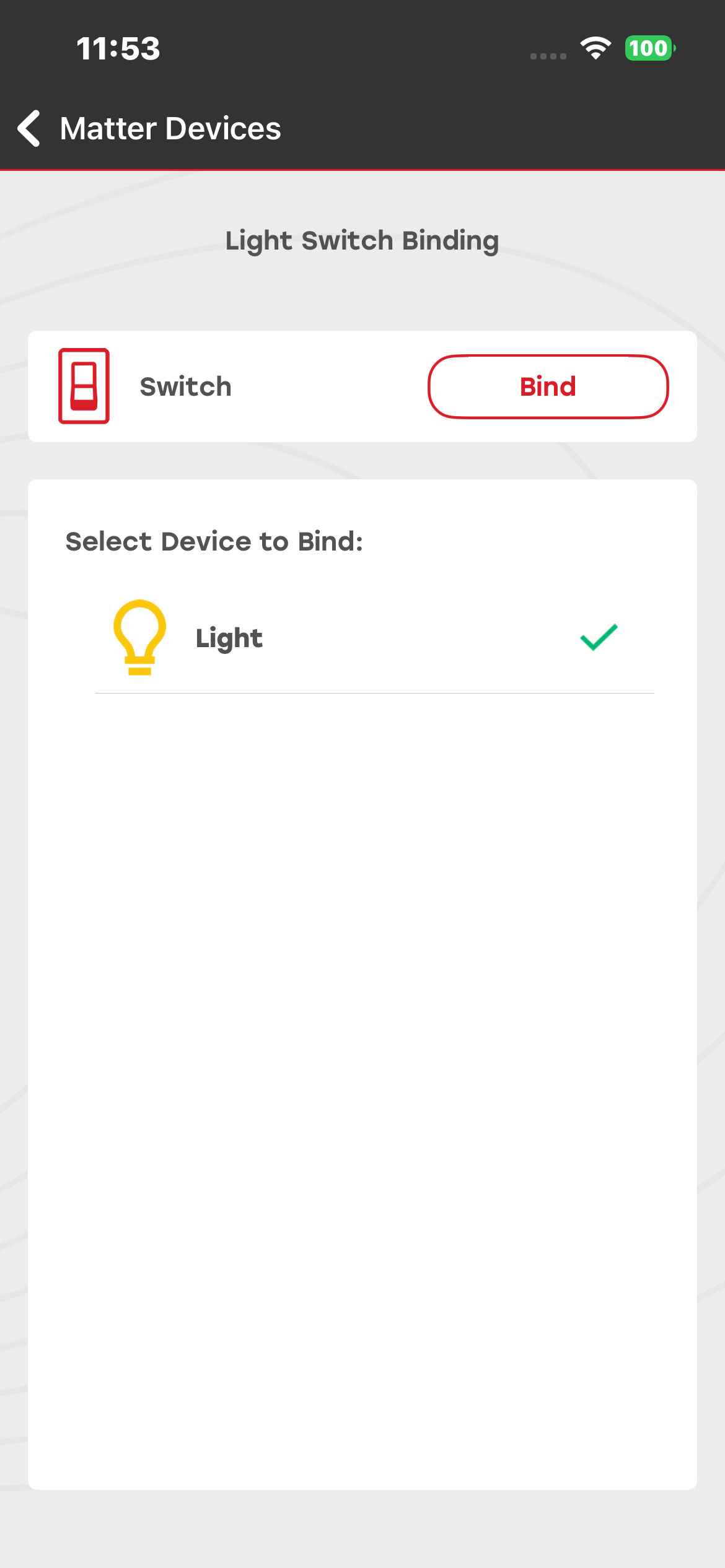

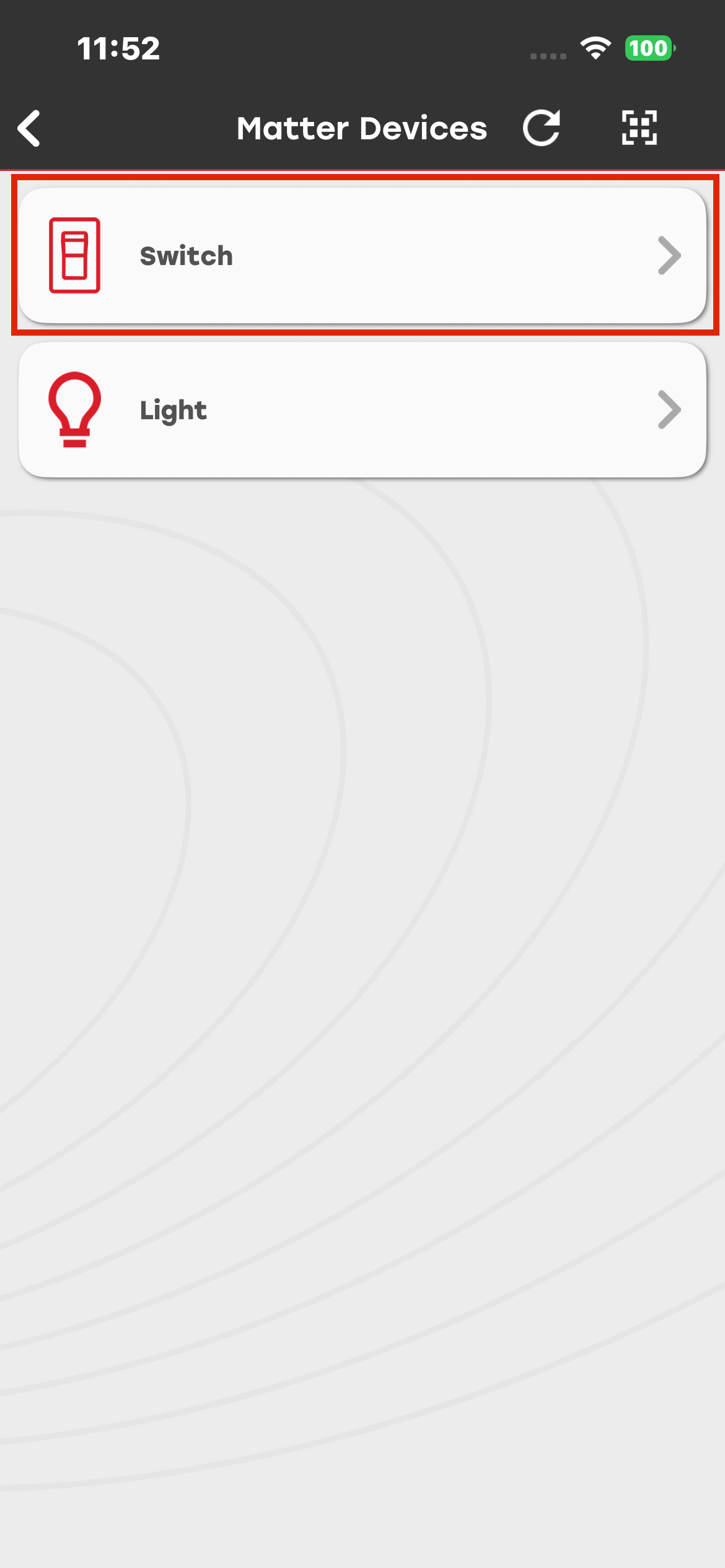

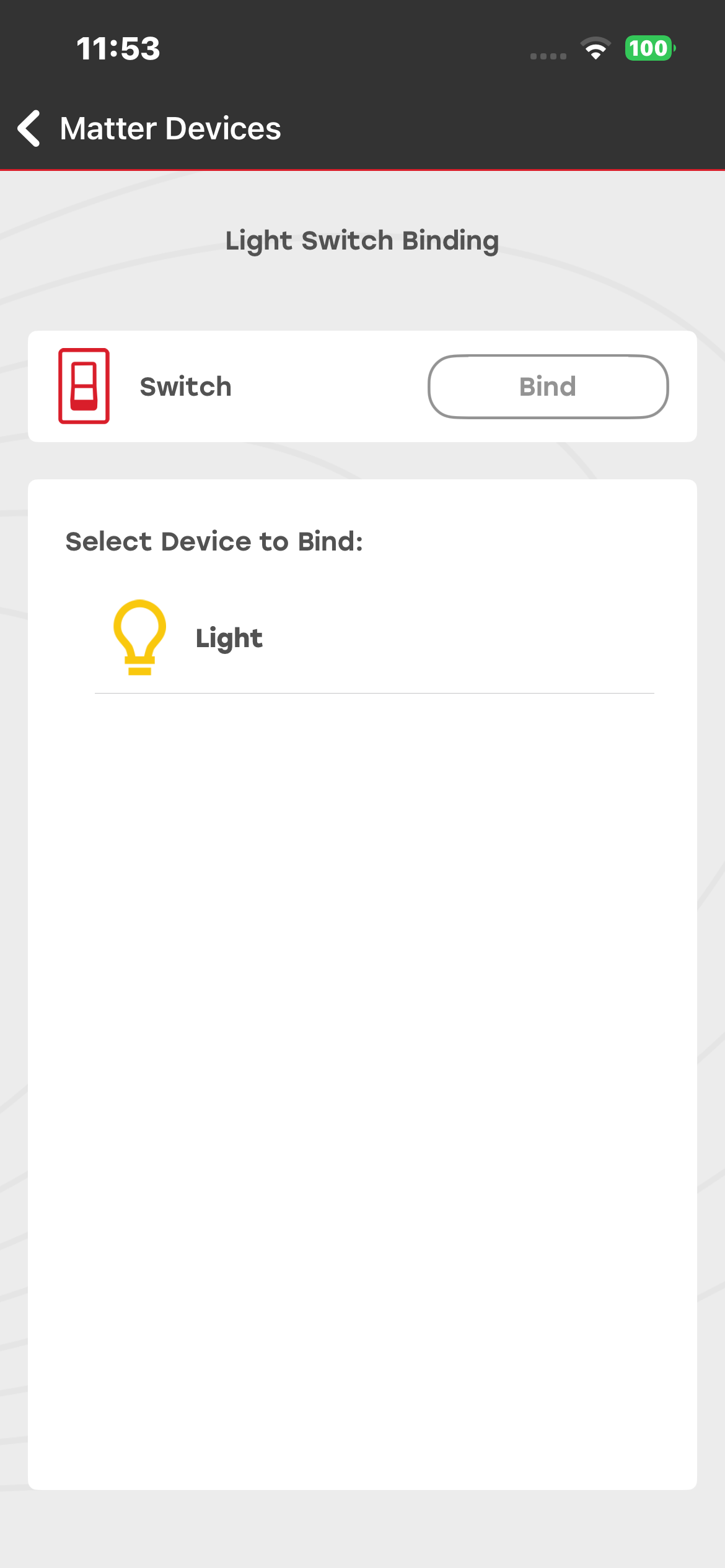

After commissioning the Switch and Matter Light device, you need to select the Switch device from the list to perform the binding functionality. Select the Light device and click the Bind button.

Click the Bind button to initiate the binding process between the Light device and the Switch. Once the binding is successful, you can control the Light device by clicking the BT1 button on the Matter Switch board.

EVSE Demo#

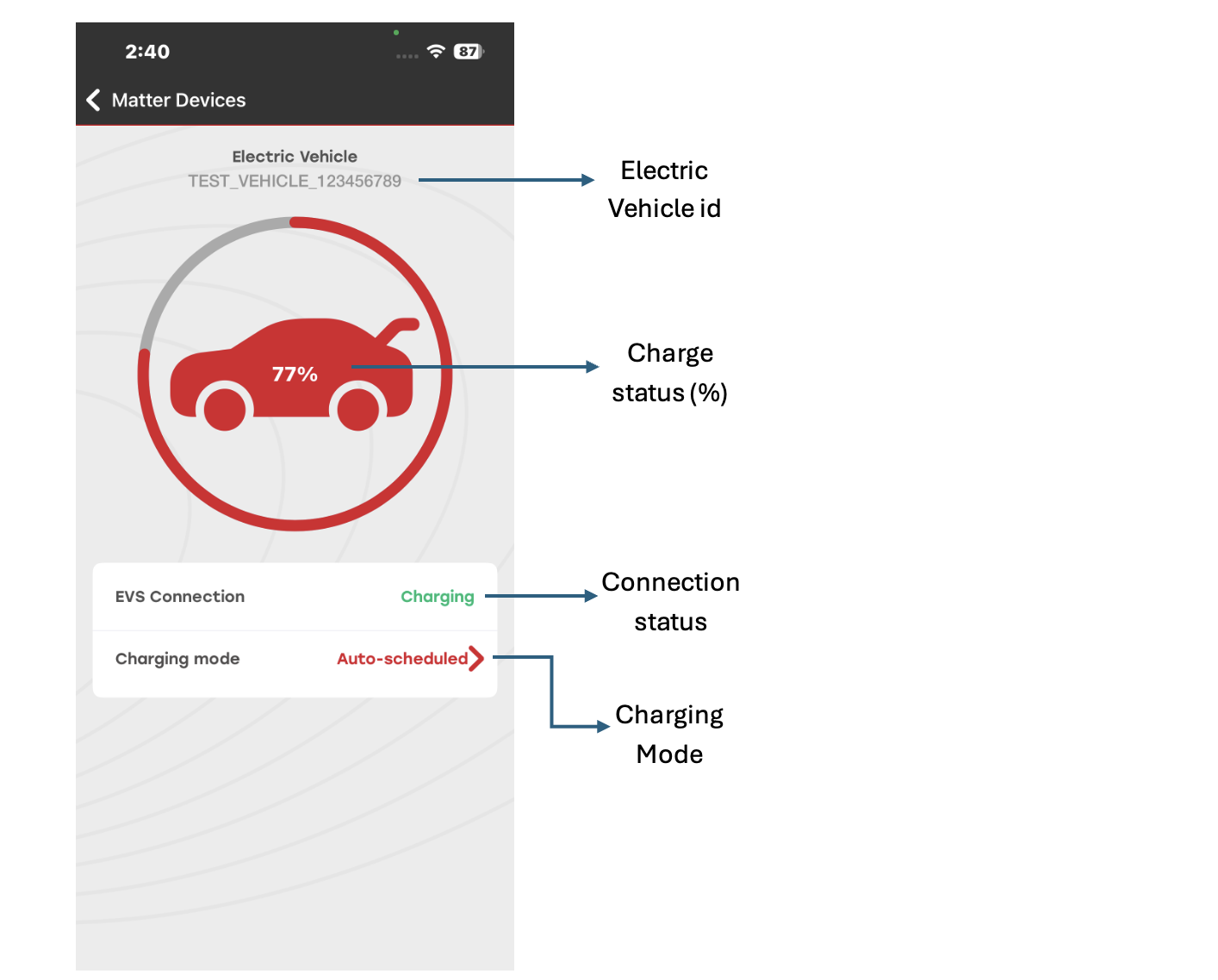

You commission, monitor, and control the EVSE Matter device through the Simplicity Connect mobile application.

Using this demo, you can:

• View the commissioned vehicle ID

• Check the current charging status (in percentage)

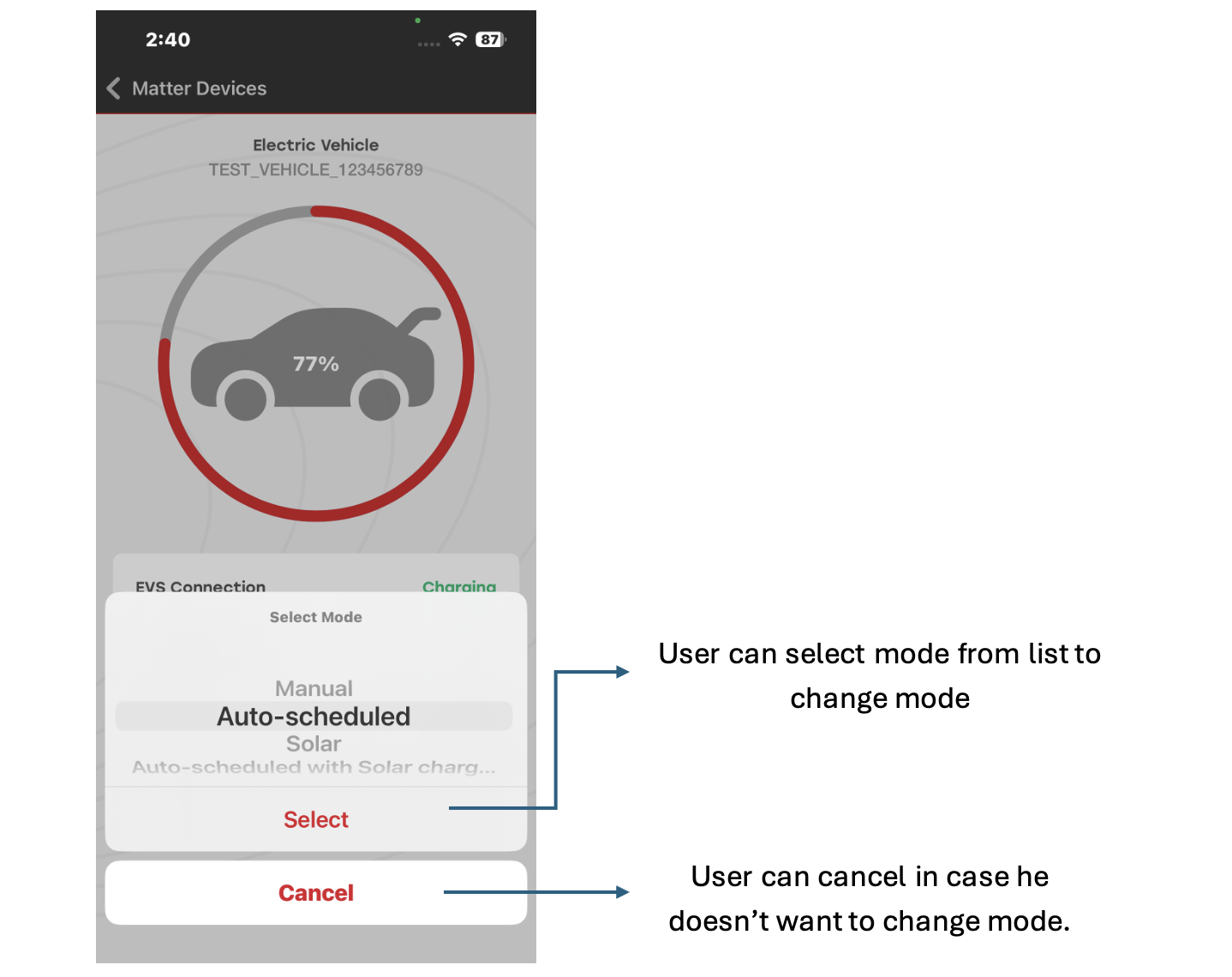

• Change the charging mode

Firmware and Bootloader Details#

Thread:#

• Bootloader: Bootloader - SoC Internal Storage

• Firmware: Matter Thread - SoC EVSE FreeRTOS

Wi-Fi:#

• Firmware: Matter WiFi - SoC EVSE FreeRTOS

Oven Demo#

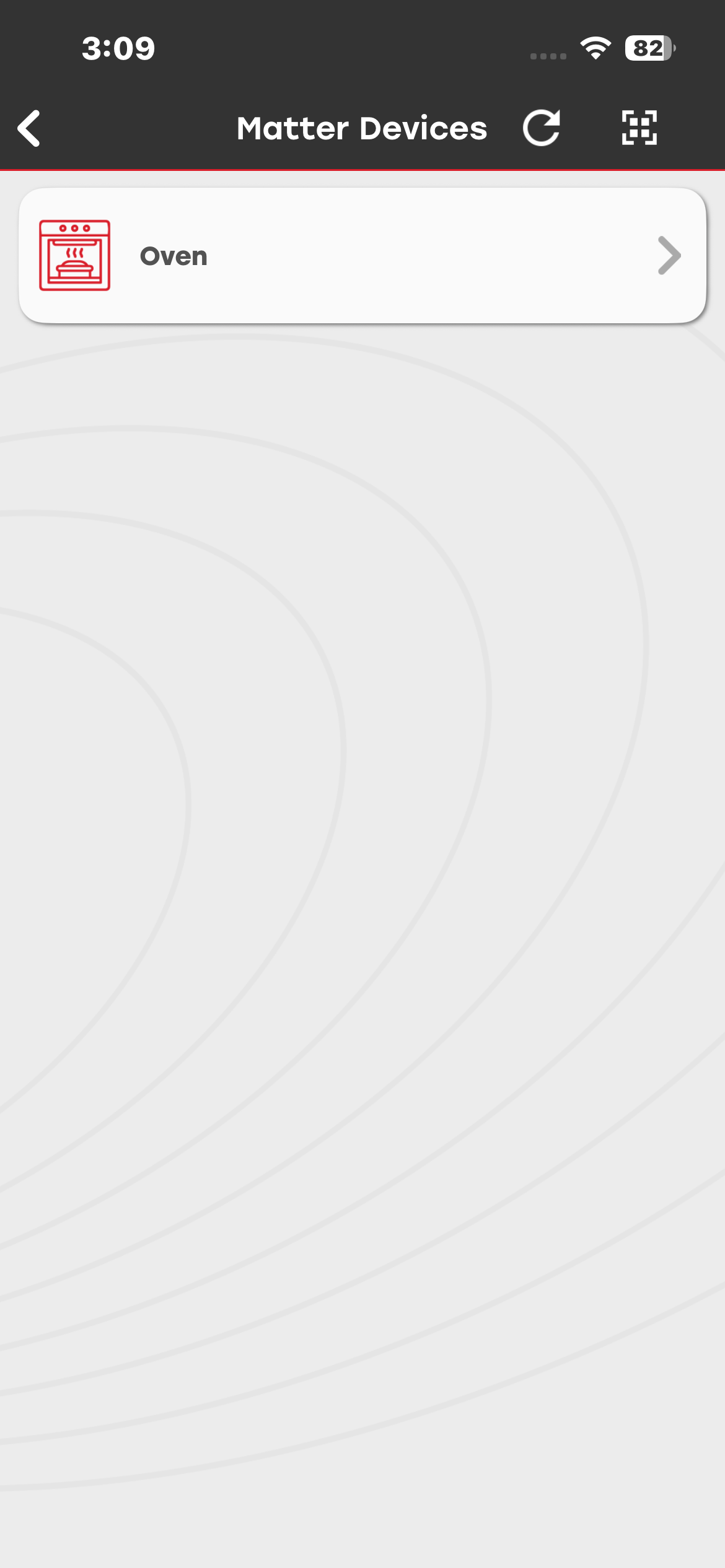

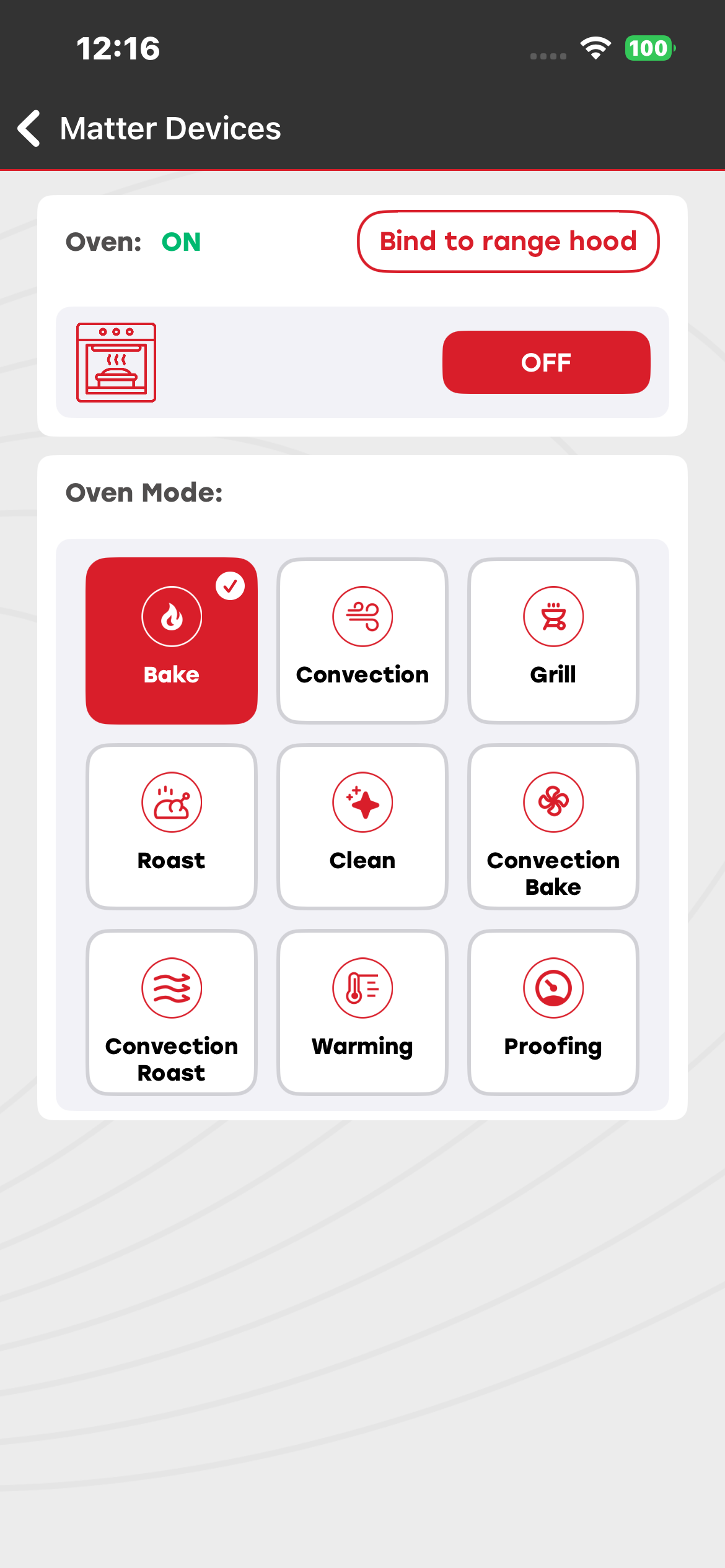

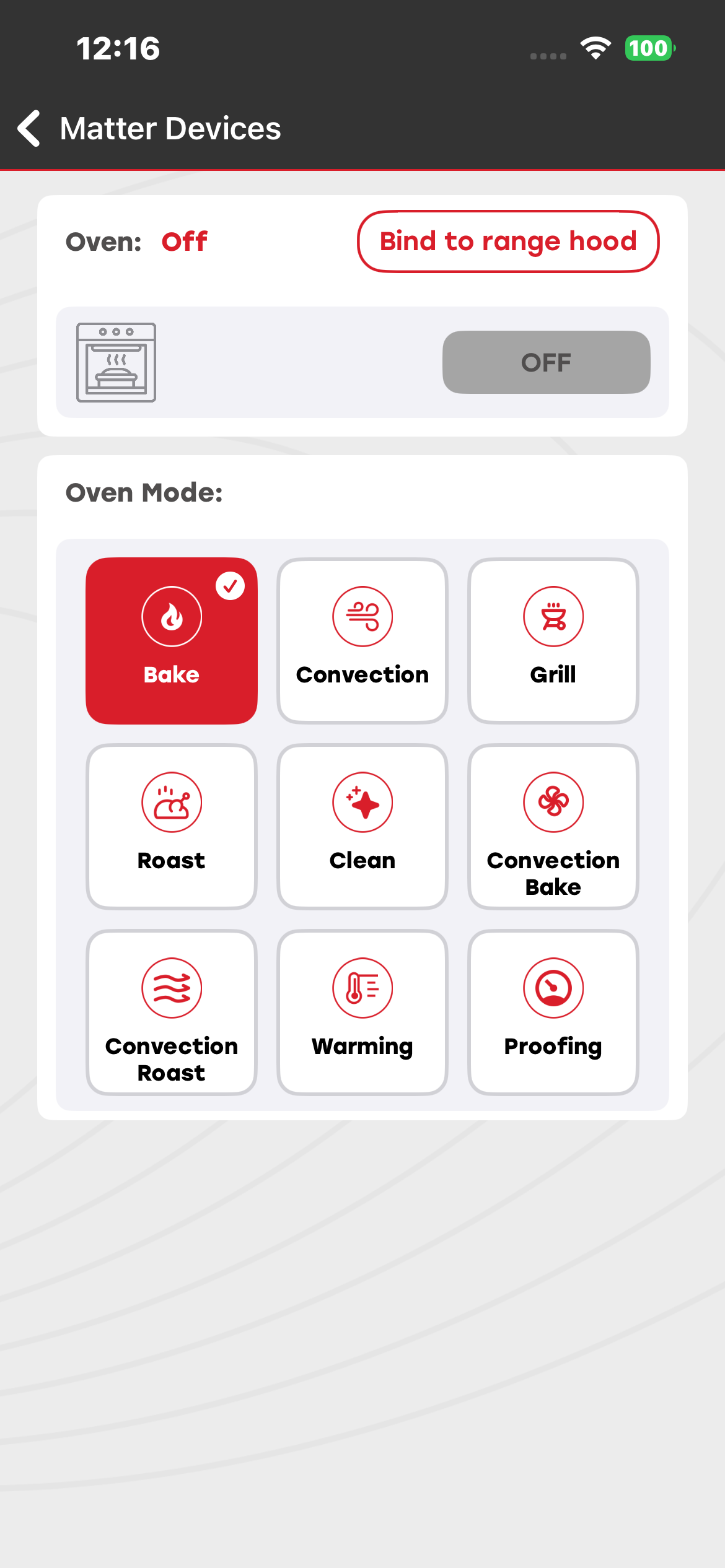

You can commission and control the Matter Oven device. Using the Simplicity mobile app, you can turn the oven ON or OFF and change its operating mode. The active mode status of the oven is displayed on both the development board and the mobile application.

Firmware and Bootloader Details#

Thread:#

• Bootloader: Bootloader - SoC Internal Storage Bootloader

• Firmware: Matter Thread – SoC Oven (FreeRTOS)

Wi-Fi:#

• Firmware: Matter Wi-Fi – SoC Oven (FreeRTOS)

Rand Hood Demo#

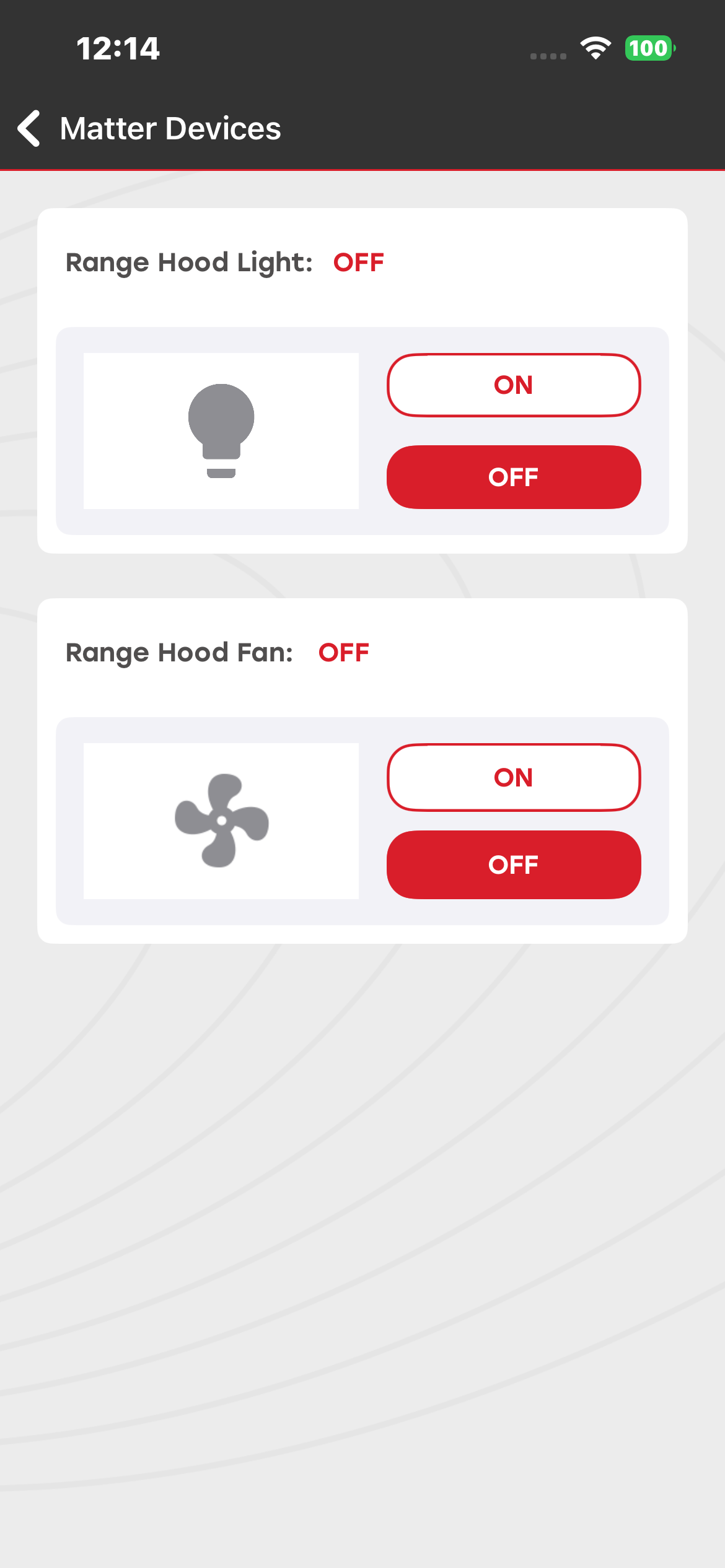

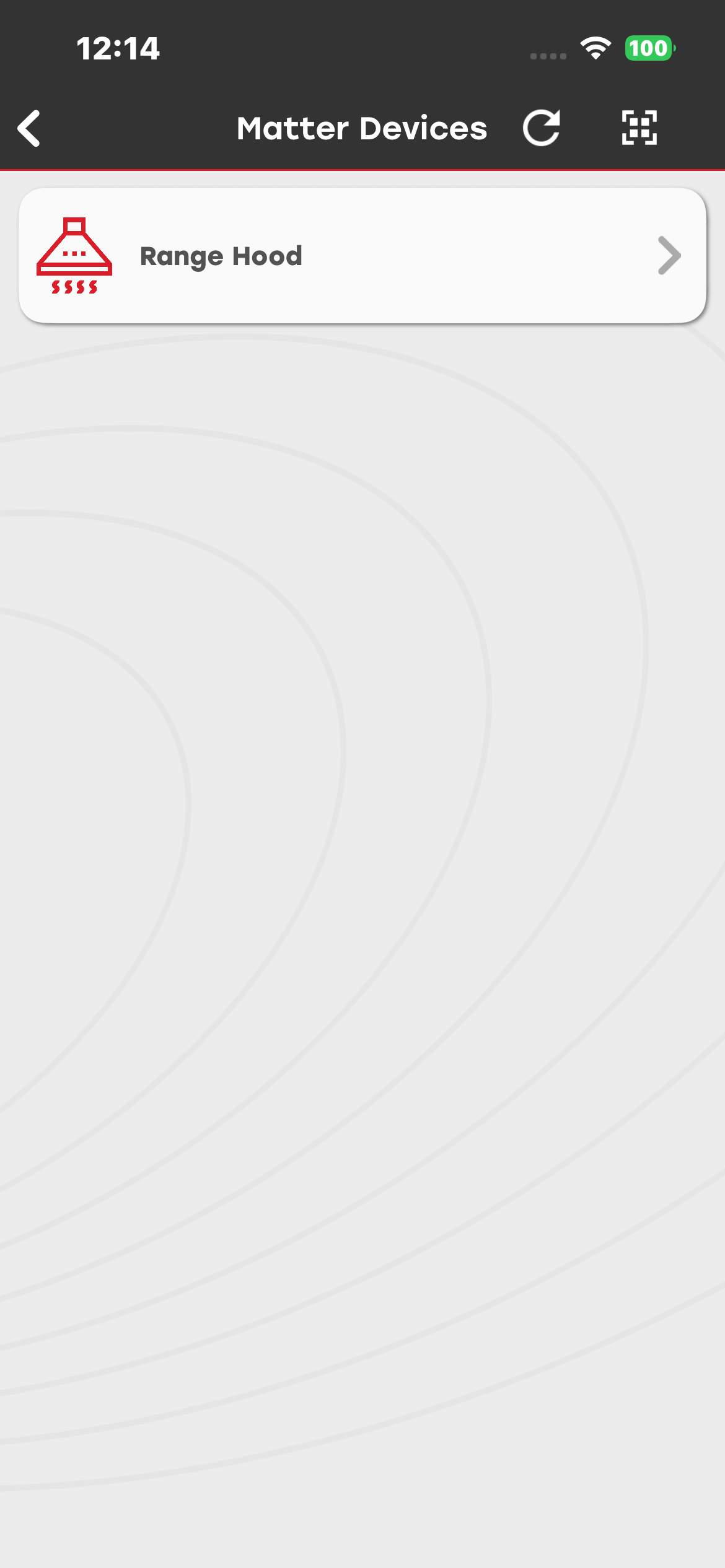

Using the Simplicity mobile app, you can commission and control the Matter Oven device, including turning it ON or OFF and changing its operating mode.

The current operating mode of the oven is displayed on both the development board and the mobile application.

Firmware and Bootloader Details#

Below are the firmware and bootloader configurations that support the Range Hood demo:

Thread:#

• Bootloader: Bootloader - SoC Internal Storage Bootloader

• Firmware: Matter Thread – SoC Range Hood (FreeRTOS)

Wi-Fi:#

• Firmware: Matter Wi-Fi – SoC Range Hood (FreeRTOS)

Matter Oven and Range Hood Binding#

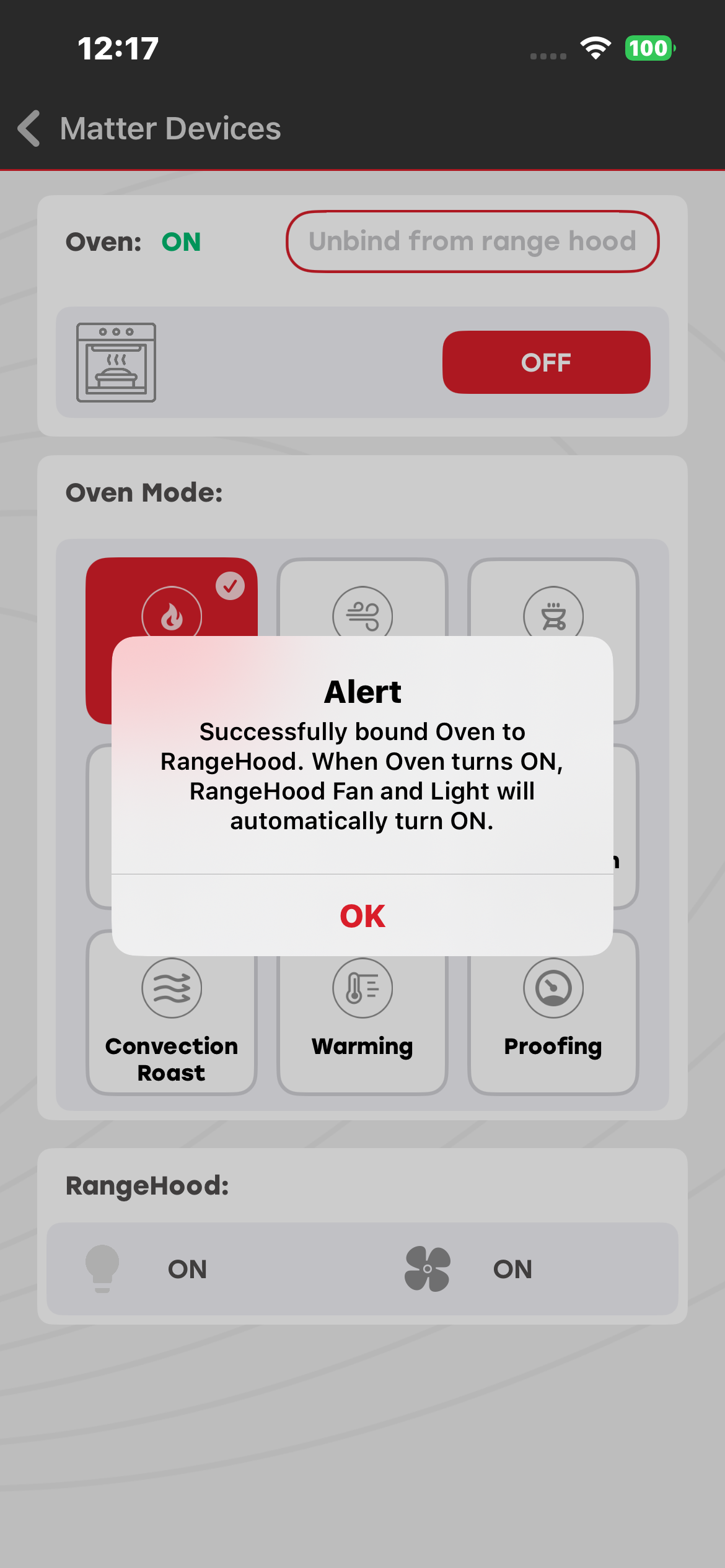

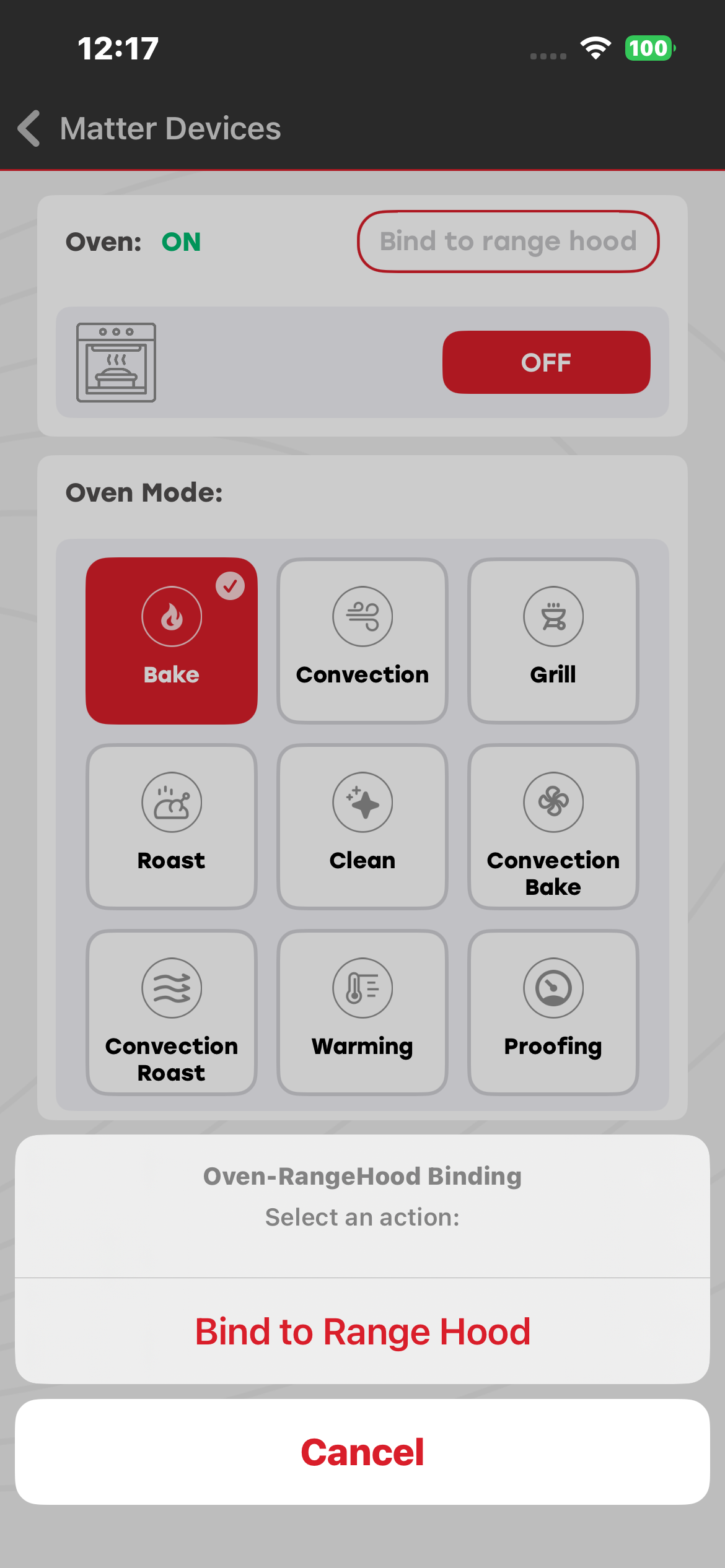

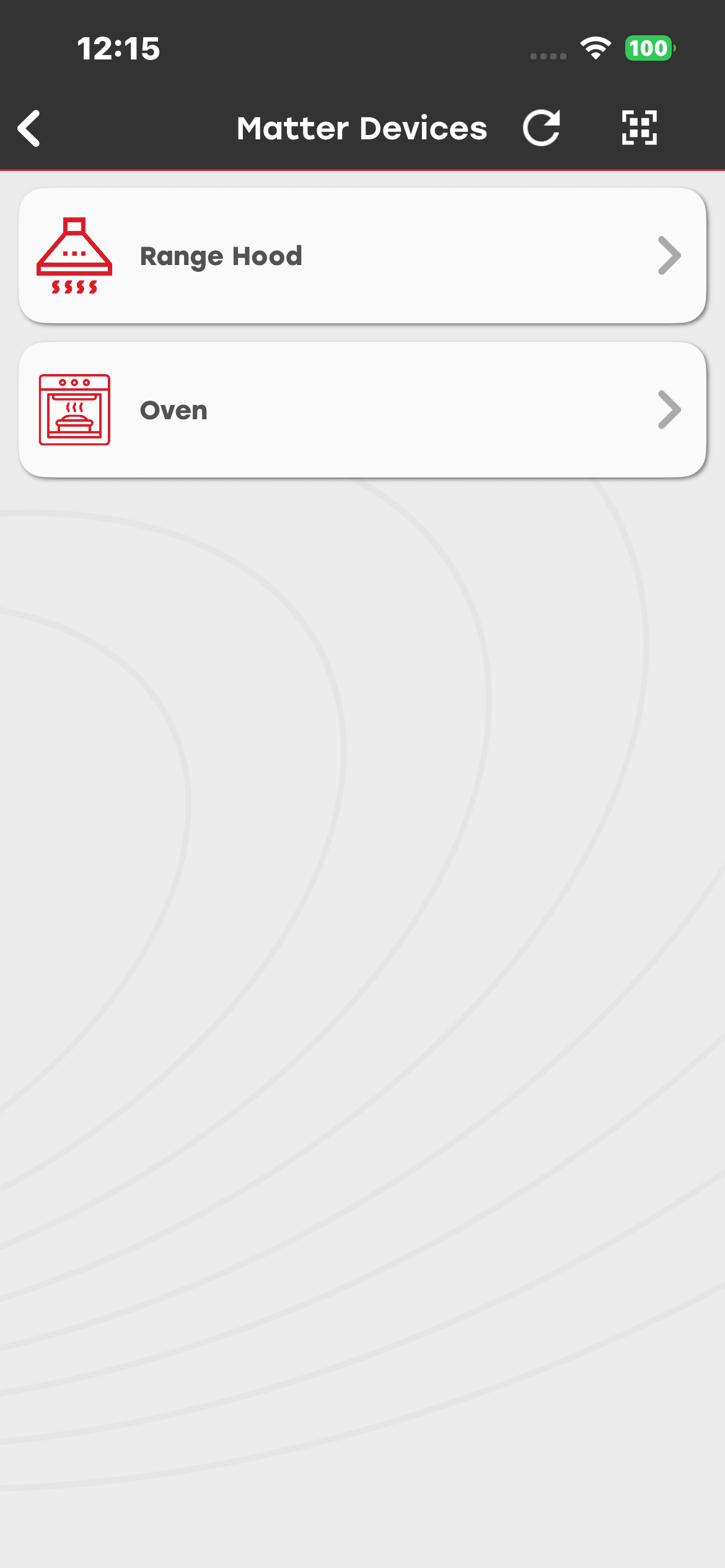

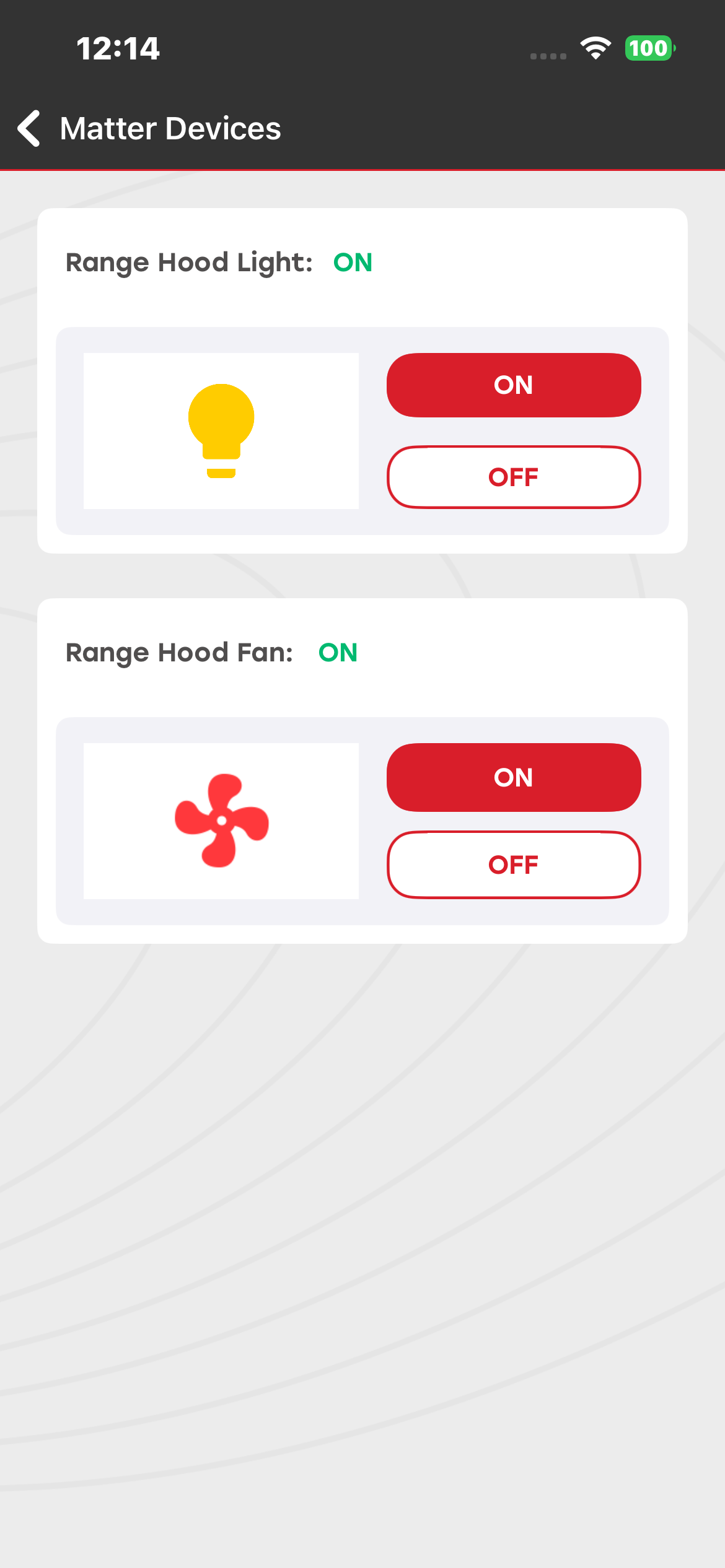

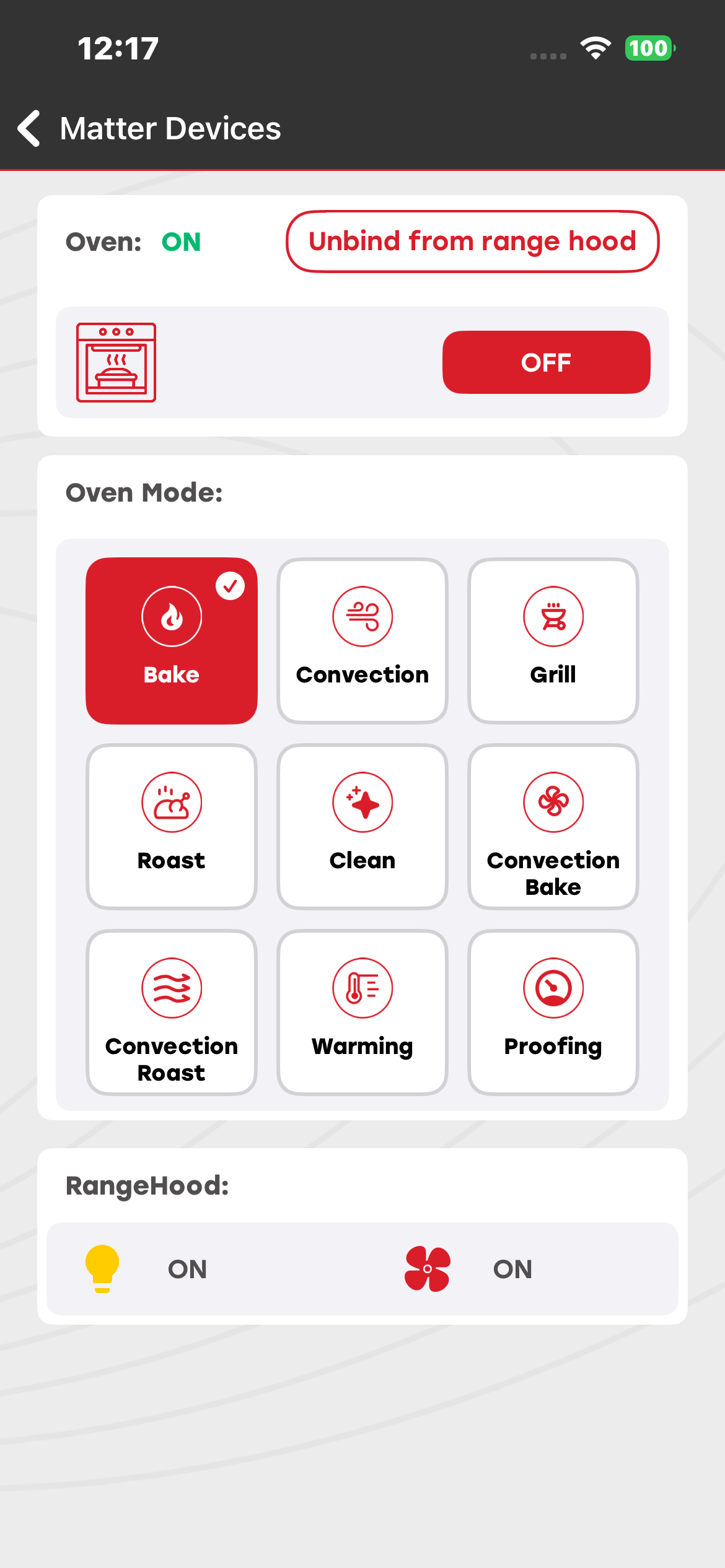

You can commission both the Matter Oven and the Range Hood devices and then bind the Oven to the Range Hood. When the Oven device is turned off, the Range Hood light and fan will also turn off. When the Oven is turned on, the Range Hood fan and light will automatically turn on.

After successful binding, the Oven can be turned on or off by pressing the BT1 button on the Matter device board.
