Updates to OpenThread to Include PSA Crypto APIs#

The OpenThread stack supports crypto operations using either literal keys or key references. This can be configured using the macro OPENTHREAD_CONFIG_PLATFORM_KEY_REFERENCES_ENABLE. Also, Openthread stack now supports PSA or mbedTLS APIs for Crypto operations. The stack defaults to using mbedTLS APIs, but it can be configured to use PSA using OPENTHREAD_CONFIG_CRYPTO_LIB.

Note: The OpenThread sample apps provided in the SDK have the PSA Crypto with key references enabled by default, except for radio co-processor (RCP) and network co-processor (NCP) applications.

In general, the following points highlight the general changes in OpenThread stack to integrate PSA Crypto API usage.

  • All the keys stored in the key_manager and sub_mac modules are replaced with key references.

  • When key_manager and sub_mac receive security keys, they pass the keys to the PSA abstraction for storage, and only retain the references to these keys.

  • The packets in any Rx or Tx events are updated with the relevant key references so that PSA Crypto modules can use them to perform security processing.

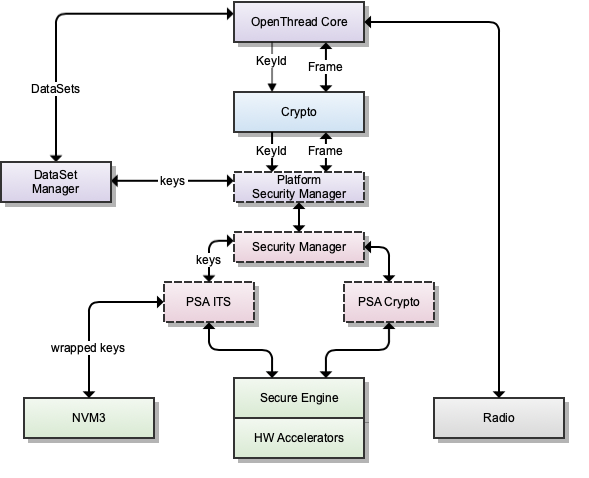

Crypto Module Operation in OpenThread with PSACrypto Module Operation in OpenThread with PSA

All keys are wrapped before storing and all the keys are stored in volatile memory (RAM), apart from Thread Master Key and PSKc. These are stored in NVM to be retained and re-used in the future. The following table lists the security keys stored in Secure Vault along with their corresponding PSA attributes.

Table: Cryptographic Keys in the OpenThread Stack

Key

Type

Usage

Persistence

Thread Master Key

PSA_KEY_TYPE_HMAC

PSA_KEY_USAGE_SIGN_HASH PSA_KEY_USAGE_EXPORT

PSA_KEY_LIFETIME_PERSISTENT

PSKc

PSA_KEY_TYPE_RAW_DATA

PSA_KEY_USAGE_EXPORT

PSA_KEY_LIFETIME_PERSISTENT

MLE Key

PSA_KEY_TYPE_AES

PSA_KEY_USAGE_ENCRYPT PSA_KEY_USAGE_DECRYPT

PSA_KEY_LIFETIME_ VOLATILE

Temp MLE key

PSA_KEY_TYPE_AES

PSA_KEY_USAGE_ENCRYPT PSA_KEY_USAGE_DECRYPT

PSA_KEY_LIFETIME_ VOLATILE

Key Encryption Key

PSA_KEY_TYPE_AES

PSA_KEY_USAGE_ENCRYPT PSA_KEY_USAGE_DECRYPT PSA_KEY_USAGE_EXPORT

PSA_KEY_LIFETIME_ VOLATILE

MAC Previous Key

PSA_KEY_TYPE_AES

PSA_KEY_USAGE_ENCRYPT PSA_KEY_USAGE_DECRYPT

PSA_KEY_LIFETIME_ VOLATILE

MAC Current Key

PSA_KEY_TYPE_AES

PSA_KEY_USAGE_ENCRYPT PSA_KEY_USAGE_DECRYPT

PSA_KEY_LIFETIME_ VOLATILE

MAC Next Key

PSA_KEY_TYPE_AES

PSA_KEY_USAGE_ENCRYPT PSA_KEY_USAGE_DECRYPT

PSA_KEY_LIFETIME_ VOLATILE

Note: The keys part of the dataset is still stored in the NVM, and is only copied into Secure Vault.

Crypto modules in OpenThread are updated to support the PSA APIs. These APIs use the key references provided by the stack to perform security processing on the incoming/outgoing messages.

Security Manager#

A new platform abstraction has also been introduced to abstract some of the security operations from the core stack. This abstraction acts as an interface to the PSA module and extends PSA interfaces to the stack.

Note: As the PSA does not support the PBKDF2 yet, the stack uses mbed TLS APIs for these operations.
