SDIO Secondary#

sl_sdio_slave_rx_intr_status_t#

sl_sdio_slave_rx_intr_status_t

sl_sdio_secondary_callback_t#

typedef void(* sl_sdio_secondary_callback_t) (uint8_t events) )(uint8_t events)

sl_sdio_secondary_gpdma_callback_t#

typedef void(* sl_sdio_secondary_gpdma_callback_t) (uint8_t dma_ch) )(uint8_t dma_ch)

sl_si91x_sdio_secondary_init#

sl_status_t sl_si91x_sdio_secondary_init (void)

Initializes the SDIO secondary.

By default, the SDIO pin access with TA, this API gives the pin access to M4, selects the SDIO mode and enable the SDIO primary interrupts.

Returns

• none

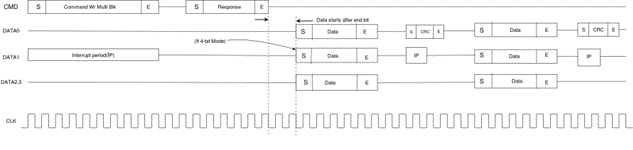

sl_si91x_sdio_secondary_send#

void sl_si91x_sdio_secondary_send (uint8_t num_of_blocks, uint8_t *data_buf)

Trigger sequence to send data from the SDIO secondary in non-blocking mode to the host/primary device.

This API accepts the num of blocks i.e., one block will have block length (1 to 1024) bytes and a pointer to the data buffer to be transferred.

Returns

• none

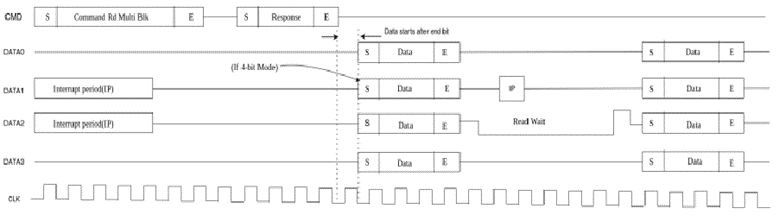

sl_si91x_sdio_secondary_receive#

void sl_si91x_sdio_secondary_receive (uint8_t *data_buf)

Receive data on the SDIO secondary in non-blocking mode from the host/primary device using DMA.

Returns

• none

sl_si91x_sdio_secondary_register_event_callback#

sl_status_t sl_si91x_sdio_secondary_register_event_callback (sl_sdio_secondary_callback_t callback_event, uint32_t flag)

Register the SDIO secondary user callback function.

• Pre-condition:

  • sl_si91x_sdio_secondary_init();

Returns

• status 0 if successful, else error code as follow

  • SL_STATUS_OK (0x0000) - Success

  • SL_STATUS_NULL_POINTER (0x0022) - The parameter is a null pointer

  • SL_STATUS_BUSY (0x0004) - Driver is busy

sl_si91x_sdio_secondary_unregister_event_callback#

void sl_si91x_sdio_secondary_unregister_event_callback (uint32_t flag)

Unregister the SDIO secondary user callback function.

Returns

• none

sl_si91x_sdio_secondary_gpdma_register_event_callback#

sl_status_t sl_si91x_sdio_secondary_gpdma_register_event_callback (sl_sdio_secondary_gpdma_callback_t callback_event)

Register the SDIO secondary DMA user callback function.

• Pre-conditions:

  • sl_si91x_sdio_secondary_init();

Returns

• status 0 if successful, else error code as follow

  • SL_STATUS_OK (0x0000) - Success

  • SL_STATUS_NULL_POINTER (0x0022) - The parameter is a null pointer

  • SL_STATUS_BUSY (0x0004) - Driver is busy

sl_si91x_sdio_secondary_gpdma_unregister_event_callback#

void sl_si91x_sdio_secondary_gpdma_unregister_event_callback (void)

Unregister the SDIO secondary DMA user callback function.

Returns

• none

sl_si91x_sdio_secondary_get_version#

sl_sdio_secondary_version_t sl_si91x_sdio_secondary_get_version (void)

Get the SDIO Secondary Driver version.

This function is used to know the SDIO Secondary Driver version.

Returns

• sl_sdio_secondary_version_t type version

sl_si91x_sdio_secondary_peripheral_init#

void sl_si91x_sdio_secondary_peripheral_init (void)

Initializes the SDIO Secondary at peripheral layer.

This API initializes the SDIO secondary, by default SDIO pin access with TA this API gives the pin access to M4, selects the SDIO mode and enable the sdio primary interrupts

Returns

• none

sl_si91x_sdio_secondary_enable_interrupts#

__STATIC_INLINE void sl_si91x_sdio_secondary_enable_interrupts (uint32_t flags)

Enable the SDIO interrupts.

Returns

• none

sl_si91x_sdio_secondary_disable_interrupts#

__STATIC_INLINE void sl_si91x_sdio_secondary_disable_interrupts (uint32_t flags)

Disable the SDIO interrupts.

Returns

• none

sl_si91x_sdio_secondary_set_interrupts#

__INLINE void sl_si91x_sdio_secondary_set_interrupts (uint32_t flags)

Set the interrupts i.e., unmask according to the flags passed in the parameter.

• sl_si91x_sdio_secondary_enable_interrupts();

Returns

• none

sl_si91x_sdio_secondary_clear_interrupts#

__INLINE void sl_si91x_sdio_secondary_clear_interrupts (uint32_t flags)

Clear the interrupts i.e., mask according to the flags passed in the parameter.

• sl_si91x_sdio_secondary_disable_interrupts();

Returns

• none

sl_si91x_sdio_secondary_get_pending_interrupts#

__INLINE uint32_t sl_si91x_sdio_secondary_get_pending_interrupts (void)

Get the pending function interrupt.

Returns

• Return the pending interrupt status

sl_si91x_sdio_secondary_get_enabled_interrupts#

__INLINE uint32_t sl_si91x_sdio_secondary_get_enabled_interrupts (void)

Get all the enabled interrupts in function1.

Returns

• No of interrupts enabled

sl_si91x_sdio_secondary_get_enabled_pending_interrupts#

__INLINE uint32_t sl_si91x_sdio_secondary_get_enabled_pending_interrupts (void)

Get all the enabled interrupts in function1 and pending interrupts.

Returns

• No of interrupts enabled

sl_si91x_sdio_secondary_get_block_cnt#

__INLINE uint32_t sl_si91x_sdio_secondary_get_block_cnt (void)

To get block count for the last received CMD53.

Returns

• No of block counts

sl_si91x_sdio_secondary_get_block_len#

__INLINE uint32_t sl_si91x_sdio_secondary_get_block_len (void)

To get the length of each for the last received CMD53.

Returns

• Length of each block

sl_si91x_sdio_secondary_set_tx_blocks#

__INLINE void sl_si91x_sdio_secondary_set_tx_blocks (uint8_t no_of_blocks)

To set no of blocks to be transferred This API is used when transferring the data from secondary to primary in block mode.

Returns

• none

NUMGPDMADESC#

#define NUMGPDMADESC

10

HOST_INTR_RECEIVE_EVENT#

#define HOST_INTR_RECEIVE_EVENT

BIT(0)

Events for HIF irq handler.

SDIO#

#define SDIO

SDIO0

SDIO_Handler#

#define SDIO_Handler

HIF1_IRQHandler

GPDMA_Handler#

#define GPDMA_Handler

IRQ031_Handler

RX_SOURCE_ADDR#

#define RX_SOURCE_ADDR

0x20200080

SDIO Write FIFO Data Register.

TX_SOURCE_ADDR#

#define TX_SOURCE_ADDR

0x20200040

SDIO Read FIFO Data Register.

SDIO_MODE_SELECT#

#define SDIO_MODE_SELECT

0x0705

MASK_HOST_INTERRUPT#

#define MASK_HOST_INTERRUPT

0xF0

M4_MISC_CONFIG_BASE#

#define M4_MISC_CONFIG_BASE

0x46008000

SDIO_BASE#

#define SDIO_BASE

0x20200000

RX_NUM_CHUNKS#

#define RX_NUM_CHUNKS

(*(volatile uint32_t *)(SDIO_BASE + 0x242))

M4_HOST_INTR_MASK_REG#

#define M4_HOST_INTR_MASK_REG

(*(volatile uint32_t *)(M4_MISC_CONFIG_BASE + 0x00))

M4_HOST_INTR_STATUS_REG#

#define M4_HOST_INTR_STATUS_REG

(*(volatile uint32_t *)(M4_MISC_CONFIG_BASE + 0x04))

M4_HOST_INTR_CLEAR#

#define M4_HOST_INTR_CLEAR

(*(volatile uint32_t *)(M4_MISC_CONFIG_BASE + 0x08))

MISC_CFG_HOST_CTRL#

#define MISC_CFG_HOST_CTRL

(*(volatile uint32_t *)(M4_MISC_CONFIG_BASE + 0x0C))

SL_SDIO_WR_INT_EN#

#define SL_SDIO_WR_INT_EN

BIT(0)

SL_SDIO_RD_INT_EN#

#define SL_SDIO_RD_INT_EN

BIT(1)

SL_SDIO_CSA_INT_EN#

#define SL_SDIO_CSA_INT_EN

BIT(2)

SL_SDIO_CMD52_INT_EN#

#define SL_SDIO_CMD52_INT_EN

BIT(3)

SL_SDIO_PWR_LEV_INT_EN#

#define SL_SDIO_PWR_LEV_INT_EN

BIT(4)

SL_SDIO_CRC_ERR_INT_EN#

#define SL_SDIO_CRC_ERR_INT_EN

BIT(5)

SL_SDIO_ABORT_INT_EN#

#define SL_SDIO_ABORT_INT_EN

BIT(6)

SL_SDIO_TOUT_INT_EN#

#define SL_SDIO_TOUT_INT_EN

BIT(7)

SL_SDIO_WR_INT_MSK#

#define SL_SDIO_WR_INT_MSK

BIT(0)

SL_SDIO_RD_INT_MSK#

#define SL_SDIO_RD_INT_MSK

BIT(1)

SL_SDIO_CSA_INT_MSK#

#define SL_SDIO_CSA_INT_MSK

BIT(2)

SL_SDIO_CMD52_INT_MSK#

#define SL_SDIO_CMD52_INT_MSK

BIT(3)

SL_SDIO_PWR_LEV_INT_MSK#

#define SL_SDIO_PWR_LEV_INT_MSK

BIT(4)

SL_SDIO_CRC_ERR_INT_MSK#

#define SL_SDIO_CRC_ERR_INT_MSK

BIT(5)

SL_SDIO_ABORT_INT_MSK#

#define SL_SDIO_ABORT_INT_MSK

BIT(6)

SL_SDIO_TOUT_INT_MSK#

#define SL_SDIO_TOUT_INT_MSK

BIT(7)

SL_SDIO_WR_INT_UNMSK#

#define SL_SDIO_WR_INT_UNMSK

BIT(0)

SL_SDIO_RD_INT_UNMSK#

#define SL_SDIO_RD_INT_UNMSK

BIT(1)

SL_SDIO_CSA_INT_UNMSK#

#define SL_SDIO_CSA_INT_UNMSK

BIT(2)

SL_SDIO_CMD52_INT_UNMSK#

#define SL_SDIO_CMD52_INT_UNMSK

BIT(3)

SL_SDIO_PWR_LEV_INT_UNMSK#

#define SL_SDIO_PWR_LEV_INT_UNMSK

BIT(4)

SL_SDIO_CRC_ERR_INT_UNMSK#

#define SL_SDIO_CRC_ERR_INT_UNMSK

BIT(5)

SL_SDIO_ABORT_INT_UNMSK#

#define SL_SDIO_ABORT_INT_UNMSK

BIT(6)

SL_SDIO_TOUT_INT_UNMSK#

#define SL_SDIO_TOUT_INT_UNMSK

BIT(7)
