Setting Up AWS Certificates#

AWS IoT Core provides secure, bi-directional communication for Internet-connected devices (such as sensors, actuators, embedded devices, wireless devices, and smart appliances) to connect to the AWS Cloud over MQTT. Refer to AWS IoT Documentation for more details.

Device Registration and Certificate Generation#

  1. Open AWS.

  2. Log in using your AWS credentials.

  3. Go to AWS IoT.

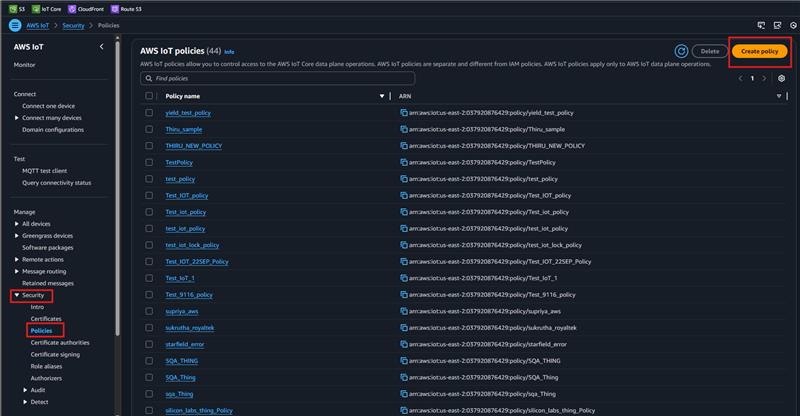

  4. In the left panel, go to Security > Policies and select Create Policy.

    Create Security PolicyCreate Security Policy

    • Enter the policy name (e.g., MATTER_AWS_POLICY). In the policy statements, select JSON and replace the contents with the JSON provided below:

       {
   "Version": "2012-10-17",
   "Statement": [
    {
      "Effect": "Allow",
      "Action": "*",
      "Resource": "*"
    }
  ]
 }

  5. Once done, select Create.

  6. Create a client CSR certificate and a device key by following the steps in OpenSSL Certificate Creation.

  7. Complete the following steps to create a thing and generate certificates for your Matter application to use in the MatterAwsNvmCert.cpp source file:

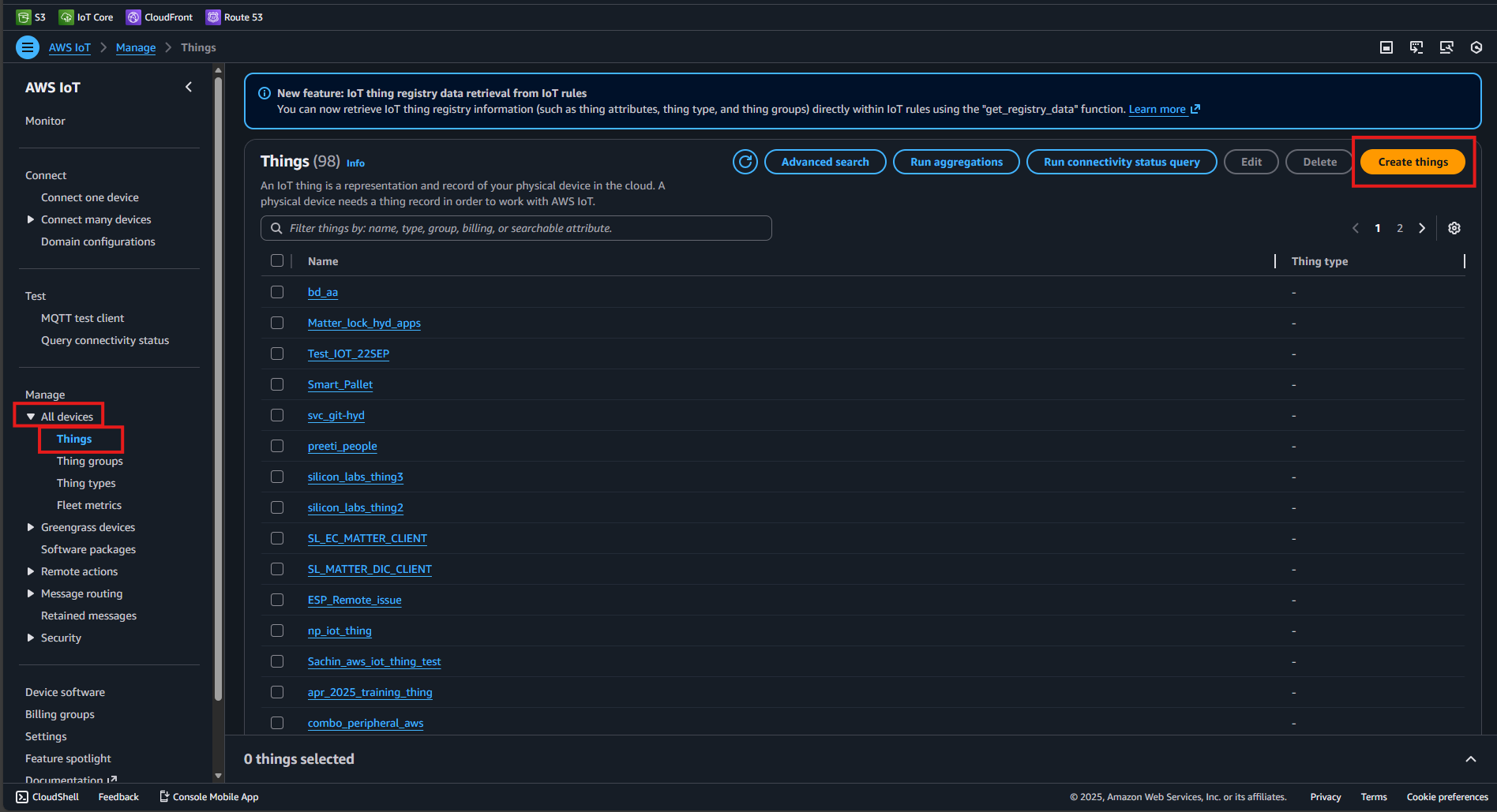

    • Go to All Devices > Things and select Create Things.Create ThingCreate Thing

    • Select Create Single Thing and click Next.

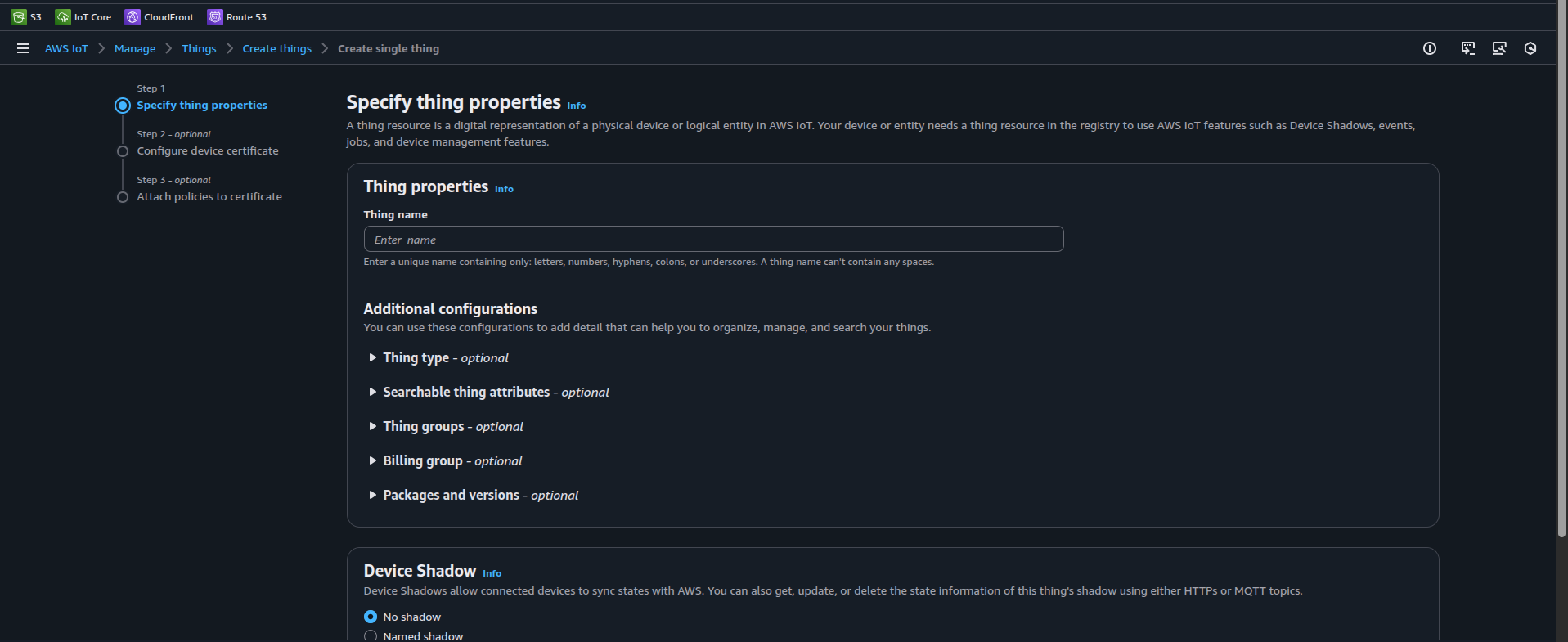

    • Under Specific thing properties > Thing properties, specify the thing name (this will be the MATTER_AWS_CLIENT_ID in MatterAwsConfig.h), then click Next. Add Thing NameAdd Thing Name

    • Under Configure device certificate > Device Certificate, select Upload CSR.

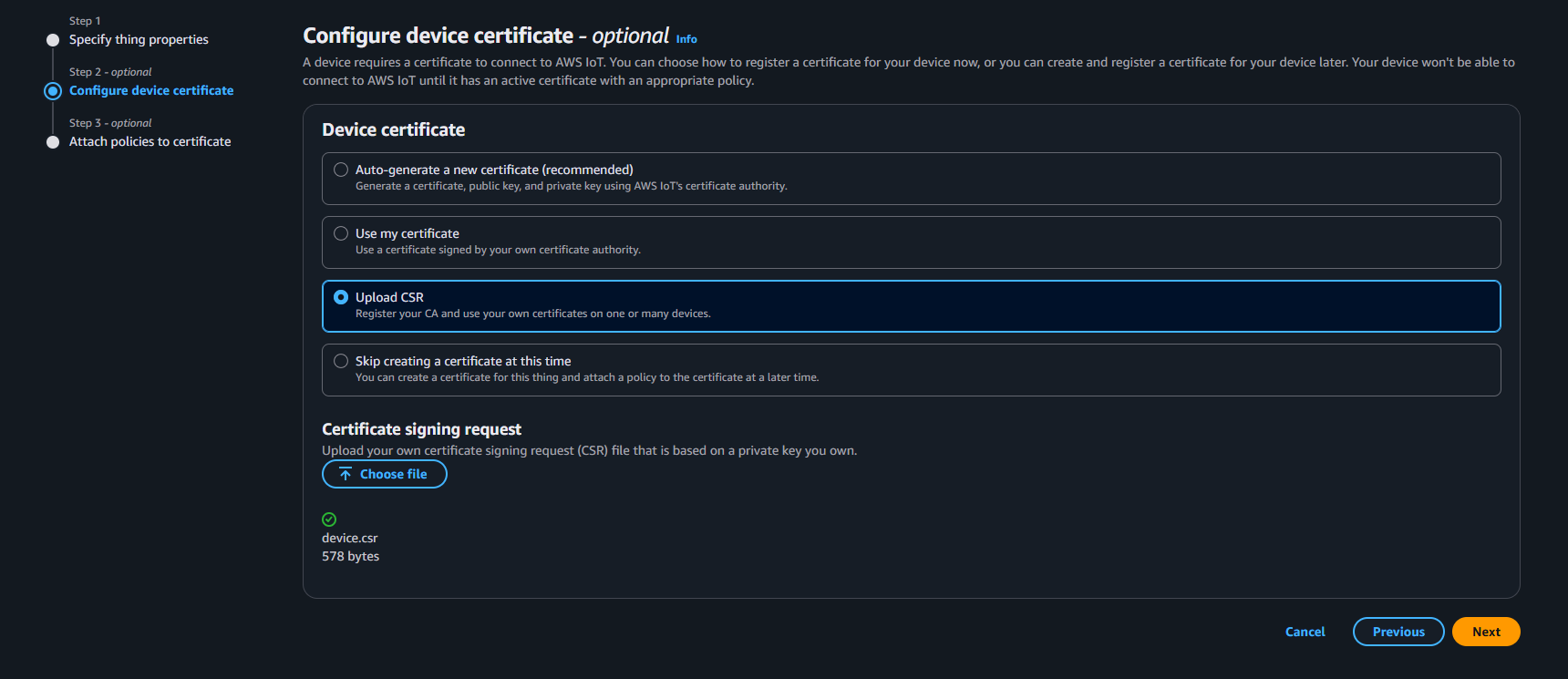

    • In Certificate signing request > Choose file (Choose Client CSR generated by Openssl Certificate Creation in Step 6. e.g., device.csr). Click Next. Upload CSRUpload CSR

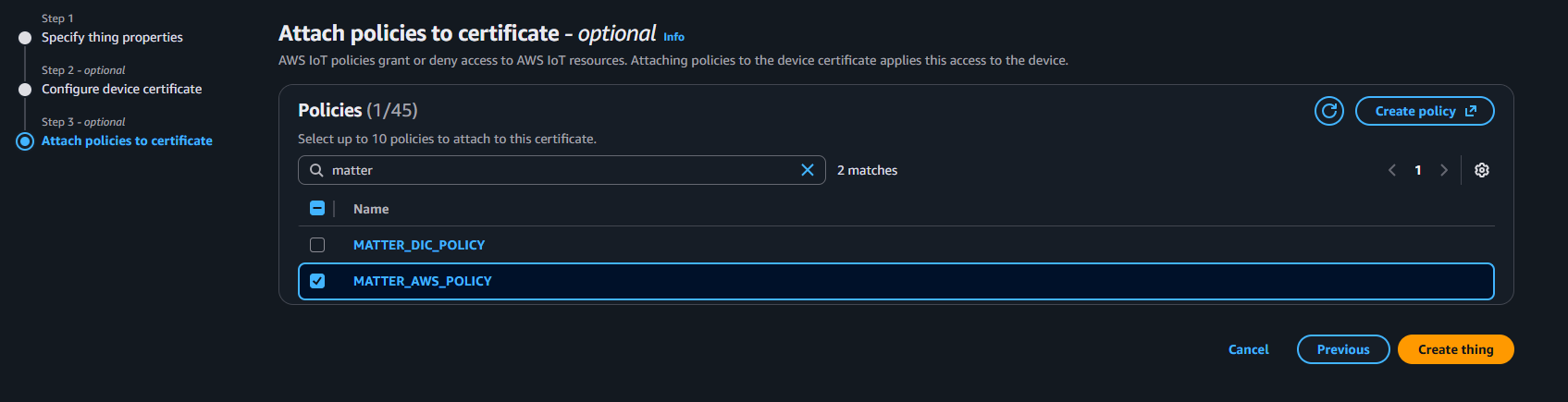

    • Select the policy (e.g., MATTER_AWS_POLICY) created at Step 4. Attach PolicyAttach Policy

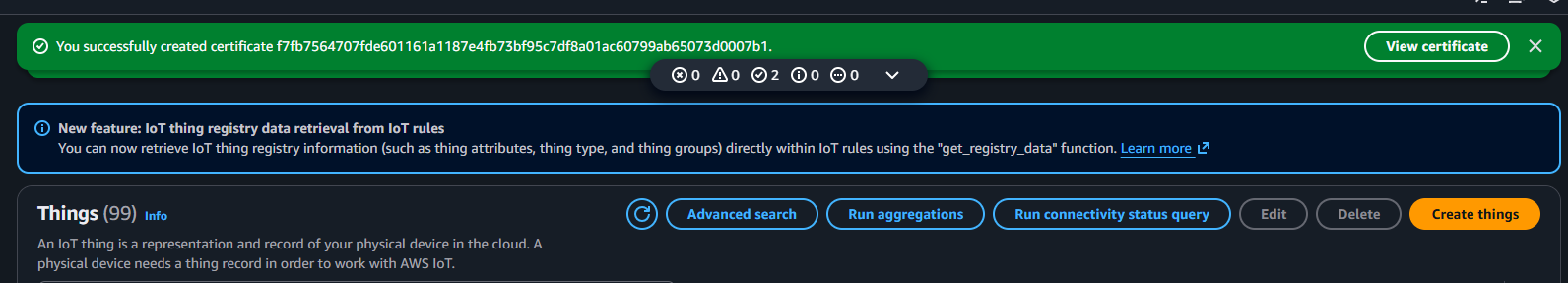

    • Once the thing is successfully created, click View certificate. View CertificateView Certificate

    • Next:

      • Activate the certificate.

      • Download the certificate.Activate and Download CertificateActivate and Download Certificate

  8. Copy the contents of AWS_CA CERT (We are using Amazon Root CA3) and add it as CA certificate in examples/platform/silabs/matter_aws/matter_aws_interface/include/MatterAwsNvmCert.cpp. All the certificate should be added in below format:

char ca_certificate[]     = {
 "-----BEGIN CERTIFICATE-----\r\n"
 "MIIBtjCCAVugAwIBAgITBmyf1XSXNmY/Owua2eiedgPySjAKBggqhkjOPQQDAjA5\r\n"
 "MQswCQYDVQQGEwJVUzEPMA0GA1UEChMGQW1hem9uMRkwFwYDVQQDExBBbWF6b24g\r\n"
 "Um9vdCBDQSAzMB4XDTE1MDUyNjAwMDAwMFoXDTQwMDUyNjAwMDAwMFowOTELMAkG\r\n"
 "A1UEBhMCVVMxDzANBgNVBAoTBkFtYXpvbjEZMBcGA1UEAxMQQW1hem9uIFJvb3Qg\r\n"
 "Q0EgMzBZMBMGByqGSM49AgEGCCqGSM49AwEHA0IABCmXp8ZBf8ANm+gBG1bG8lKl\r\n"
 "ui2yEujSLtf6ycXYqm0fc4E7O5hrOXwzpcVOho6AF2hiRVd9RFgdszflZwjrZt6j\r\n"
 "QjBAMA8GA1UdEwEB/wQFMAMBAf8wDgYDVR0PAQH/BAQDAgGGMB0GA1UdDgQWBBSr\r\n"
 "ttvXBp43rDCGB5Fwx5zEGbF4wDAKBggqhkjOPQQDAgNJADBGAiEA4IWSoxe3jfkr\r\n"
 "BqWTrBqYaGFy+uGh0PsceGCmQ5nFuMQCIQCcAu/xlJyzlvnrxir4tiz+OpAUFteM\r\n"
 "YyRIHN8wfdVoOw==\r\n"
 "-----END CERTIFICATE-----\r\n"
 };

  • In MatterAwsNvmCert.cpp file are the following:

    • char ca_certificate[] - Fill it with AWS_CA CERT (mentioned above).

    • char device_certificate[] - Fill it with Device Certificate downloaded from AWS in Step 7.

    • char device_key[] - Fill it with Device Key generated in Step 6.

  1. Repeat Step 6 to create a new thing for use in MQTT Explorer, using the certificate generated for MQTT Explorer during OpenSLL certificate creation (e.g., explorer.csr). Create a .pem file from the CA certificate in Step 8 and use it as the server certificate in MQTT Explorer.

Note: The thing name must be unique as it will be used as the client ID.
