Deep Sleep State Operational Mode#

The SiWx917’s Deep Sleep state Operational Mode is called Ultra Low Power Mode without RAM Retention

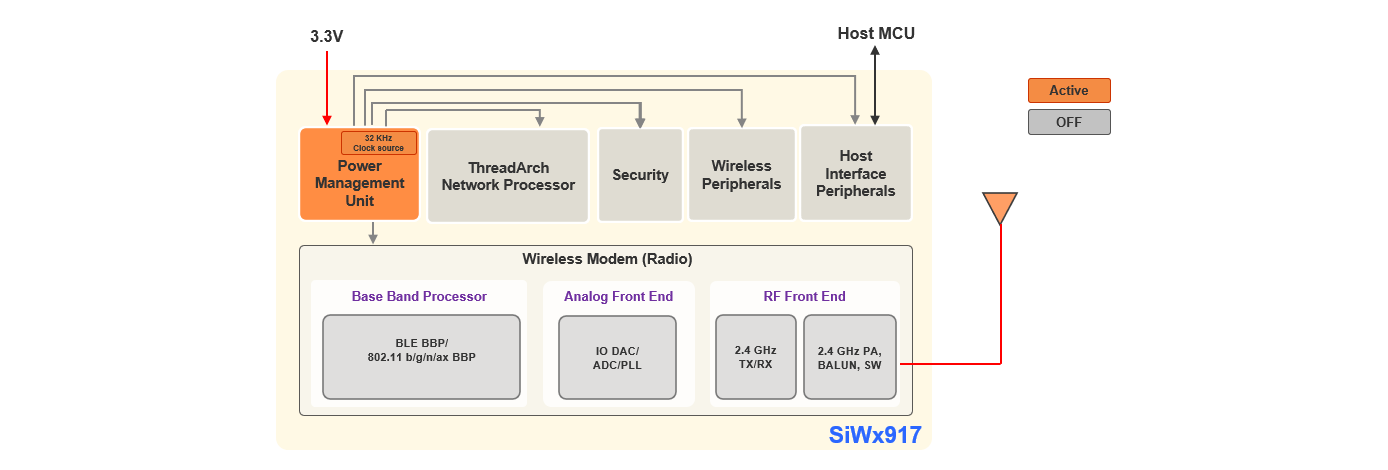

Ultra Low Power Mode without RAM RetentionUltra Low Power Mode without RAM Retention

  • This mode differs from ULP Mode with RAM Retention with respect to SRAM's retention.

  • The SRAM contents and current state are not retained.

  • In this mode, the SiWx917 consumes the lowest possible current (~2.5 uA).
