How to Use Wi-SUN FAN 1.0 PHY#

This section applies both to the EFR32FG25 and the EFR32MG12. It assumes that you have downloaded Simplicity Studio 5 and the Gecko SDK (GSDK) and are familiar with creating a project. If not, see the Getting Started section in the Simplicity Studio v5 User’s Guide.

Set Up the Wi-SUN FAN 1.0 Configuration#

Configure the Radio by a Radio Configurator-Generated Config#

Create a project based on the RAILTest example. Once a new RAILtest project is created, the Radio Configurator opens automatically.

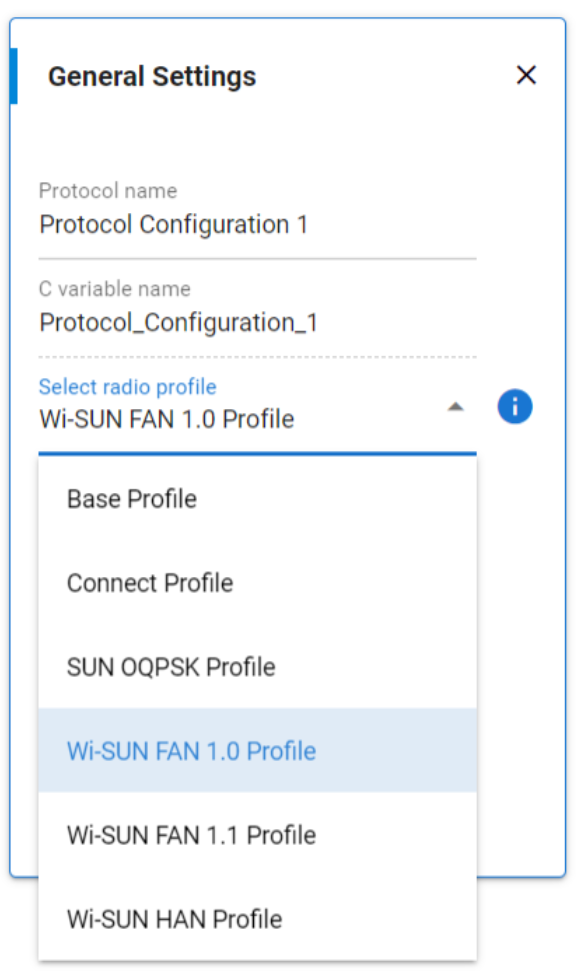

  1. Select the Wi-SUN FAN 1.0 Profile.

    Radio Configurator Profile SelectionRadio Configurator Profile Selection

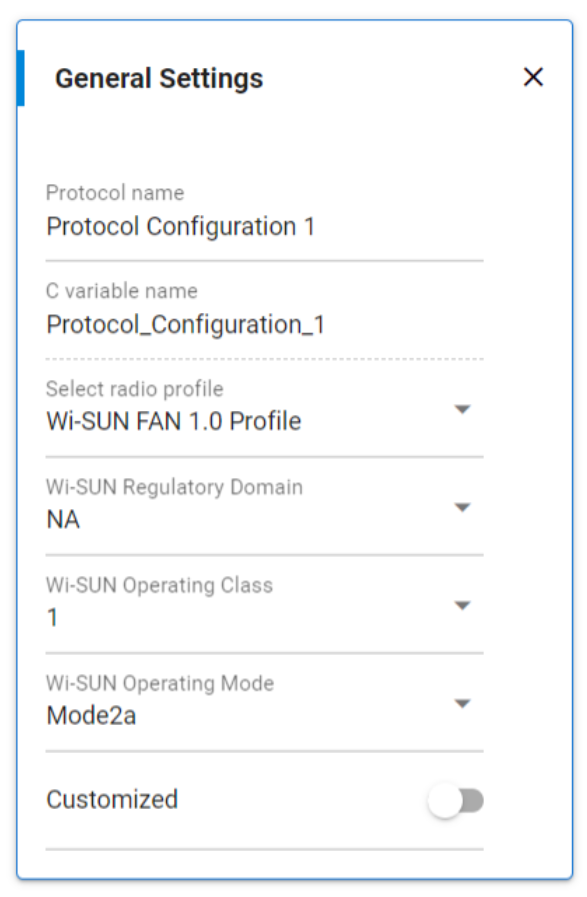

  2. Radio Configurator provides all Wi-SUN FSK PHYs (defined in Wi-SUN PHY specification 2V00) as part of the Wi-SUN FAN 1.0 profile. Select the PHY based on the applicable Wi-SUN Regulatory Domain (EU, NA, JP, CN, …) and Wi-SUN Operating class and Modes according to Wi-SUN FAN 1.0. The channel parameters are set automatically.

    Radio Configurator Select the PHYRadio Configurator Select the PHY

RF Frequency Planning in Multi-PHY Radio Configuration for Different Regions#

If a Multi-PHY radio includes PHYs for different bands, you may need to select an RF Frequency planning band (see RF Frequency Planning).
