Example Projects & Demos#

On the Example projects & demos page, a library of resources (demos, sample projects, and sample solutions) is available to help you create a basis for your project. You can configure the project to meet your needs after creating it.

Follow the steps below to narrow your search for sample projects and finish creating your project.

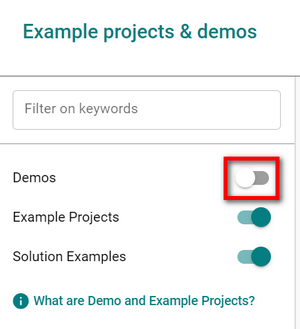

1. In the left column of the Example projects & demos page, click the toggle to the right of Demos to remove them from the resources list. The toggle color changes from green to white.

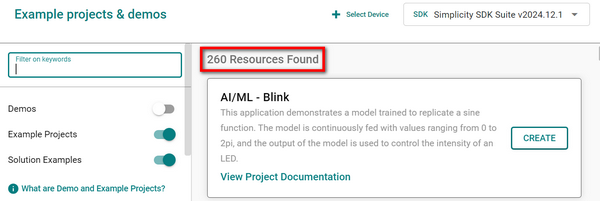

   The number of resources found displays on the right side. In the example below, 260 resources (example projects and solutions) were found.

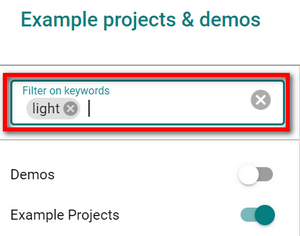

2. In the Filter on keywords field, enter one or more keywords to refine your search.

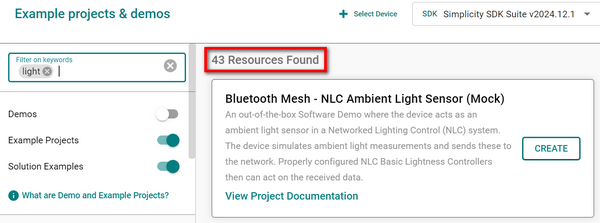

   In the example below, the number of resources were reduced from 260 to 43.



3. Several categories are listed below the resource types with checkboxes at the left of each item in the categories. Check the boxes on the left of each item to narrow your resource search results further.

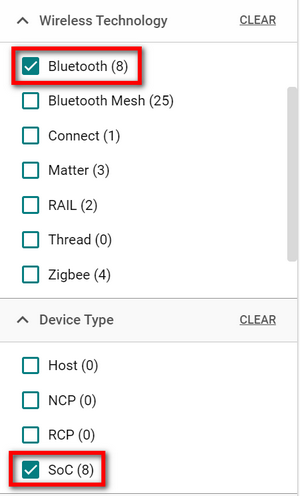

   In the example below, Bluetooth is selected in the Wireless Technology category and SoC is selected in the Device Type category. The number of resources for each item displays in parentheses to the right of each item name.

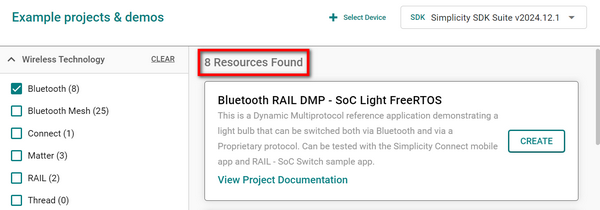

   In the example below, this additional filtering reduced the number of resources from 43 to 8.

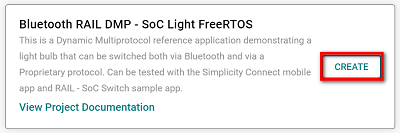

4. For creating a project with a connected device, review the search results and then click the CREATE button in the tile for the sample project that you want to use to create your project.

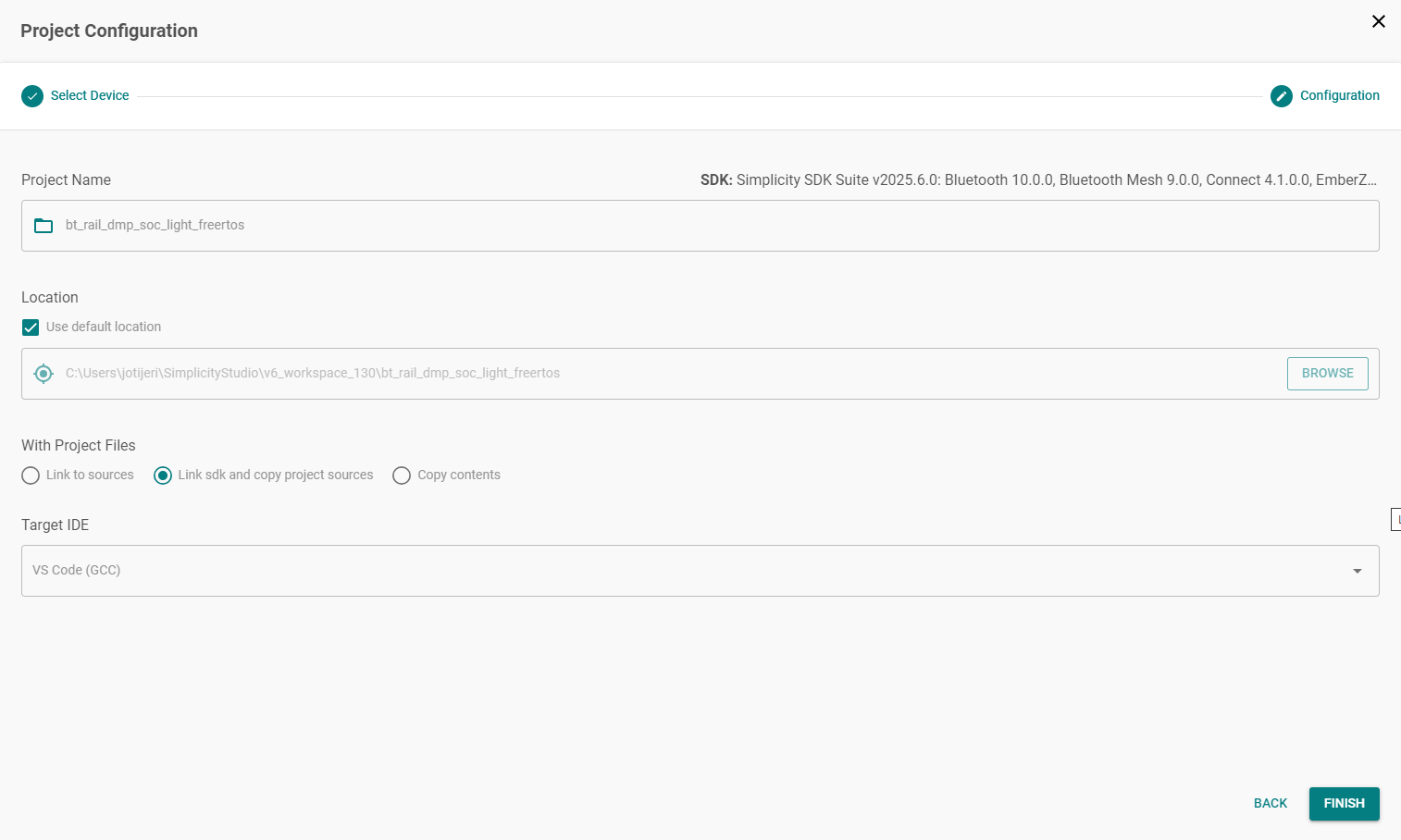

   The Project Configuration window displays.

   Click FINISH to generate the project.
