Custom Certificates#

CPMS allows you to customize the device identity certificate chain. Certificates use the X.509 format and must conform to RFC 3280. For an example of a Silicon Labs device certificate, see Authenticating Silicon Labs Devices Using Device Certificates.

Certificate Storage on Series 2 and Series 3 Devices#

Certificate storage locations vary by device security type.

Device Security Level

Certificate Location

Customization Support

Availability

Series 2 Secure Vault High (HSE)

Both certificates stored in SE OTP

Device certificate can be customized

Programmed by default

Series 2 Secure Vault Mid (VSE and HSE)

Both certificates injected into device flash (user-specified address)

Custom certificates supported through CPMS

Available through CPMS certificate injection

Series 3 Secure Vault (SixG301)

Both certificates injected into device flash (user-specified address)

Custom device certificates supported through CPMS

Available through CPMS certificate injection

Note: For devices that use flash-based certificate storage, you specify the storage address during CPMS configuration.

Currently, CPMS supports customization of the following device certificate fields:

  1. Common Name: User-defined name of up to 30 characters. The value is appended with the device 64-bit EUI (for example, EUI:xxxxxxxxxxxxxxxx) and ends with either S:SE0 ID:MCU or S:FL0 ID:MCU, depending on the device security type.

  2. Organization: User-defined company name of up to 64 characters.

  3. Country: Valid two-letter country code (for example, US).

  4. Organizational Unit: User-defined value of up to 64 characters.

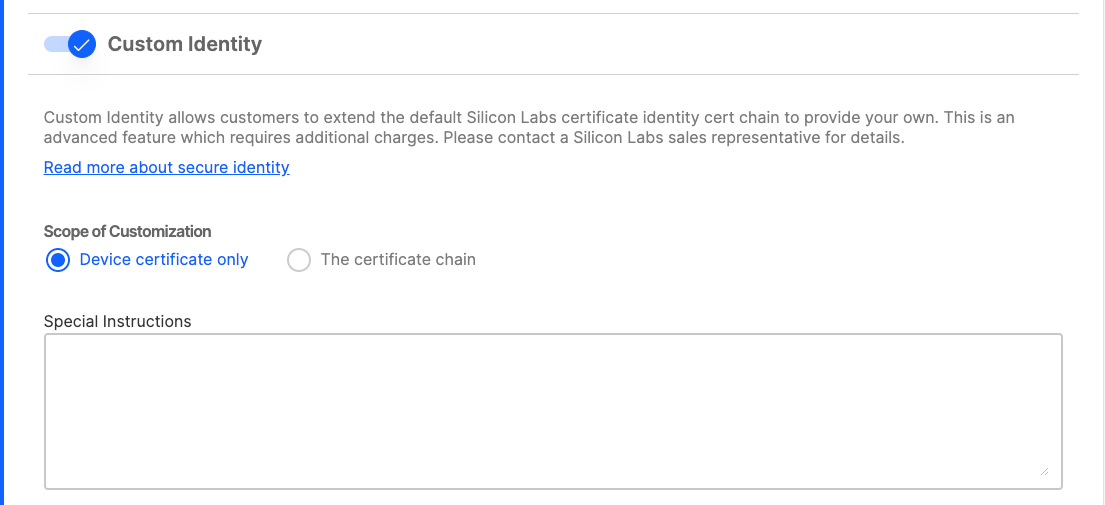

If you require additional certificate customizations, specify them in the Special Instructions section of CPMS. CPMS Custom Identity screenshotCPMS Custom Identity screenshot
