Deep Sleep State Operational Mode#

The SiWx917 Deep Sleep state is called Ultra Low Power Mode without RAM Retention. In this mode, SRAM contents and current state are not retained. The PMU controls the remaining sections of the chip.

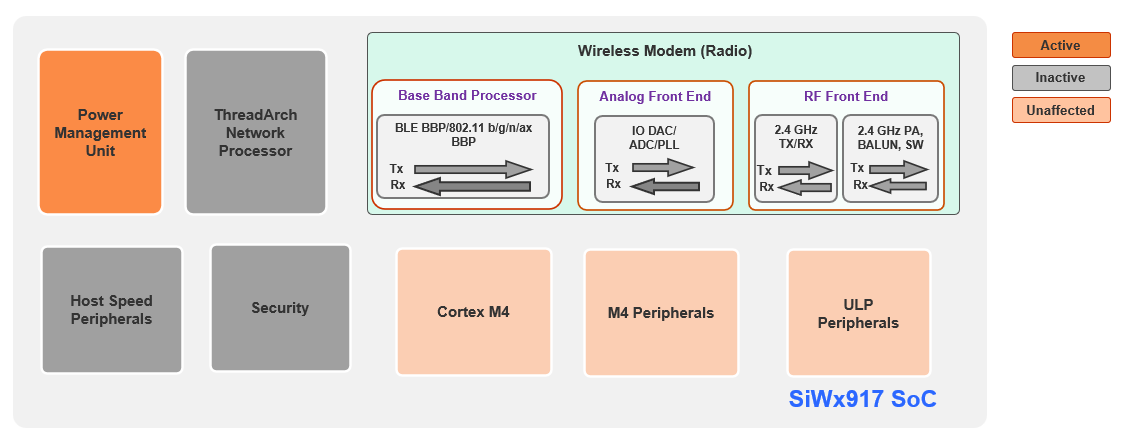

SiWx917 SOC Ultra Low Power Mode without RAM RetentionSiWx917 SOC Ultra Low Power Mode without RAM Retention

SiWx917 NCP Ultra Low Power Mode without RAM RetentionSiWx917 NCP Ultra Low Power Mode without RAM Retention
