General Settings#

Use General Settings to configure the following options:

  • Wireless Network Name (SSID)

  • Region Code

  • Channel

  • Bandwidth

  • Wi-Fi Band

  • Transmission Mode

Wireless Network Name (SSID)#

Service Set Identifier (SSID) is a unique identifier applied to the access point and the wireless client, which allows them to associate. The Password can be set in the Security subpage.

Region Code#

The following region codes are available:

  • Factory Default Region

  • World Wide Domain

  • European Union

  • Japan

  • Korea

  • China

  • United States

Channel#

The supported channel range is 0-13.

Auto mode is also supported.

Bandwidth#

The only supported bandwidth is 20 MHz.

Wi-Fi Band#

The only supported Wi-Fi band is 2.4 GHz.

Transmission Mode#

The following transmission modes are supported:

  • 802.11b only

  • 802.11g only

  • 802.11n only

  • 802.11ax only

Auto mode is also supported.

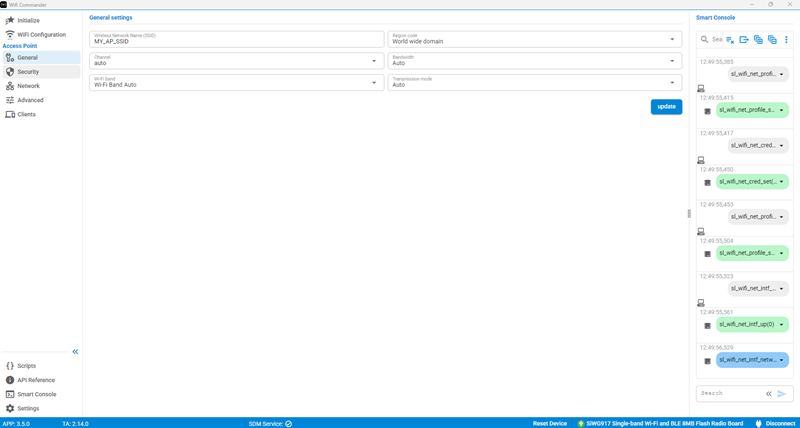

General Settings PageGeneral Settings Page
